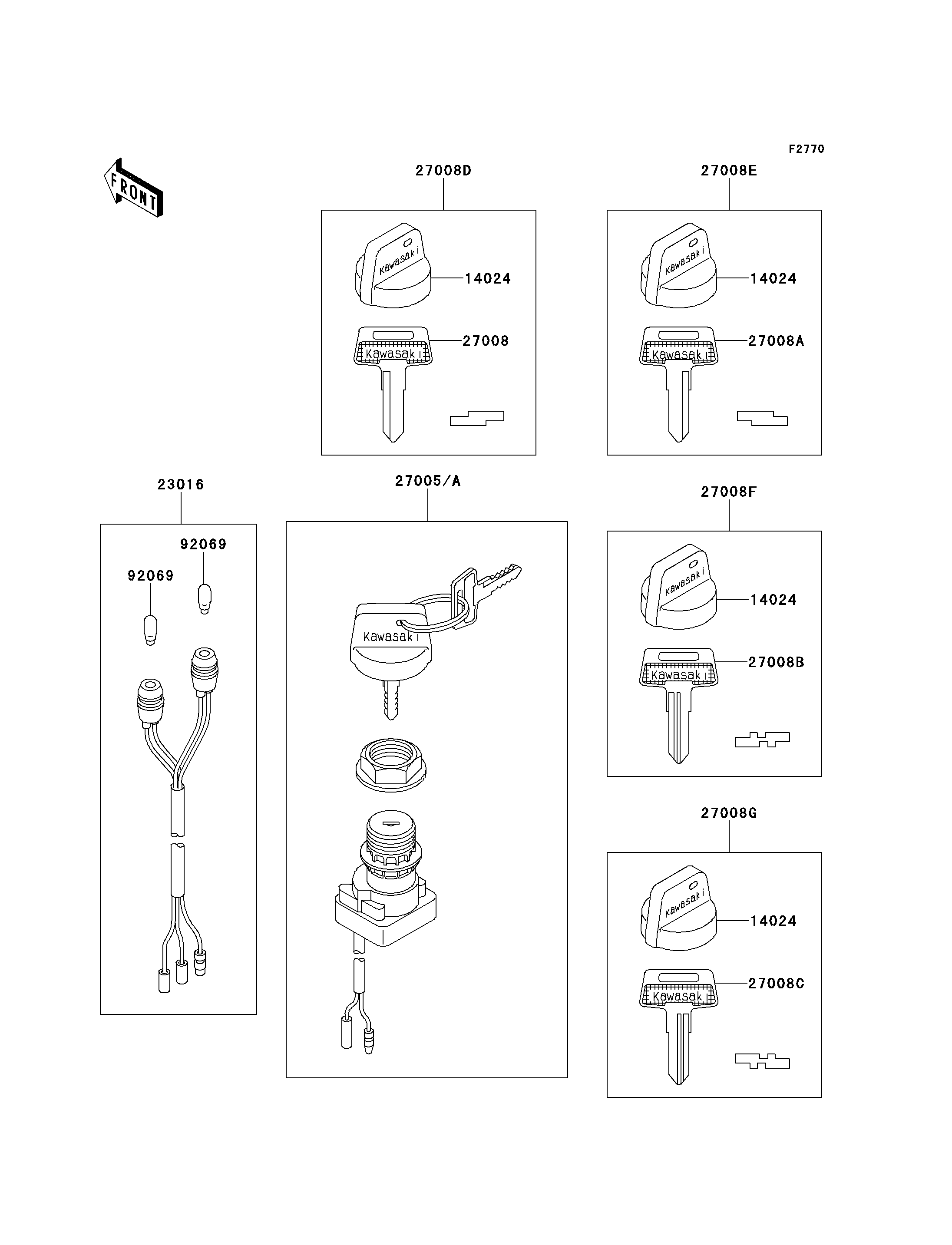

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,KEY | 14024 | 14024-1551 | 4 | (OPTION) | |
| LAMP-ASSY,NEUTRAL&REVERSE | 23016 | 23016-1083 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-1159 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1041 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008A | 27008-1042 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008B | 27008-1043 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008C | 27008-1044 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008D | 27008-1132 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008E | 27008-1133 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008F | 27008-1134 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008G | 27008-1135 | 1 | (OPTION) | |
| BULB,12V3W T-7 | 92069 | 92069-1020 | 2 |
