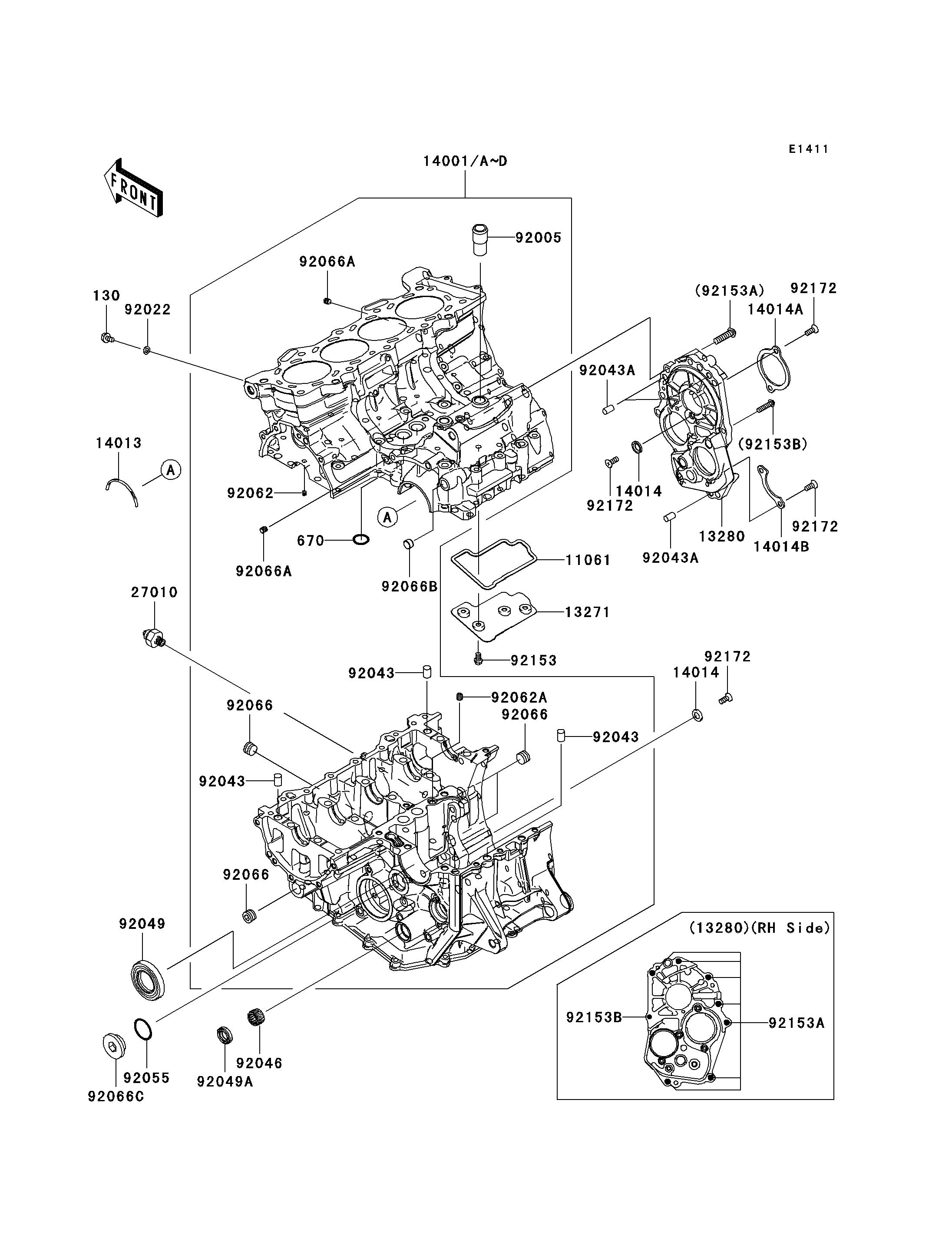

2008 Ninja® ZX™-6R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
670
11061
13271
13280
14001D
14013
14014
14014
14014A
14014B
27010
92005
92022
92043
92043
92043
92043A
92043A
92046
92049
92049A
92055
92062
92062A
92066
92066
92066
92066A
92066A
92066B
92066C
92153
92153A
92153B
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BD0610 1
O RING 670 670D2018 2
GASKET,BREATHER ROOM 11061 11061-0291 1
PLATE,BREATHER ROOM 13271 13271-0795 1
HOLDER,TRANSMISSION 13280 13280-0199 1
SET-CRANKCASE 14001D 14001-0130 1
RING-POSITION 14013 14013-1051 1
PLATE-POSITION,9.5X17X2.3 14014 14014-0019 2
PLATE-POSITION 14014A 14014-0029 1
PLATE-POSITION 14014B 14014-0030 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
FITTING,BREATHER 92005 92005-1238 1
WASHER,6.2X11X1 92022 92022-304 1
PIN,10X14 92043 92043-1506 3
PIN,8X14 92043A 92043-1567 3
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,TC32578 92049 92049-1474 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O 92055 92055-091 1
NOZZLE 92062 92062-0004 4
NOZZLE 92062A 92062-1056 1
PLUG,PT3/8X10 92066 92066-0003 4
PLUG,OIL LINE,7.2X8 92066A 92066-1012 2
PLUG 92066B 92066-1110 1
PLUG,25X8 92066C 92066-1161 1
BOLT,6X10 92153 92153-0381 4
BOLT,TORX,8X30 92153A 92153-1639 7
BOLT,TORX,6X25 92153B 92153-1640 1
SCREW,6X16 92172 92172-0090 6
