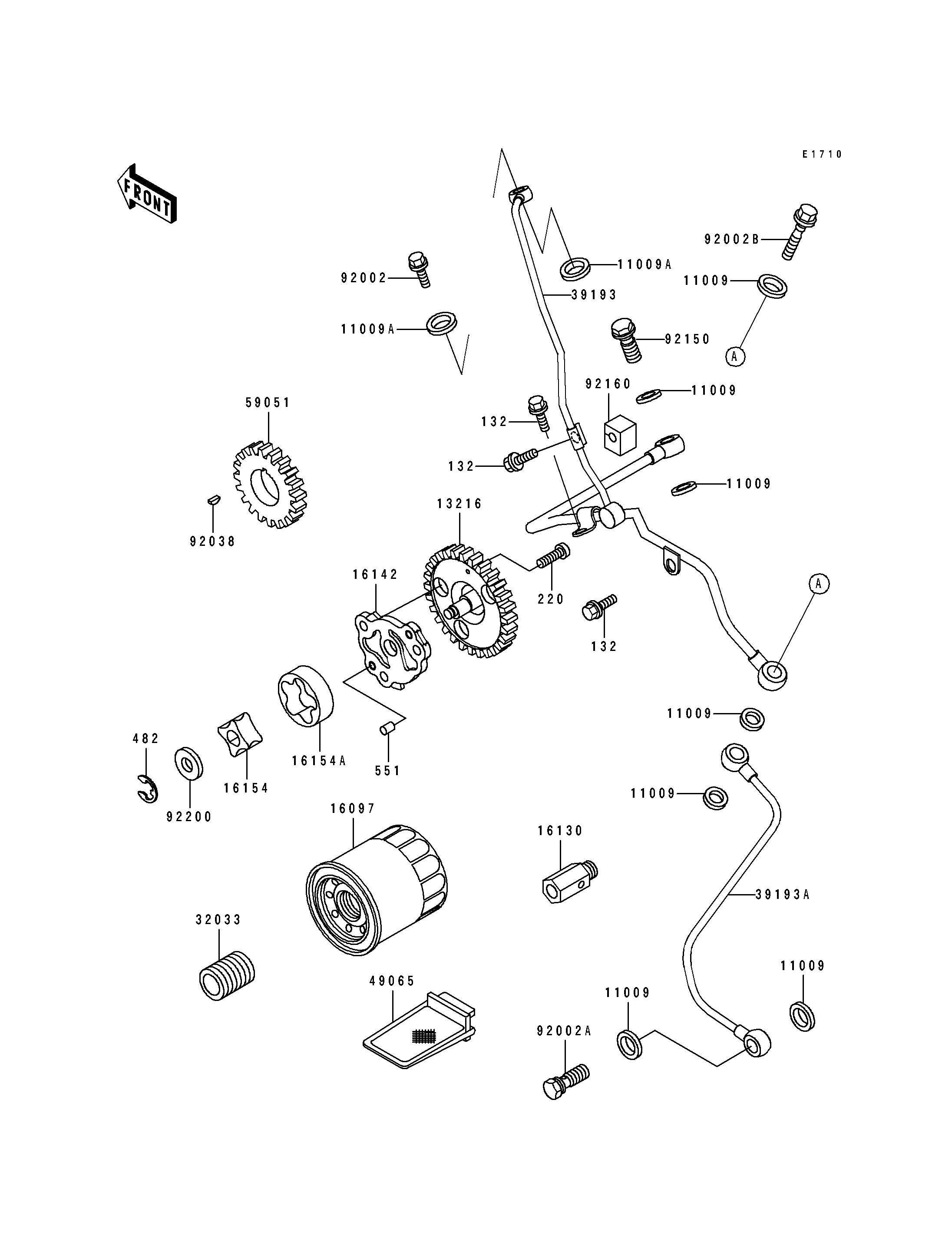

1995 Bayou 400 4X4 - Oil Pump/Oil Filter
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 7 | ||
GASKET,OIL PIPE,8.2X14X1.0 | 11009A | 11009-1344 | 2 | ||
GEAR-COMP,52T | 13216 | 13216-1133 | 1 | ||
FILTER-ASSY-OIL | 16097 | 16097-1063 | 1 | ||
VALVE-ASSY-RELIEF | 16130 | 16130-1001 | 1 | ||
COVER-PUMP | 16142 | 16142-1118 | 1 | ||
ROTOR-PUMP,INNER | 16154 | 16154-2059 | 1 | ||
ROTOR-PUMP,OUTER | 16154A | 16154-2060 | 1 | ||
PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
PIPE-OIL,HEAD-CASE | 39193 | 39193-1008 | 1 | ||
PIPE-OIL,PARTICULAR | 39193A | 39193-1009 | 1 | ||
FILTER-OIL | 49065 | 49065-1070 | 1 | ||
GEAR-SPUR,PUMP,30T | 59051 | 59051-1255 | 1 | ||
BOLT,BANJO,8X20 | 92002 | 92002-1429 | 1 | ||
BOLT,OIL,L=23 | 92002A | 92002-1888 | 1 | ||
BOLT,OIL,L=37 | 92002B | 92002-1909 | 1 | ||
KEY | 92038 | 92038-1056 | 1 | ||
BOLT,BANJO,10X23 | 92150 | 92150-1123 | 1 | ||
DAMPER | 92160 | 92160-1522 | 1 | ||
WASHER,7.7X13X1.0 | 92200 | 92200-1107 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0612 | 3 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 3 | ||
CIRCLIP-TYPE-E,6MM | 482 | 482J6000 | 1 | ||
PIN-DOWEL,6X8 | 551 | 551A0608 | 2 |
GASKET,10X14.5X1.5 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
GASKET,OIL PIPE,8.2X14X1.0 | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GEAR-COMP,52T | |
REF # | 13216 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-ASSY-OIL | |
REF # | 16097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-RELIEF | |
REF # | 16130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR-PUMP,INNER | |
REF # | 16154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR-PUMP,OUTER | |
REF # | 16154A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,OIL FILTER | |
REF # | 32033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL,HEAD-CASE | |
REF # | 39193 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL,PARTICULAR | |
REF # | 39193A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-OIL | |
REF # | 49065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,PUMP,30T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,8X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=37 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY | |
REF # | 92038 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,10X23 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,7.7X13X1.0 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E,6MM | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL,6X8 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
