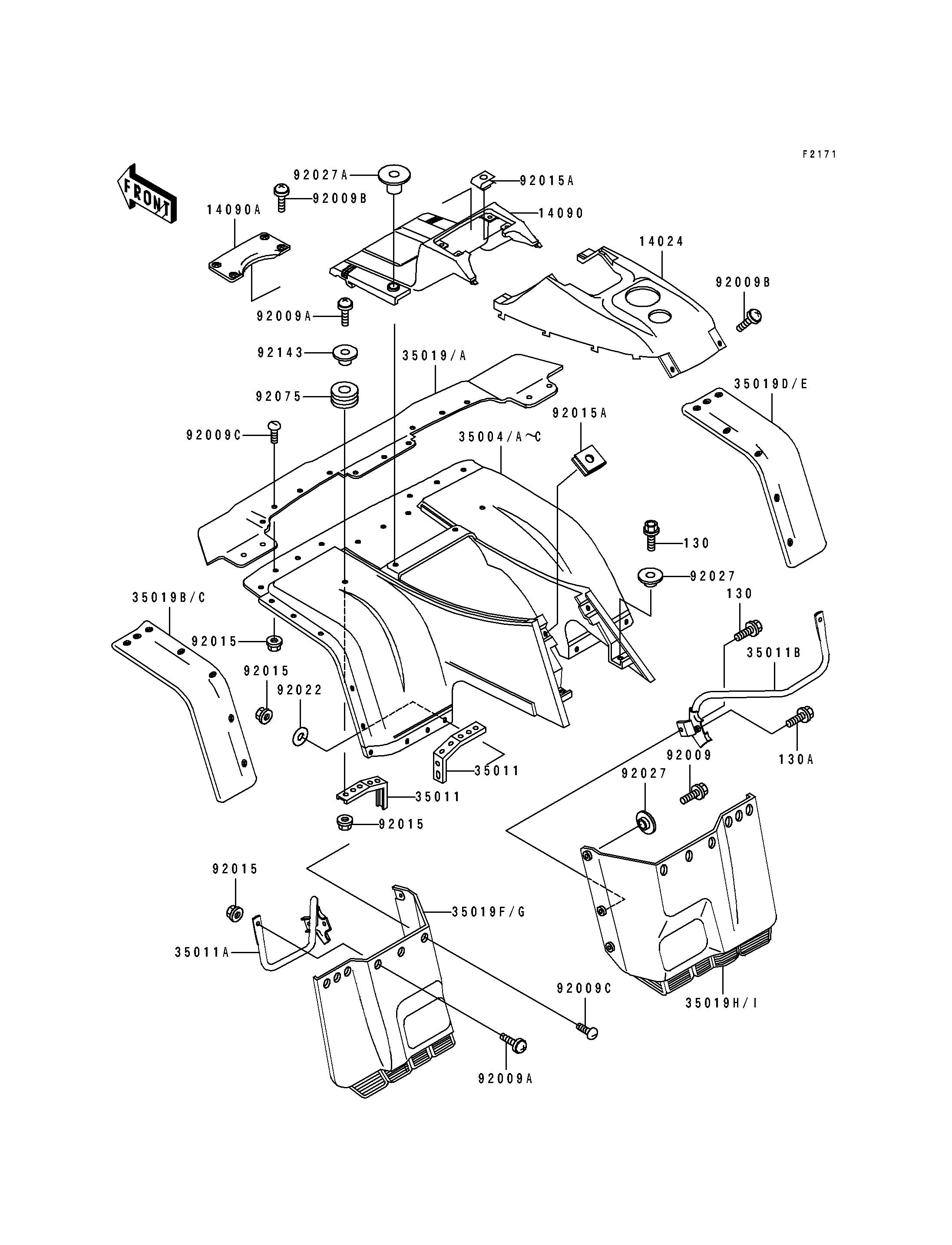

1994 Bayou 400 4X4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRONT FENDER,RR,S.GRAY 14024 14024-1657-RG 1
COVER,FRONT FENDER,FR,S.GRAY 14090 14090-1143-RG 1
COVER,FRONT CAP,S.GRAY 14090A 14090-1156-RG 1
FENDER-FRONT,BLUE 35004 35004-1293-BG 1
FENDER-FRONT,M.B.GRAY 35004A 35004-1293-RF 1
STAY,FRONT FENDER,UPP 35011 35011-1420 2
STAY,FR FENDER,LH,LWR FLAP 35011A 35011-1600 1
STAY,FR FENDER,RH,LWR FLAP 35011B 35011-1601 1
FLAP,FR,S.GRAY 35019 35019-1291-RG 1
FLAP,FR,SIDE,LH,S.GRAY 35019B 35019-1292-RG 1
FLAP,FR,SIDE,RH,S.GRAY 35019D 35019-1293-RG 1
FLAP,FR,LWR,LH,S.GRAY 35019F 35019-1294-RG 1
FLAP,FR,LWR,RH,S.GRAY 35019H 35019-1295-RG 1
SCREW 92009 92009-1166 2
SCREW,6X22,BLACK 92009A 92009-1256 10
SCREW,6X14 92009B 92009-1288 6
SCREW,6X16 92009C 92009-1621 29
NUT,LOCK,FLANGED,6MM 92015 92015-1675 39
NUT,CLAMP,6MM 92015A 92015-1678 6
WASHER,6.5X16X1.0 92022 92022-1093 37
COLLAR,L=4.7 92027 92027-122 8
COLLAR 92027A 92027-1929 2
DAMPER,CASE 92075 92075-222 2
COLLAR,L=9.6 92143 92143-1016 2
BOLT-FLANGED,6X16 130 130C0616 2
BOLT-FLANGED,6X18 130A 130J0618 8
