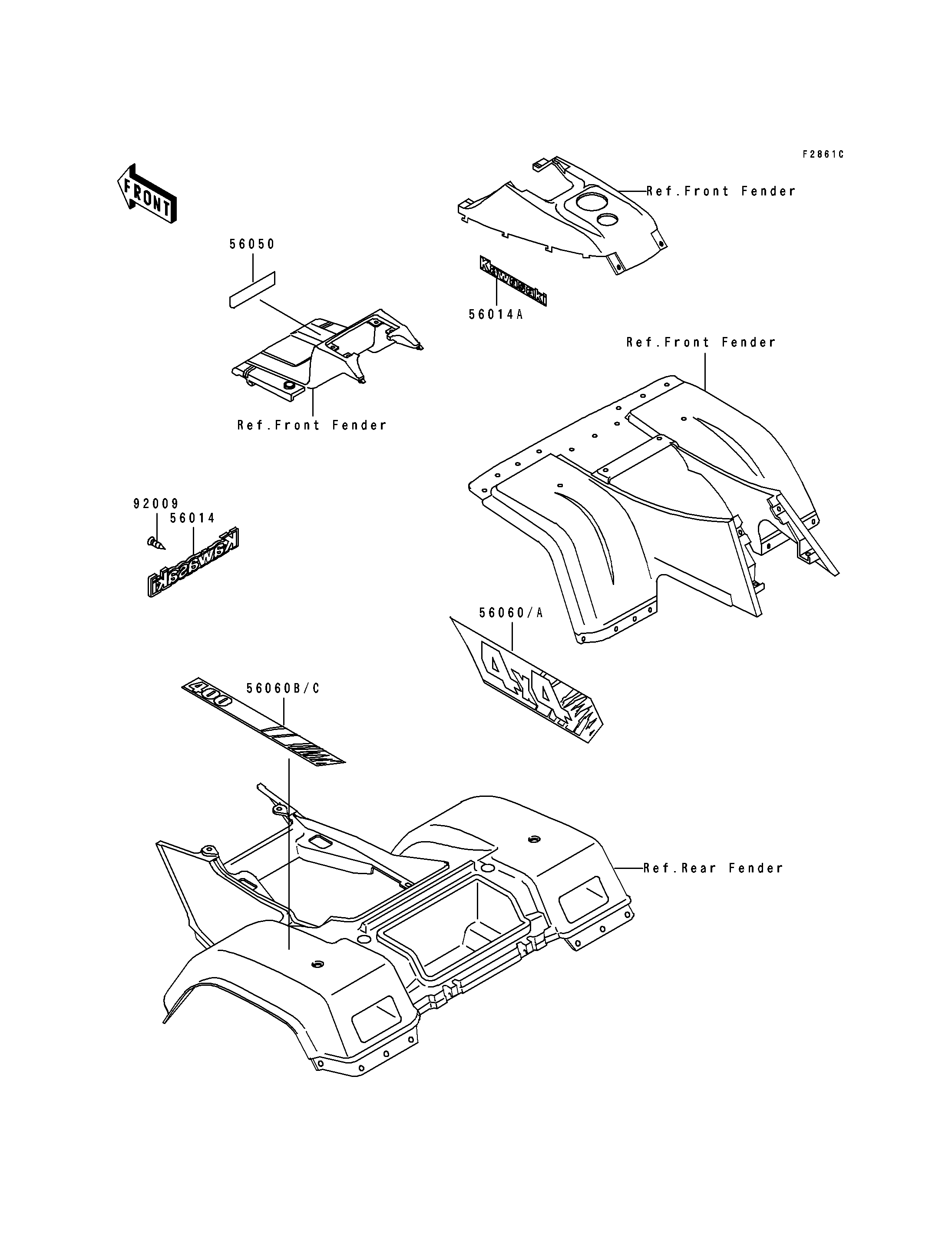

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI 56014 56014-1278 1
EMBLEM,KAWASAKI 56014A 56014-1279 2
MARK,BAYOU 56050 56050-1861 1
PATTERN,FR FENDER,LH 56060 56060-1665 1
PATTERN,FR FENDER,RH 56060A 56060-1666 1
PATTERN,RR FENDER,LH 56060B 56060-1667 1
PATTERN,RR FENDER,RH 56060C 56060-1668 1
SCREW,TAPPING,3X10 92009 92009-1680 2
