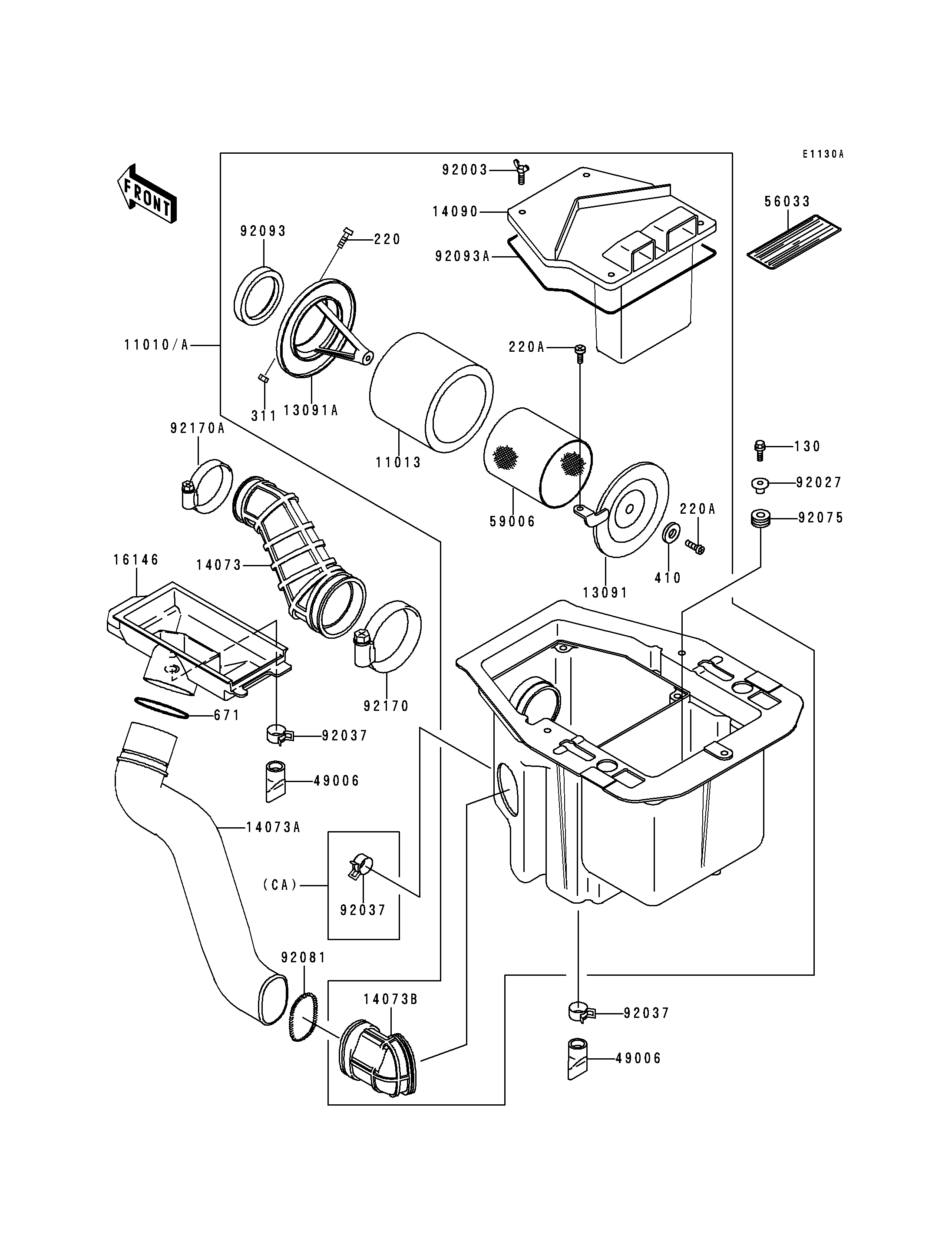

1999 Bayou 400 4X4 - Air Cleaner(KLF400-B7)

DOWNLOAD PDF
SELECT A NEW PART
130
220
220A
220A
311
410
671
11013
13091
13091A
14073
14073A
14073B
14090
16146
49006
49006
56033
59006
92003
92027
92075
92081
92093
92093A
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,6X18 130 130B0618 2
SCREW-PAN-CROS 220 220B0516 1
SCREW-PAN-CROS,6X14 220A 220B0614 2
NUT-HEX 311 311B0500 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
O RING 671 671B2550 1
ELEMENT-AIR FILTER 11013 11013-1277 1
HOLDER,ELEMENT 13091 13091-1488 1
HOLDER,AIR FILTER ELEMENT 13091A 13091-1565 2
DUCT,AIR FILTER 14073 14073-1497 1
DUCT,SNORKEL 14073A 14073-1638 1
DUCT,AIR FILTER 14073B 14073-1666 1
COVER,AIR FILTER 14090 14090-1637 1
COVER-ASSY 16146 16146-1179 1
BOOT 49006 49006-1292 2
LABEL-MANUAL,MAINTENANCE 56033 56033-1079 1
ARRESTER-FLAME 59006 59006-1052 1
BOLT,WING 92003 92003-199 4
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
DAMPER,CASE 92075 92075-222 2
SPRING,DUCT 92081 92081-1638 1
SEAL,DUST 92093 92093-1322 1
SEAL,AIR FILTER CASE 92093A 92093-1331 1
CLAMP 92170 92170-1675 1
CLAMP 92170A 92170-1679 1
FILTER-ASSY-AIR 11010 11010-1656 1
FILTER-ASSY-AIR 11010A 11010-1657 1
CLAMP 92037 92037-1860 2
CLAMP 92037 92037-1860 3
