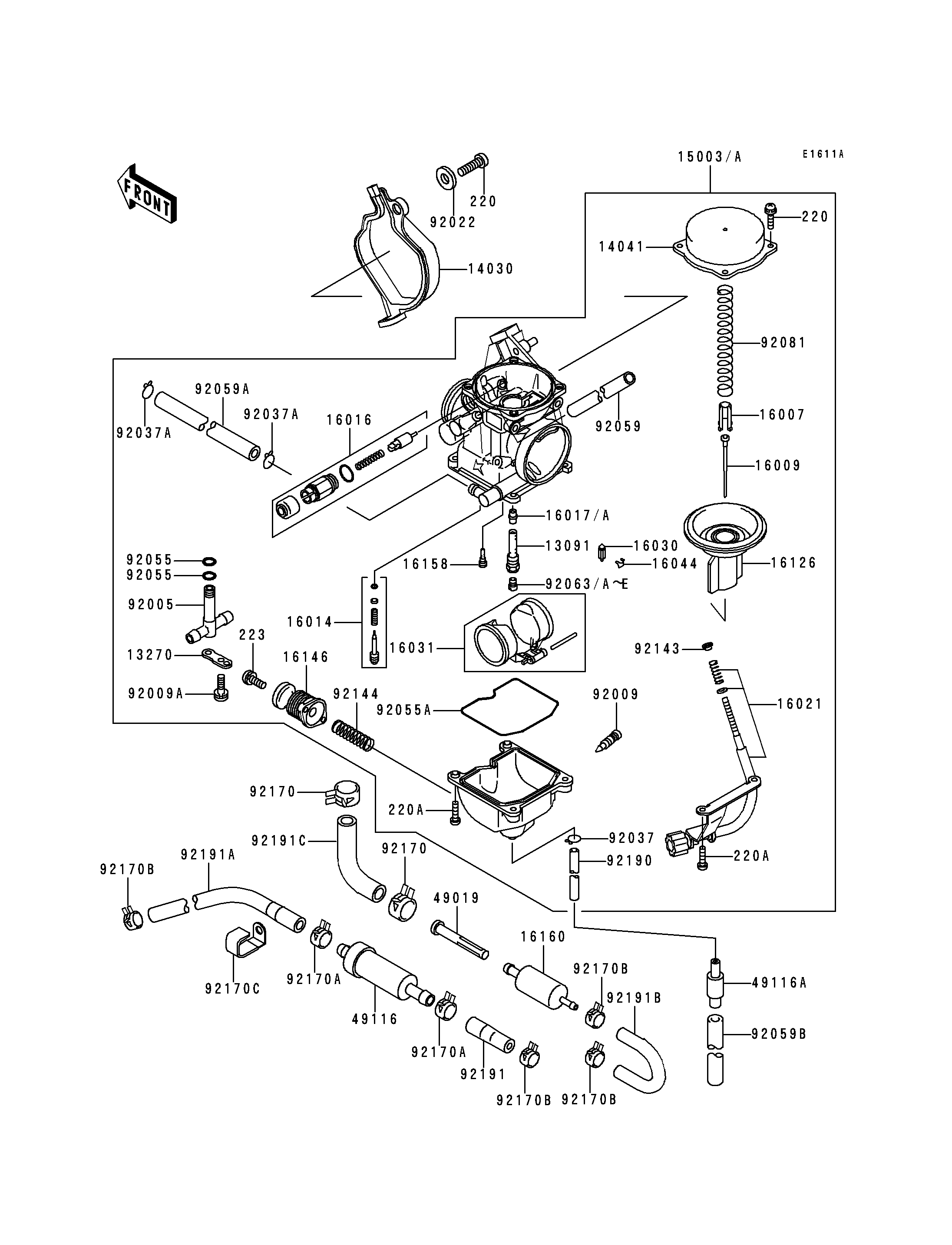

1999 Bayou 400 4X4 - Carburetor(LF400AE532918-)

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13270
13270
14030
14030
14041
14041
16007
16007
16009
16009
16014
16014
16016
16016
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
16146
16146
16158
16158
16160
16160
49019
49019
49116
49116
49116A
49116A
92005
92005
92009
92009
92009A
92009A
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92055A
92055A
92059
92059
92059A
92059A
92059B
92059B
92063
92063
220
220
220
220
220A
220A
220A
220A
223
223
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92081
92081
92143
92143
92144
92144
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170C
92170C
92190
92190
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
PLATE,FITTING STAY 13270 13270-1063 1
COVER-CARBURETOR 14030 14030-1054 1
TOP-CHAMBER,MIXING,INSIDE 14041 14041-1077 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 1
NEEDLE-JET,N2LF 16009 16009-1870 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-1101 1
SCREW-THROTTLE STOP 16021 16021-1196 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1199 1
COVER-ASSY,PUMP 16146 16146-1129 1
JET-SLOW,#42 16158 16158-1053 1
BODY,FILTER 16160 16160-1151 1
FILTER-WATER 49019 49019-1068 1
VALVE-ASSY 49116 49116-1081 1
VALVE-ASSY 49116A 49116-1126 1
FITTING 92005 92005-1235 1
SCREW,DRAIN,M6X0.75 92009 92009-1551 1
SCREW 92009A 92009-1713 1
WASHER,5.2X13X1 92022 92022-1380 1
CLAMP,TUBE 92037 92037-1201 1
CLAMP,TUBE 92037A 92037-1531 2
RING-O,4.5X1.5 92055 92055-1427 2
RING-O,FLOAT CHAMBER 92055A 92055-1518 1
TUBE,6.5X11.5X150 92059 92059-1463 1
TUBE,6.5X9.5X430 92059A 92059-1727 1
TUBE,7X10X100 92059B 92059-1736 1
JET-MAIN,#85 92063 92063-1023 1
SCREW-PAN-CROS 220 220B0408 5
SCREW-PAN-CROS 220A 220D0414 4
SCREW-PAN-WS-CROS 223 223C0412 2
JET-MAIN,#125 92063A 92063-1069 1 (OPTION)
JET-MAIN,#118 92063B 92063-1071 1 (OPTION)
JET-MAIN,#120 92063C 92063-1072 1
JET-MAIN,#122 92063D 92063-1073 1 (OPTION)
JET-MAIN,#115 92063E 92063-1118 1 (OPTION)
SPRING,VACUUM VALVE 92081 92081-1775 1
COLLAR 92143 92143-1589 1
SPRING,PUMP 92144 92144-1672 1
CLAMP 92170 92170-1278 2
CLAMP 92170A 92170-1492 2
CLAMP 92170B 92170-1493 4
CLAMP 92170C 92170-1863 1
TUBE,4.5X8X330 92190 92190-1557 1
TUBE 92191 92191-1223 1
TUBE 92191A 92191-1224 1
TUBE 92191B 92191-1248 1
TUBE 92191C 92191-1249 1
CARBURETOR-ASSY 15003 15003-1417 1
CARBURETOR-ASSY 15003A 15003-1418 1
JET-NEEDLE,#6 16017 16017-1270 1
JET-NEEDLE,#6 16017A 16017-1286 1
