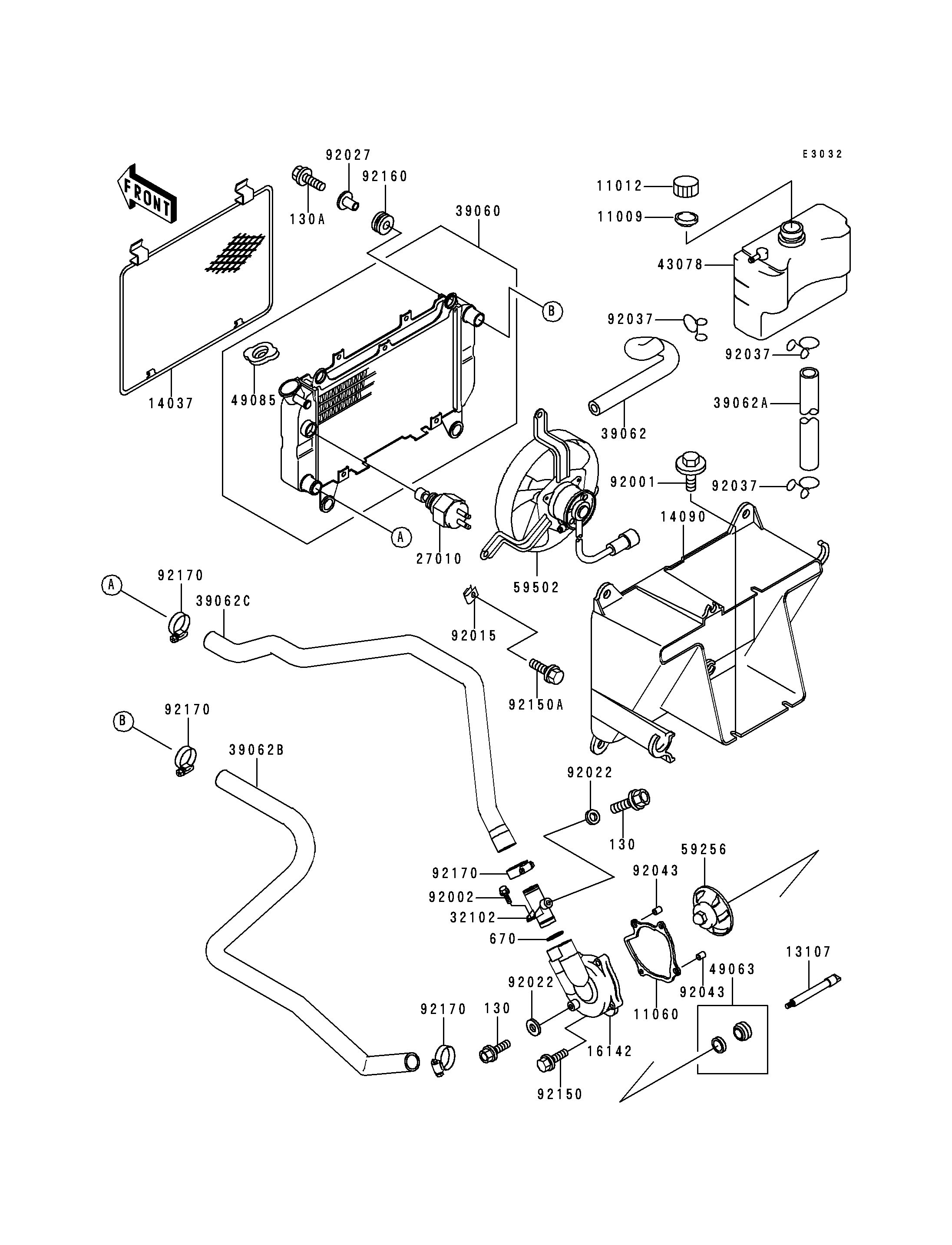

1997 Bayou 400 4X4 (Canada Only) - Radiator(-LF400AE532917)
130
130
130A
670
11009
11012
11060
13107
14037
14090
16142
27010
32102
39060
39062
39062A
39062B
39062C
43078
49063
49085
59256
59502
92001
92002
92015
92022
92022
92027
92037
92037
92037
92043
92043
92150
92150A
92160
92170
92170
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0610 | 2 | ||
BOLT-FLANGED,8X30 | 130A | 130J0830 | 4 | ||
O RING,18MM | 670 | 670B2018 | 1 | ||
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
GASKET,PUMP COVER | 11060 | 11060-1308 | 1 | ||
SHAFT,WATER PUMP | 13107 | 13107-1287 | 1 | ||
SCREEN | 14037 | 14037-1153 | 1 | ||
COVER,RADIATOR | 14090 | 14090-1491 | 1 | ||
COVER-PUMP | 16142 | 16142-1083 | 1 | ||
SWITCH,FAN | 27010 | 27010-1202 | 1 | ||
PIPE,CYLINDER | 32102 | 32102-1719 | 1 | ||
RADIATOR | 39060 | 39060-1110 | 1 | ||
HOSE-COOLING | 39062 | 39062-1257 | 1 | ||
HOSE-COOLING,5.5X10.5X420 | 39062A | 39062-1586 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR | 39062B | 39062-1587 | 1 | ||
HOSE-COOLING,RADIATOR-PUMP | 39062C | 39062-1588 | 1 | ||
RESERVOIR | 43078 | 43078-1146 | 1 | ||
SEAL-MECHANICAL | 49063 | 49063-1054 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
IMPELLER | 59256 | 59256-1060 | 1 | ||
FAN-ASSY | 59502 | 59502-1102 | 1 | ||
BOLT,6X16 | 92001 | 92001-1950 | 2 | ||
BOLT,6X12 | 92002 | 92002-1569 | 1 | ||
NUT | 92015 | 92015-1487 | 3 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
COLLAR | 92027 | 92027-1956 | 4 | ||
CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
PIN,DOWEL,8X10 | 92043 | 92043-1302 | 2 | ||
BOLT,6X30 | 92150 | 92150-1021 | 4 | ||
BOLT,6X12 | 92150A | 92150-1186 | 3 | ||
DAMPER | 92160 | 92160-1007 | 4 | ||
CLAMP | 92170 | 92170-1497 | 4 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X30 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
O RING,18MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,RESERVOIR TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,PUMP COVER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,WATER PUMP | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREEN | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RADIATOR | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,FAN | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,CYLINDER | |
REF # | 32102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR | |
REF # | 39060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,5.5X10.5X420 | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-PUMP | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FAN-ASSY | |
REF # | 59502 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PIN,DOWEL,8X10 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
