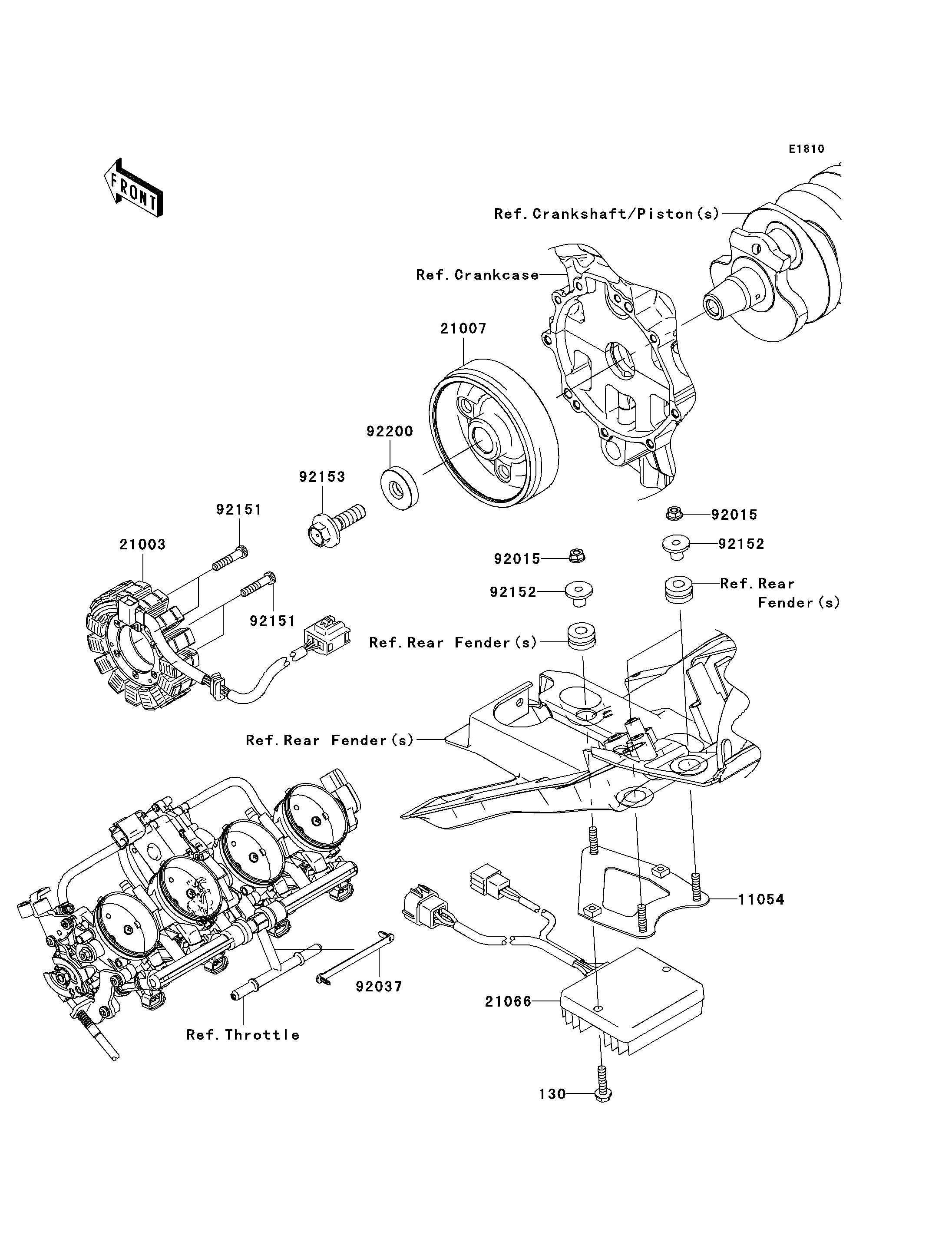

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
BRACKET,REGULATOR 11054 11054-0761 1
STATOR 21003 21003-0049 1
ROTOR 21007 21007-0091 1
REGULATOR-VOLTAGE 21066 21066-0025 1
NUT,FLANGED,6MM 92015 92015-1367 3
CLAMP,SPEED,L=80.5 92037 92037-1903 1
BOLT,6X30 92151 92151-1626 4
COLLAR 92152 92152-0091 3
BOLT,12X40 92153 92153-1855 1
WASHER,12X36X8 92200 92200-1249 1
