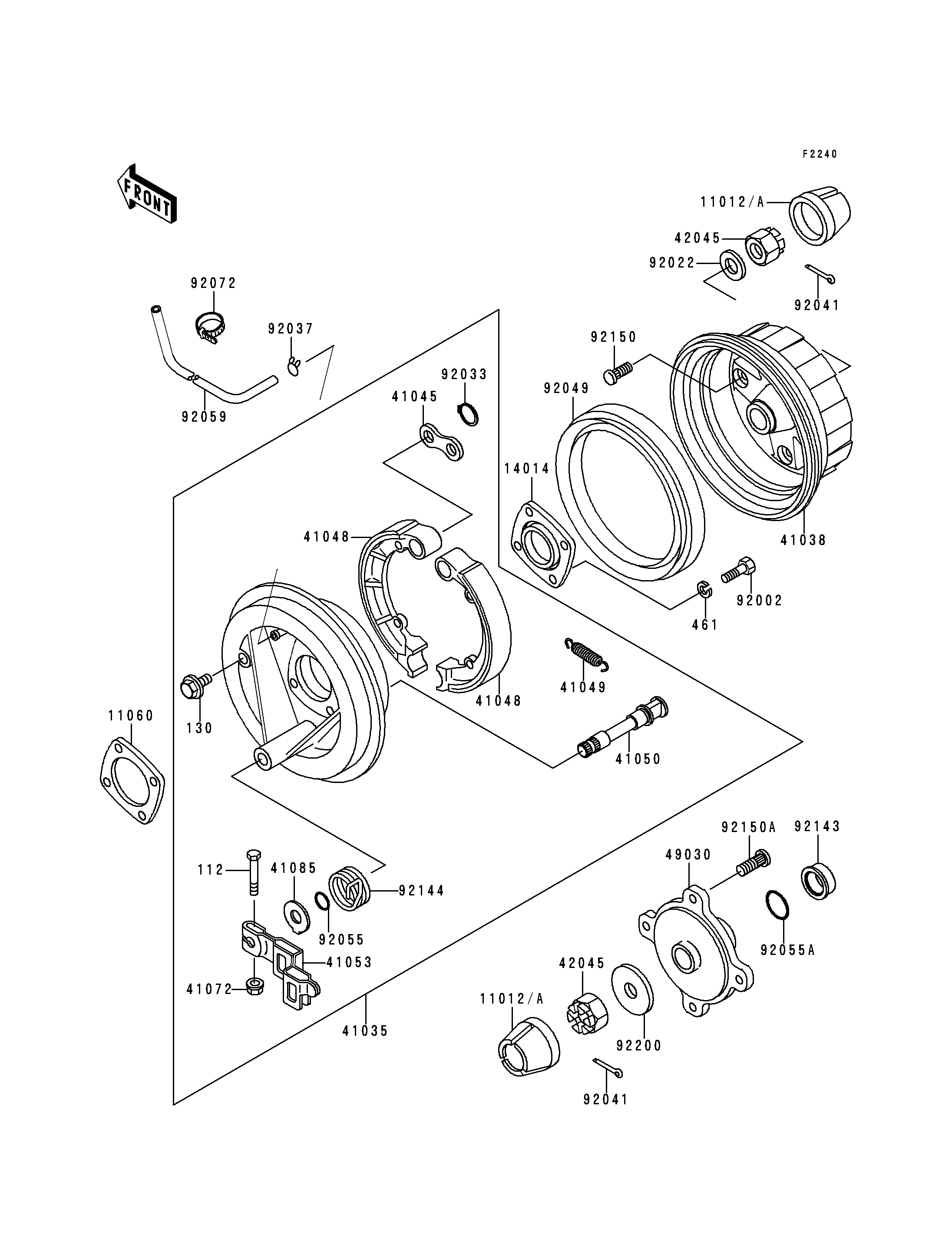

1997 Bayou 400 4X4 (Canada Only) - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
112
130
461
11012A
11012A
11060
14014
41035
41038
41045
41048
41048
41049
41050
41053
41072
41085
42045
42045
49030
92002
92022
92033
92037
92041
92041
92049
92055
92055A
92059
92072
92143
92144
92150
92150A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112H0640 1
BOLT-FLANGED,10X12 130 130B1012 1
WASHER-SPRING,10MM 461 461F1000 4
CAP,WHEEL 11012A 11012-1969 2
GASKET 11060 11060-1561 1
PLATE-POSITION 14014 14014-1072 1
PANEL-ASSY-BRAKE,RR,RH 41035 41035-1305 1
DRUM,REAR BRAKE 41038 41038-1202 1
WASHER 41045 41045-006 1
SHOE-BRAKE 41048 41048-1082 2
SPRING,BRAKE SHOE 41049 41049-012 2
CAM-BRAKE 41050 41050-1077 1
LEVER-BRAKE CAM 41053 41053-1078 1
NUT,6MM 41072 41072-007 1
INDICATOR 41085 41085-1062 1
NUT,CASTLE,18MM 42045 42045-018 2
HUB,RR,LH 49030 49030-1111 1
BOLT,10X30 92002 92002-1918 4
WASHER,18.3X34X4.5 92022 92022-1658 1
RING-SNAP,15MM 92033 92033-1250 2
CLAMP,TUBE 92037 92037-147 1
COTTER,4.0X35 92041 92041-1053 2
SEAL-OIL,SD07 190 225 16 NS 92049 92049-1312 1
RING-O,ID=16.4 92055 92055-1376 1
RING-O,ID=24.5 92055A 92055-1459 1
TUBE,4.7X9.5X1240 92059 92059-1968 1
BAND,L=188 92072 92072-1239 3
COLLAR 92143 92143-1585 1
SPRING 92144 92144-1365 1
BOLT,10MM 92150 92150-1110 4
BOLT 92150A 92150-1289 4
WASHER,18.5X52X4.5 92200 92200-1139 1
