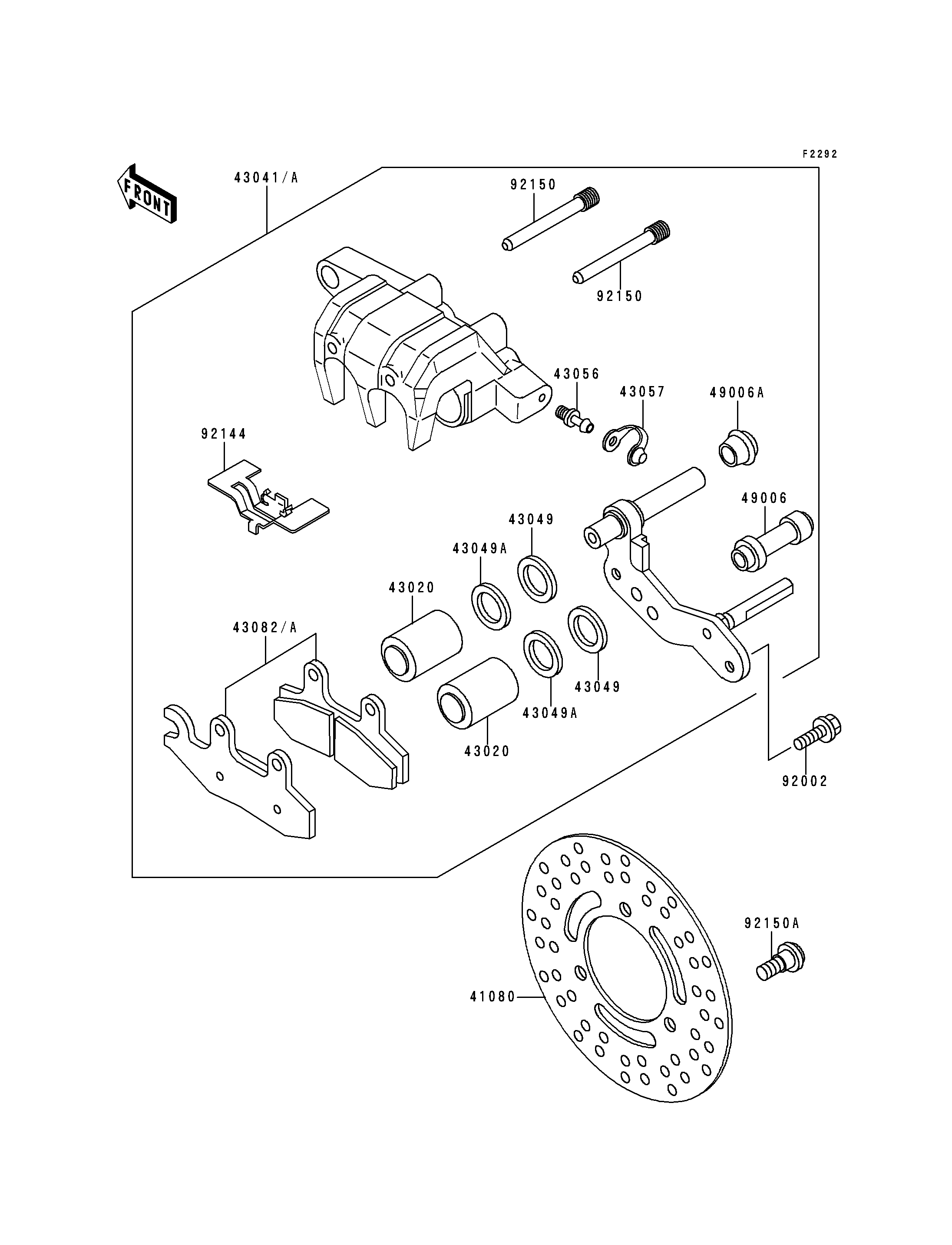

1997 Bayou 400 4X4 (Canada Only) - Front Brake
41080
43020
43020
43041
43041A
43049
43049
43049A
43049A
43056
43057
43082
43082A
49006
49006A
92002
92144
92150
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR | 41080 | 41080-1216 | 2 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1101 | 4 | ||
| CALIPER-ASSY,FR,LH | 43041 | 43041-1518 | 1 | ||
| CALIPER-ASSY,FR,RH | 43041A | 43041-1519 | 1 | ||
| PACKING | 43049 | 43049-1063 | 4 | ||
| PACKING | 43049A | 43049-1064 | 4 | ||
| BREATHER-BRAKE | 43056 | 43056-1055 | 2 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 2 | ||
| PAD-ASSY-BRAKE,FR,LH | 43082 | 43082-1093 | 1 | ||
| PAD-ASSY-BRAKE,FR,RH | 43082A | 43082-1094 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1088 | 2 | ||
| BOOT,CALIPER | 49006A | 49006-1242 | 2 | ||
| BOLT,FLANGED,8X13 | 92002 | 92002-1737 | 4 | ||
| SPRING,PAD | 92144 | 92144-1319 | 2 | ||
| BOLT | 92150 | 92150-1144 | 4 | ||
| BOLT,SOCKET,8X20 | 92150A | 92150-1760 | 6 |
