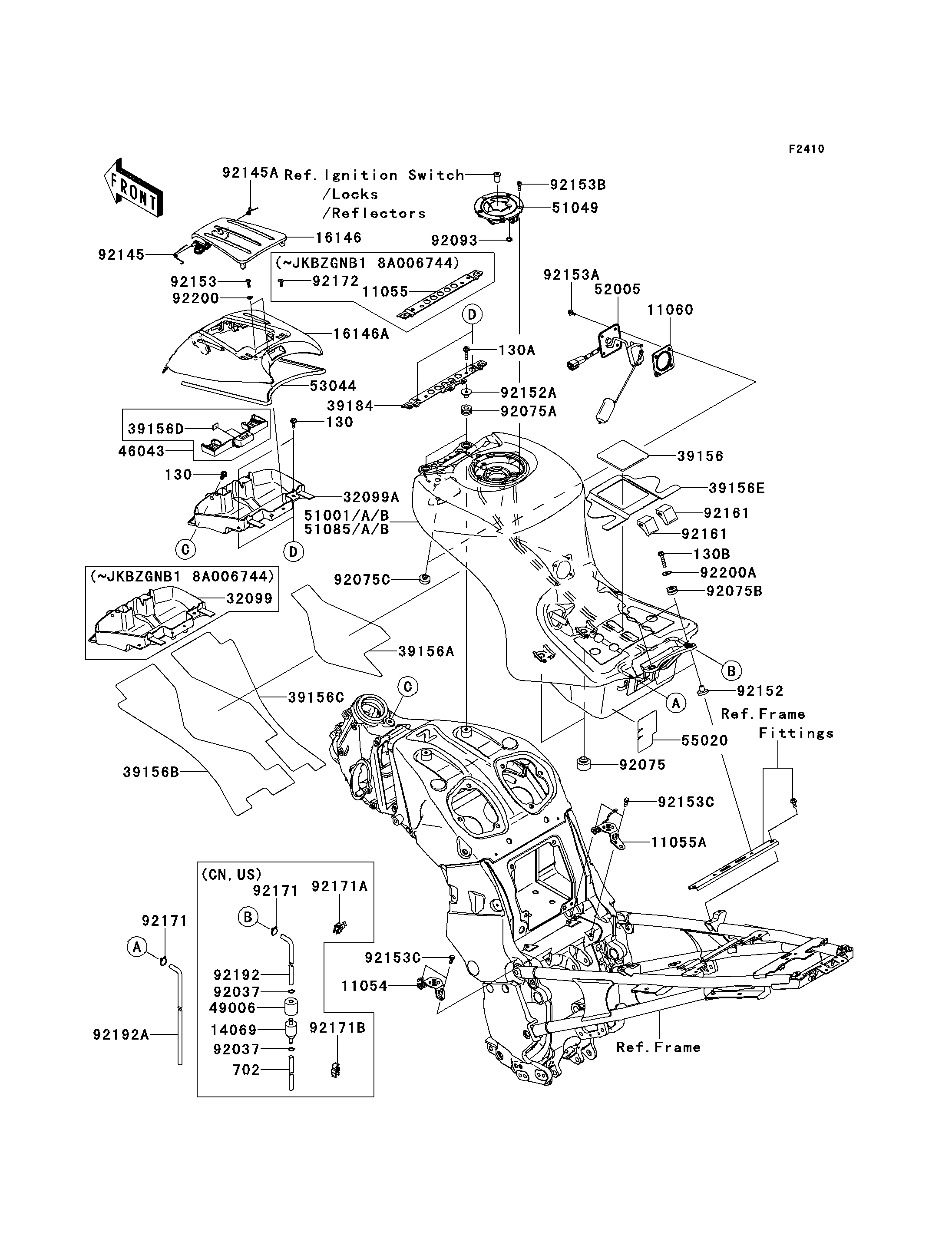

2008 Concours™ 14 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054
11055
11055
11055
11055A
11055A
11055A
11060
11060
11060
16146
16146
16146
16146A
16146A
16146A
32099
32099
32099
32099A
32099A
32099A
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
39156C
39156C
39156C
39156D
39156D
39156D
39156E
39156E
39156E
39184
39184
39184
46043
46043
46043
51049
51049
51049
52005
52005
52005
53044
53044
53044
55020
55020
55020
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92075C
92075C
92075C
92093
92093
92093
92145
92145
92145
92145A
92145A
92145A
92152
92152
92152
92152A
92152A
92152A
92153
92153
92153
92153A
92153A
92153A
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92161
92161
92161
92161
92161
92161
130
130
130
130
130
130
130A
130A
130A
130B
130B
130B
92172
92172
92172
92192A
92192A
92192A
92200
92200
92200
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,CNT,LH 11054 11054-0681 1
BRACKET,CASE 11055 11055-0347 1 ( - JKBZGNB1 8A006744)
BRACKET,FUEL TANK,CNT,RH 11055A 11055-0348 1
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER-ASSY 16146 16146-0081 1
COVER-ASSY 16146A 16146-0084 1
CASE 32099 32099-0031 1 ( - JKBZGNB1 8A006744)
CASE 32099A 32099-0039 1 (JKBZGNB1 8A006745 - )
PAD,SEAT 39156 39156-0129 1
PAD,FUEL TANK,CNT 39156A 39156-0147 1
PAD,FUEL TANK,LH 39156B 39156-0173 1
PAD,FUEL TANK,RH 39156C 39156-0174 1
PAD 39156D 39156-0176 2
PAD,FUEL TANK 39156E 39156-0373 1
BRACKET-ASSY,CASE 39184 39184-0012 1 (JKBZGNB1 8A006745 - )
KNOB-ASSY 46043 46043-0005 1
CAP-TANK,FUEL 51049 51049-0012 1
GAUGE,FUEL 52005 52005-0026 1
TRIM 53044 53044-0028 1
GUARD,FUEL TANK 55020 55020-0290 1
DAMPER 92075 92075-015 2
DAMPER 92075A 92075-1690 2
DAMPER 92075B 92075-209 2
DAMPER 92075C 92075-281 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
SPRING 92145 92145-0474 1
SPRING 92145A 92145-0475 1
COLLAR 92152 92152-0364 2
COLLAR 92152A 92152-0365 2
BOLT,SOCKET,5X16 92153 92153-1244 2 (JKBZGNB1 8A006745 - )
BOLT,FLANGED,5X12 92153A 92153-1421 4
BOLT,SOCKET,5X16 92153B 92153-1616 3
BOLT,FLANGED,6X20 92153C 92153-1694 4
DAMPER 92161 92161-0458 2
BOLT-FLANGED,6X16 130 130BA0616 3
BOLT-FLANGED,6X25 130A 130BA0625 2
BOLT-FLANGED,6X30 130B 130BA0630 2
SCREW,TAPPING,5X14 92172 92172-0265 2 ( - JKBZGNB1 8A006744)
TUBE,DRAIN 92192A 92192-0693 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2 (JKBZGNB1 8A006745 - )
WASHER,6.5X20X1.6 92200A 92200-0283 2
BREATHER 14069 14069-1051 1 CNUS
BOOT,BREATHER 49006 49006-1267 1 CNUS
TANK-COMP-FUEL,N.SILVER 51001A 51001-0216-17N 1 CNUS
TANK-COMP-FUEL,N.SILVER 51085A 51085-5280-17N 1 CA
CLAMP,TUBE 92037 92037-147 2 CNUS
CLAMP 92171 92171-0573 1 CA
CLAMP 92171 92171-0573 2 CNUS
CLAMP 92171A 92171-1708 1 CNUS
TUBE-RUBBER,7X10X200 702 702A07200 1 CNUS
CLAMP 92171B 92171-1709 1 CNUS
TUBE 92192 92192-0611 1 CNUS
