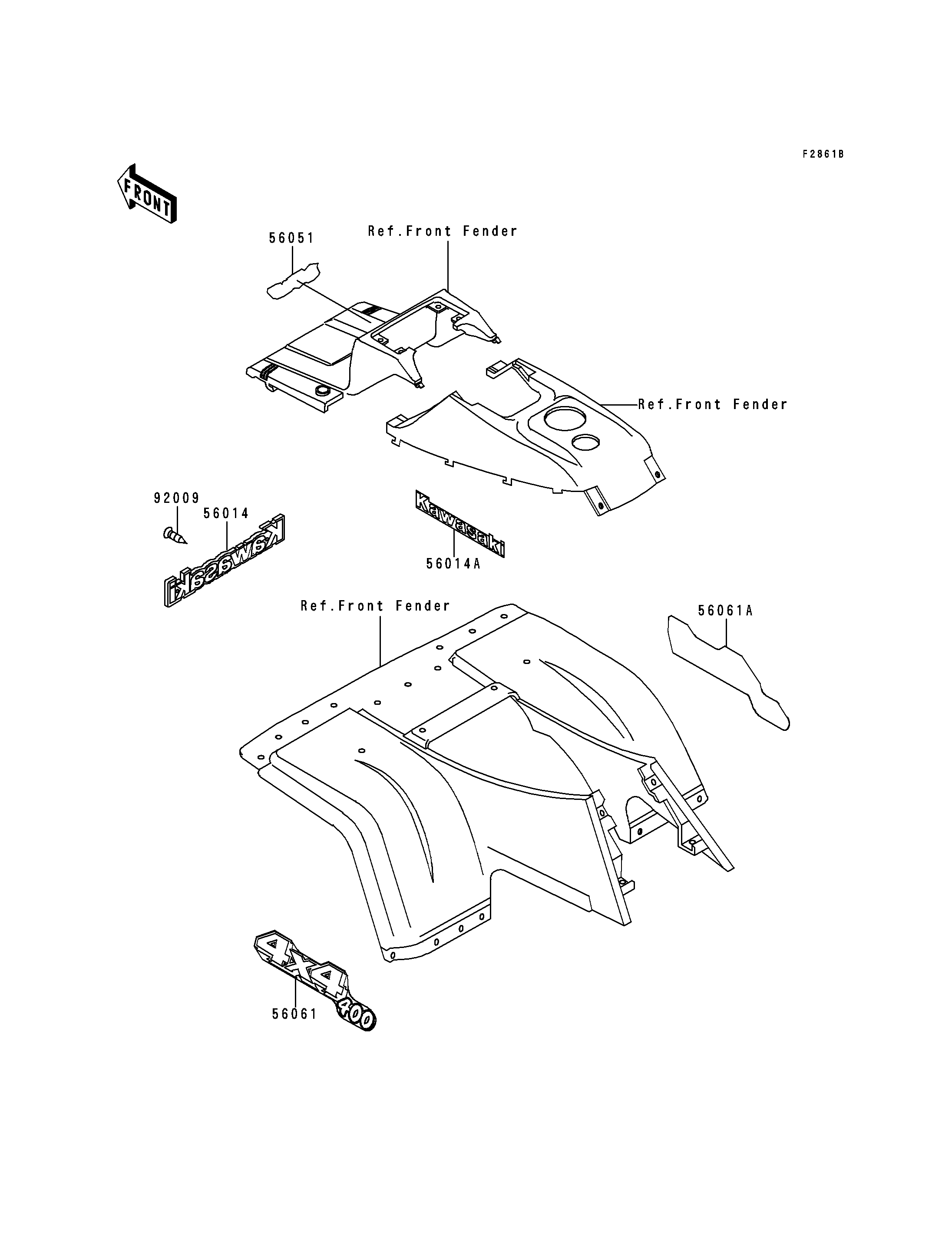

1997 Bayou 400 4X4 (Canada Only) - Decals(Green)(KLF400-B5)

56014
56014A
56051
56061
56061A
92009
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI 56014 56014-1278 1
EMBLEM,FR FENDER COVER,KAWASAK 56014A 56014-1342 2
MARK,FR FENDER COVER,FR,BAYOU 56051 56051-1487 1
PATTERN,FR FENDER,LH 56061 56061-1755 1
PATTERN,FR FENDER,RH 56061A 56061-1756 1
SCREW,TAPPING,3X10 92009 92009-1680 2
