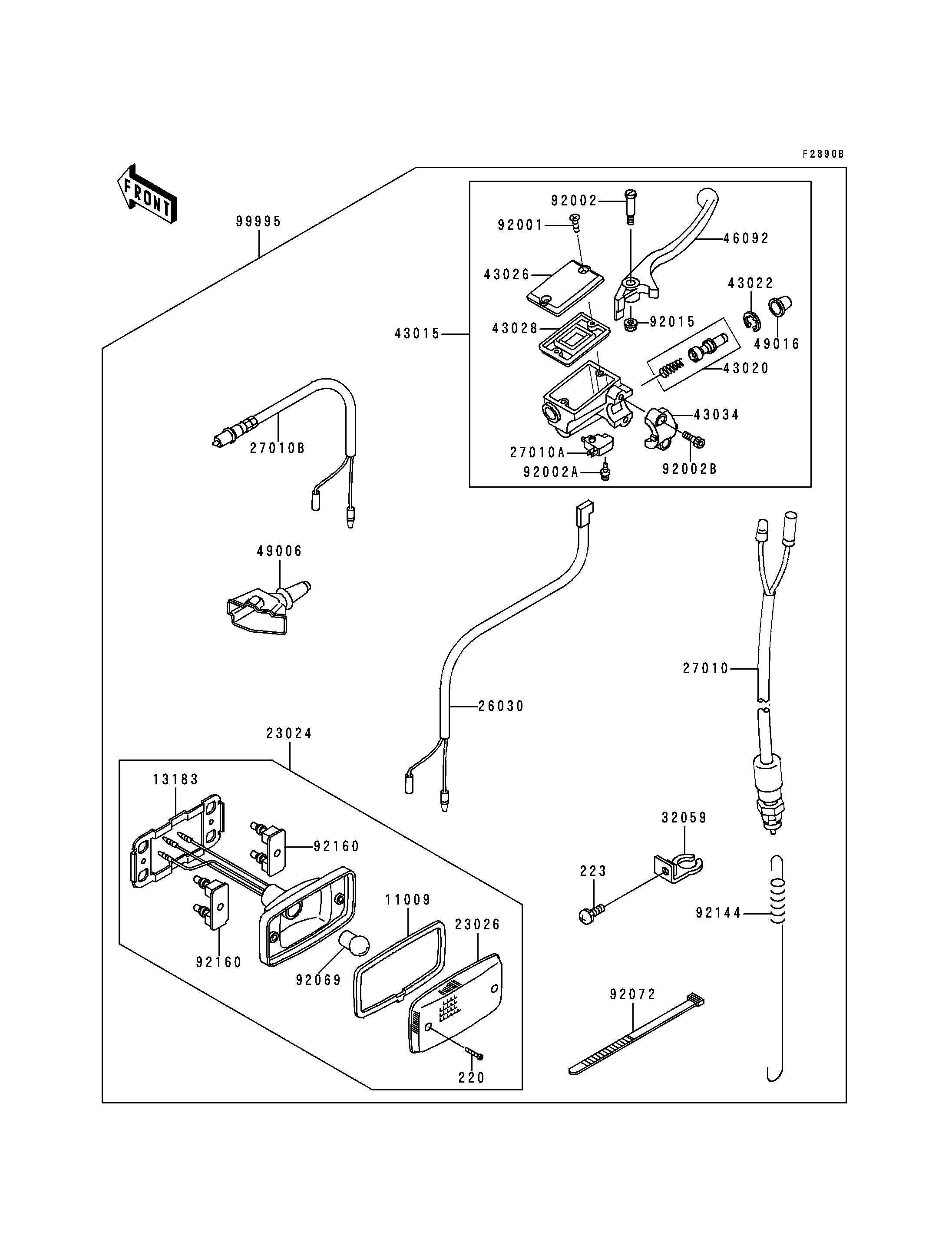

1999 Bayou 400 4X4 - Optional Parts(Brake Switch)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-4004 2
PLATE,TAIL LAMP 13183 13183-1261 2
LAMP-ASSY-TAIL 23024 23024-1124 2
LENS,TAIL LAMP 23026 23026-4003 2
HARNESS 26030 26030-1058 1
SWITCH,BRAKE LAMP 27010 27010-025 1
SWITCH,BRAKE 27010A 27010-1170 1
SWITCH,BRAKE 27010B 27010-1294 1
BRACKET-SWITCH,REAR BRAKE 32059 32059-1114 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1438 1
PISTON-COMP-BRAKE,FR 43020 43020-1056 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1059 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1053 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1167 1
BOOT 49006 49006-1261 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
SCREW,5MM,BLACK 92001 92001-1727 2
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,SOCKET,6X20,BLACK 92002B 92002-1324 2
SCREW-PAN-CROS 220 220B0416 4
SCREW-PAN-WS-CROS 223 223B0612 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BULB,12V 27/8W 92069 92069-059 2
BAND,L=123 92072 92072-030 4
SPRING,BRAKE LAMP SWITCH 92144 92144-1191 1
DAMPER,TAIL LAMP 92160 92160-1053 4
KIT.,BRAKE SWITCH 99995 99995-1443 1
