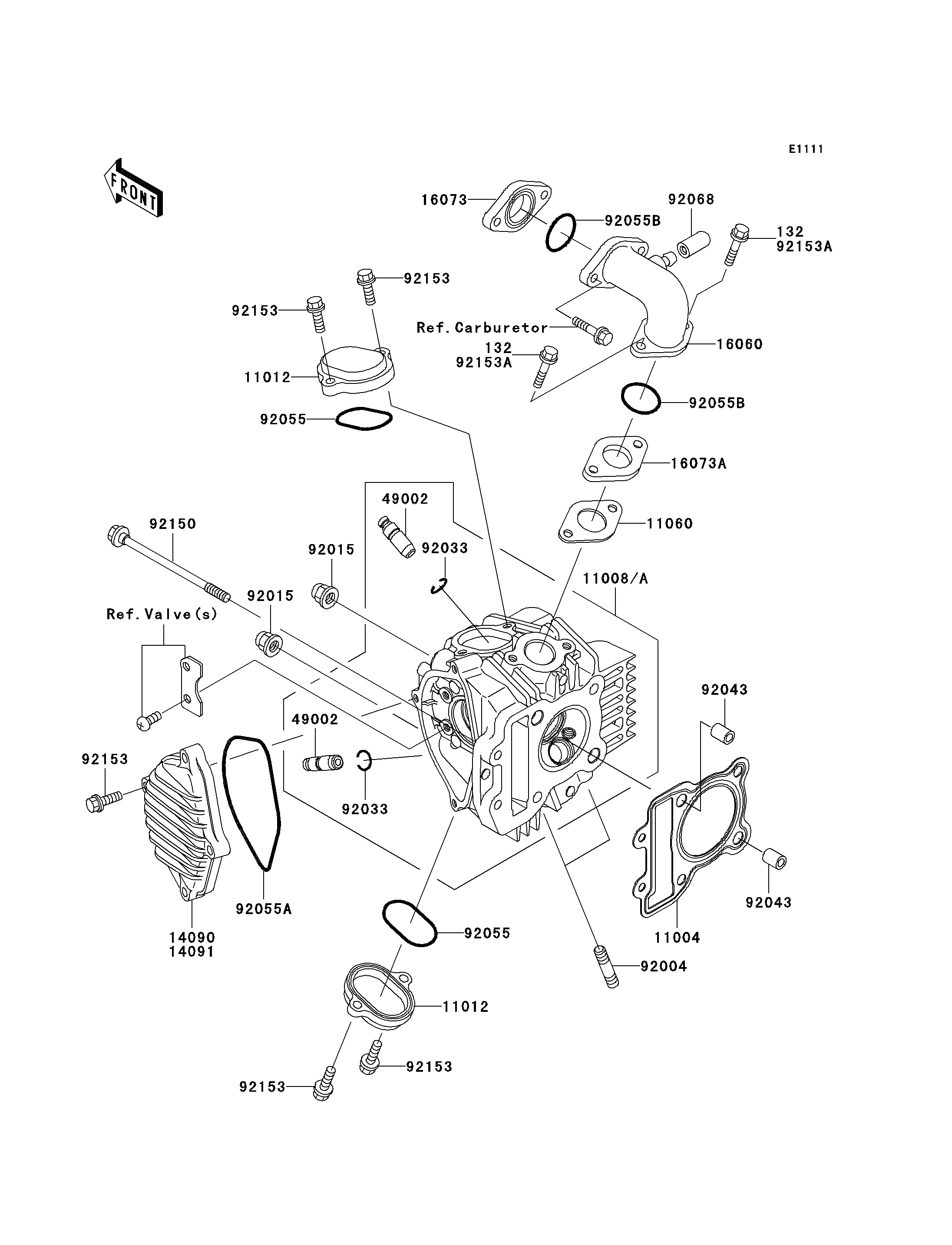

2003 KLX110 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
132
11004
11008A
11012
11012
11060
14091
16060
16073
16073A
49002
49002
92004
92015
92015
92033
92033
92043
92043
92055
92055
92055A
92055B
92055B
92068
92150
92153
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0630 2
GASKET-HEAD 11004 11004-1338 1
HEAD-COMP-CYLINDER 11008A 11008-1431 1
CAP,VALVE ADJUSTING 11012 11012-1303 2
GASKET,INTAKE PIPE 11060 11060-1753 1
COVER,CAMSHAFT 14091 14091-1447 1
PIPE-INTAKE 16060 16060-1079 1
INSULATOR,CARBURETOR 16073 16073-1102 1
INSULATOR,HEAD 16073A 16073-1108 1
GUIDE-VALVE 49002 49002-1130 AR
STUD 92004 92004-1234 2
NUT,CAP,8MM 92015 92015-1151 4
RING-SNAP 92033 92033-1247 2
PIN,8.2X10X14 92043 92043-1264 2
RING-O,ADJUST CAP 92055 92055-1231 2
RING-O,91X2.5 92055A 92055-1527 1
RING-O,25.5X2.0 92055B 92055-1528 2
PLUG,12X25 92068 92068-006 1
BOLT,6X106 92150 92150-1761 2
BOLT,M6X20 92153 92153-1184 8
