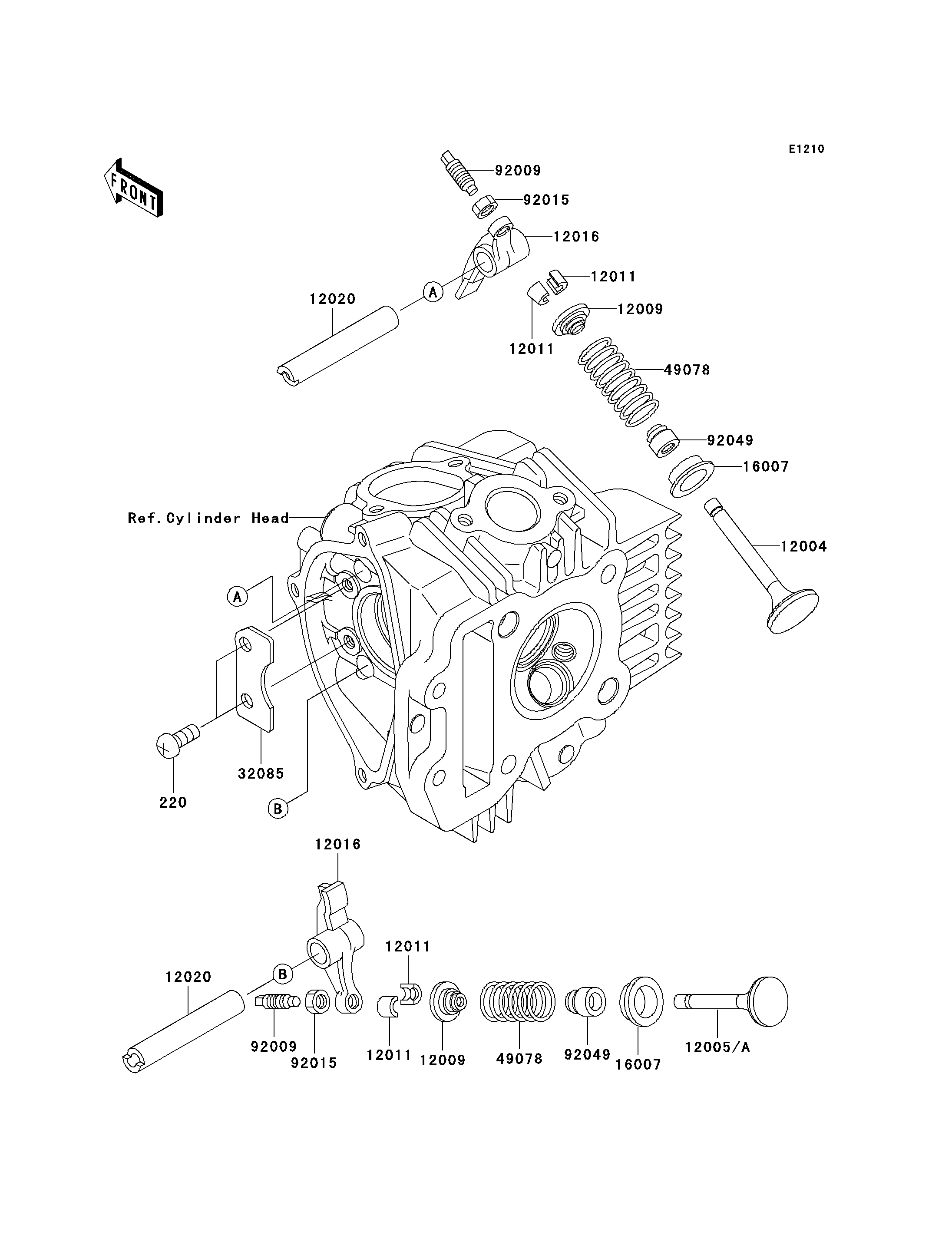

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
220
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
16007
16007
32085
49078
49078
92009
92009
92015
92015
92049
92049
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 2 | ||
| VALVE-INTAKE | 12004 | 12004-1158 | 1 | ||
| VALVE-EXHAUST | 12005 | 12005-1331 | 1 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-1073 | 2 | ||
| COLLET | 12011 | 12011-1053 | 4 | ||
| ARM-ROCKER | 12016 | 12016-1003 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-1073 | 2 | ||
| SEAT-SPRING,VALVE | 16007 | 16007-1187 | 2 | ||
| STOPPER | 32085 | 32085-1428 | 1 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-1151 | 2 | ||
| SCREW,VALVE ADJUST | 92009 | 92009-1109 | 2 | ||
| NUT,VALVE ADJUST LOCK | 92015 | 92015-1137 | 2 | ||
| SEAL-OIL | 92049 | 92049-1349 | 2 |
