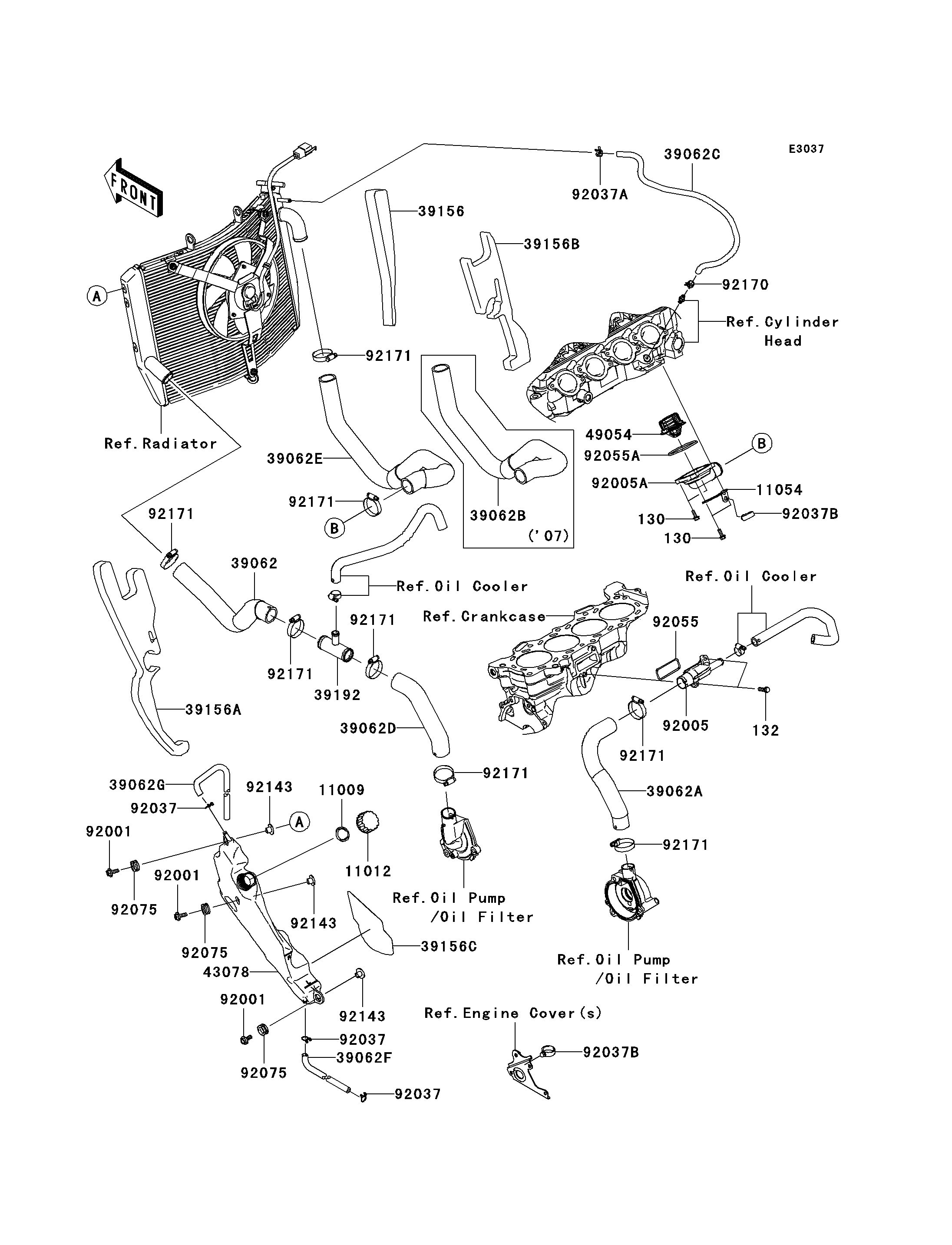

2008 Ninja® ZX™-6R - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
11009
11012
11054
39062
39062A
39062C
39062D
39062E
39062F
39062G
39156
39156A
39156B
39156C
39192
43078
49054
92001
92001
92001
92005
92005A
92037
92037
92037
92037A
92037B
92037B
92055
92055A
92075
92075
92075
92143
92143
92143
92170
92171
92171
92171
92171
92171
92171
92171
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130BB0514 4
BOLT-FLANGED-SMALL,6X20 132 132BB0620 2
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET 11054 11054-0864 1
HOSE-COOLING,RAD-PIPE 39062 39062-0154 1
HOSE-COOLING,W.PUMP-CYLINDER 39062A 39062-0155 1
HOSE-COOLING,RAD-HEAD 39062C 39062-0159 1
HOSE-COOLING,PIPE-W.PUMP 39062D 39062-0166 1
HOSE-COOLING,THERMO-RAD 39062E 39062-0240 1
HOSE-COOLING,RESERVOIR 39062F 39062-1493 1
HOSE-COOLING,OVERFLOW 39062G 39062-1814 1
PAD,RADIATOR RH 39156 39156-0247 1
PAD,ENGINE,LH 39156A 39156-0258 1
PAD,ENGINE,RH 39156B 39156-0259 1
PAD 39156C 39156-0277 1
PIPE-WATER 39192 39192-0058 1
RESERVOIR 43078 43078-0037 1
THERMOSTAT 49054 49054-1067 1
BOLT,6X18 92001 92001-1342 3
FITTING 92005 92005-0070 1
FITTING,THERMO CAP 92005A 92005-0076 1
CLAMP,TUBE 92037 92037-147 3
CLAMP,TUBE 92037A 92037-1505 1
CLAMP,HOSE 92037B 92037-1827 2
RING-O 92055 92055-1402 1
RING-O,THERMOSTAT CAP 92055A 92055-1699 1
DAMPER 92075 92075-1634 3
COLLAR 92143 92143-1962 3
CLAMP 92170 92170-1493 1
CLAMP 92171 92171-0179 8
