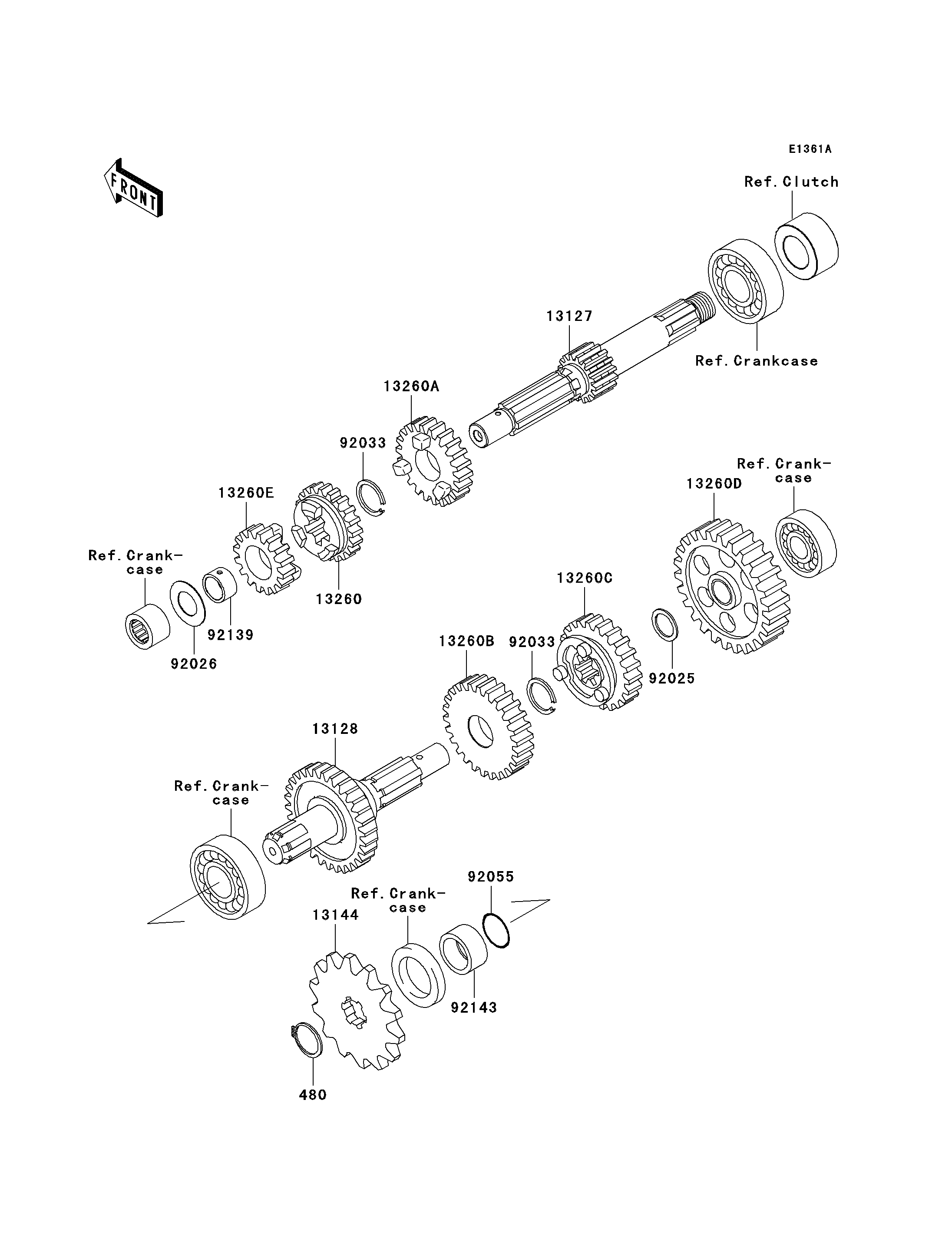

Parts Diagrams |
480
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
92025
92026
92033
92033
92055
92139
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,17MM | 480 | 480J1700 | 1 | ||
| SHAFT-TRANSMISSION INPUT,12T | 13127 | 13127-1280 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1244 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144 | 13144-1044 | 1 | ||
| GEAR,INPUT 3RD,20T | 13260 | 13260-1857 | 1 | ||
| GEAR,INPUT TOP,23T | 13260A | 13260-1858 | 1 | ||
| GEAR,OUTPUT 3RD,27T | 13260B | 13260-1860 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13260C | 13260-1861 | 1 | ||
| GEAR,OUTPUT LOW,36T | 13260D | 13260-1862 | 1 | ||
| GEAR,INPUT 2ND,16T | 13260E | 13260-1986 | 1 | ||
| SHIM | 92025 | 92025-1280 | 1 | ||
| SPACER | 92026 | 92026-1091 | 1 | ||
| RING-SNAP,17MM | 92033 | 92033-1060 | 2 | ||
| RING-O,16.8MM | 92055 | 92055-1235 | 1 | ||
| BUSHING | 92139 | 92139-1102 | 1 | ||
| COLLAR,SPROCKET | 92143 | 92143-1680 | 1 |
