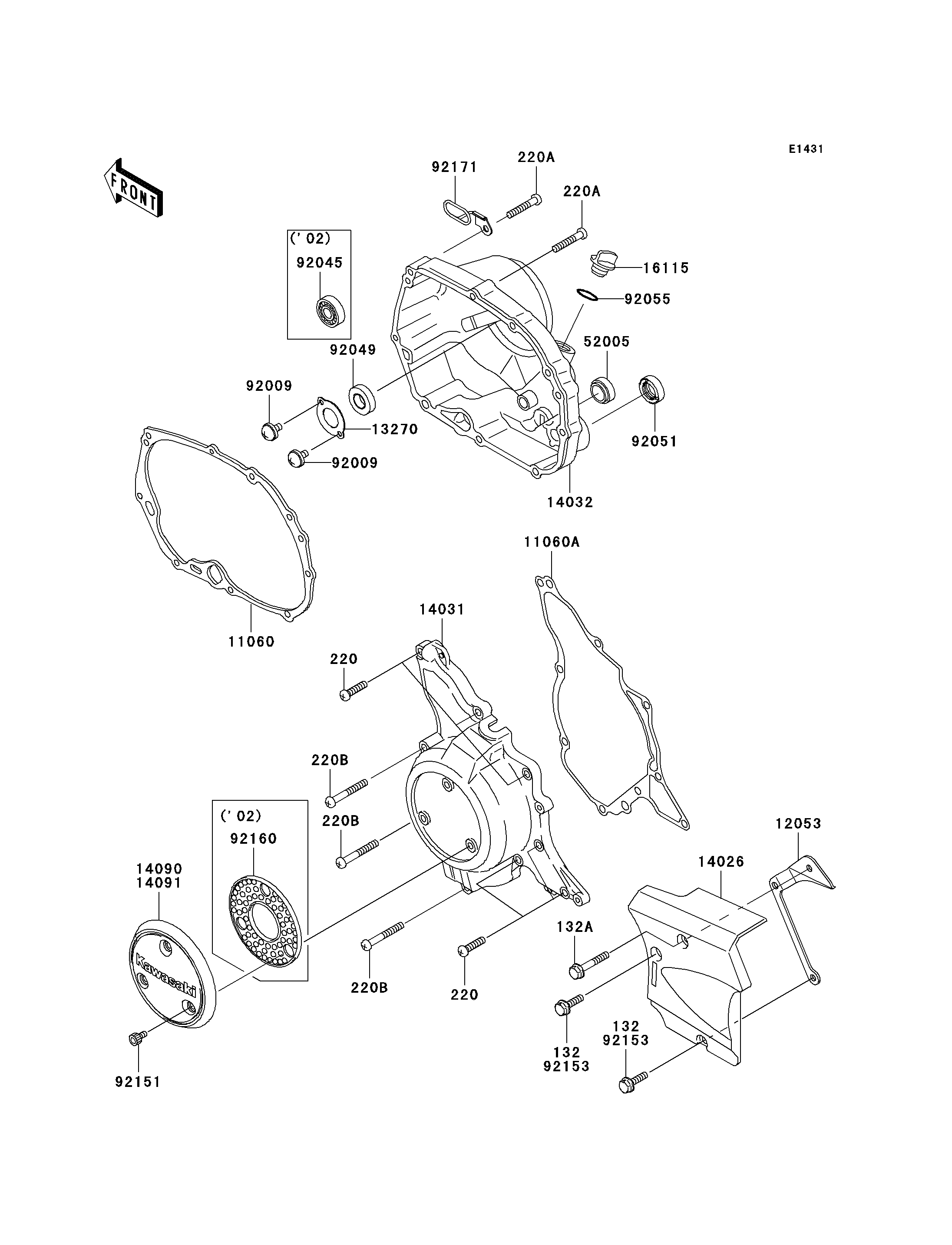

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132A | 132Y0635 | 1 | ||
SCREW-PAN-CROS | 220 | 220X0625 | 6 | ||
SCREW-PAN-CROS | 220A | 220X0635 | 9 | ||
SCREW-PAN-CROS | 220B | 220X0645 | 3 | ||
GASKET,CLUTCH | 11060 | 11060-1797 | 1 | ||
GASKET,GENERATOR | 11060A | 11060-1798 | 1 | ||
GUIDE-CHAIN,TENSION | 12053 | 12053-1467 | 1 | ||
PLATE | 13270 | 13270-1800 | 1 | ||
COVER-CHAIN | 14026 | 14026-1285 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1342 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1529-10 | 1 | ||
COVER,HEAT INSULATOR | 14091 | 14091-1444 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1068 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1055 | 1 | ||
SCREW | 92009 | 92009-1745 | 2 | ||
SEAL-OIL,AC0387E0 | 92049 | 92049-1595 | 1 | ||
SEAL-OIL,TB16267 | 92051 | 92051-003 | 1 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
BOLT,SOCKET,5X10 | 92151 | 92151-1212 | 3 | ||
BOLT,M6X20 | 92153 | 92153-1184 | 2 | ||
CLAMP,DRAIN TUBE | 92171 | 92171-1124 | 1 |
