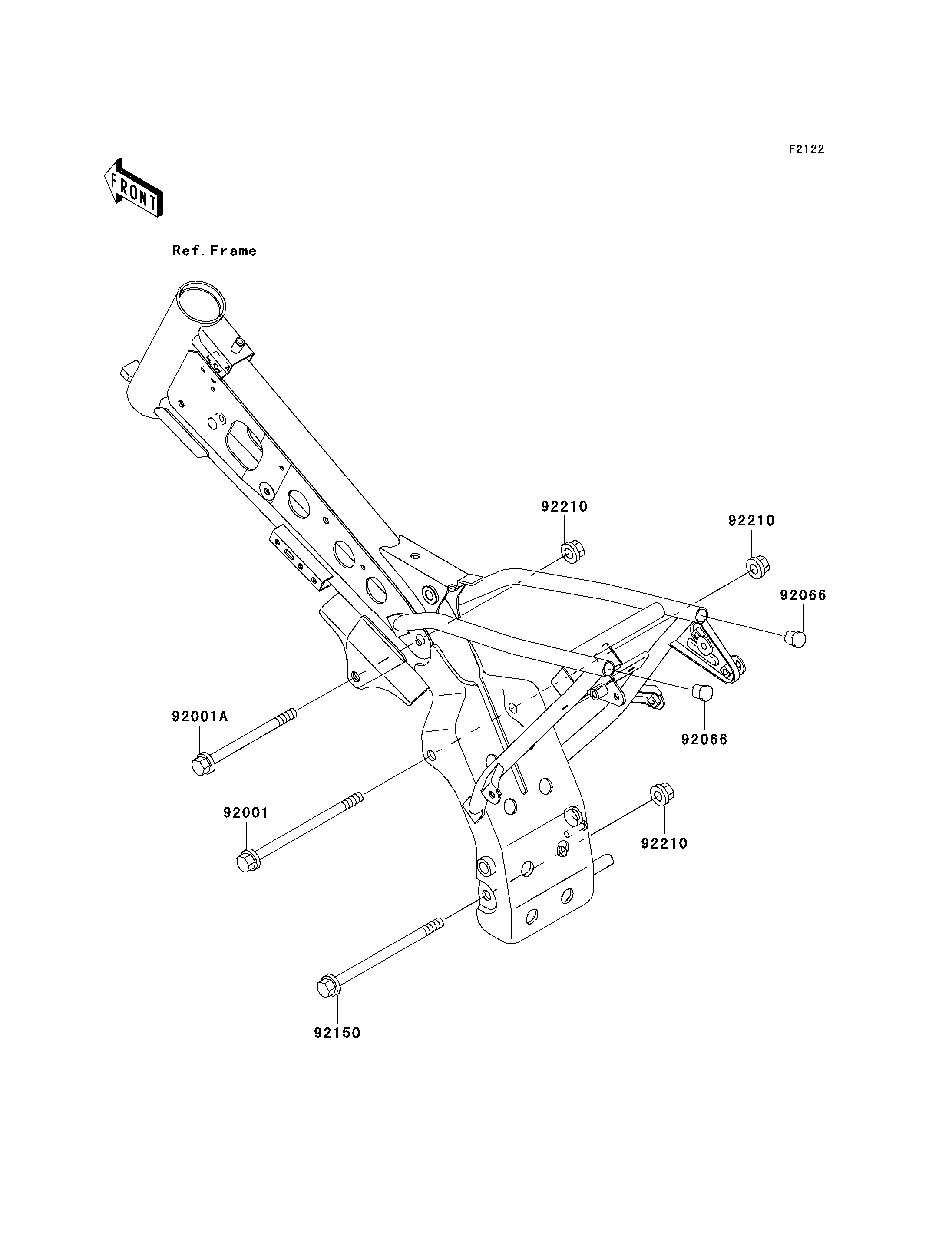

92001
92001A
92066
92066
92150
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,FLANGED,10X125 92001 92001-1720 1
BOLT,FLANGED,10X105,BLACK 92001A 92001-1751 1
PLUG,HEAD LAMP 92066 92066-1081 2
BOLT,FLANGED,10X120 92150 92150-1831 1
NUT,LOCK,FLANGED,10MM 92210 92210-1081 3
