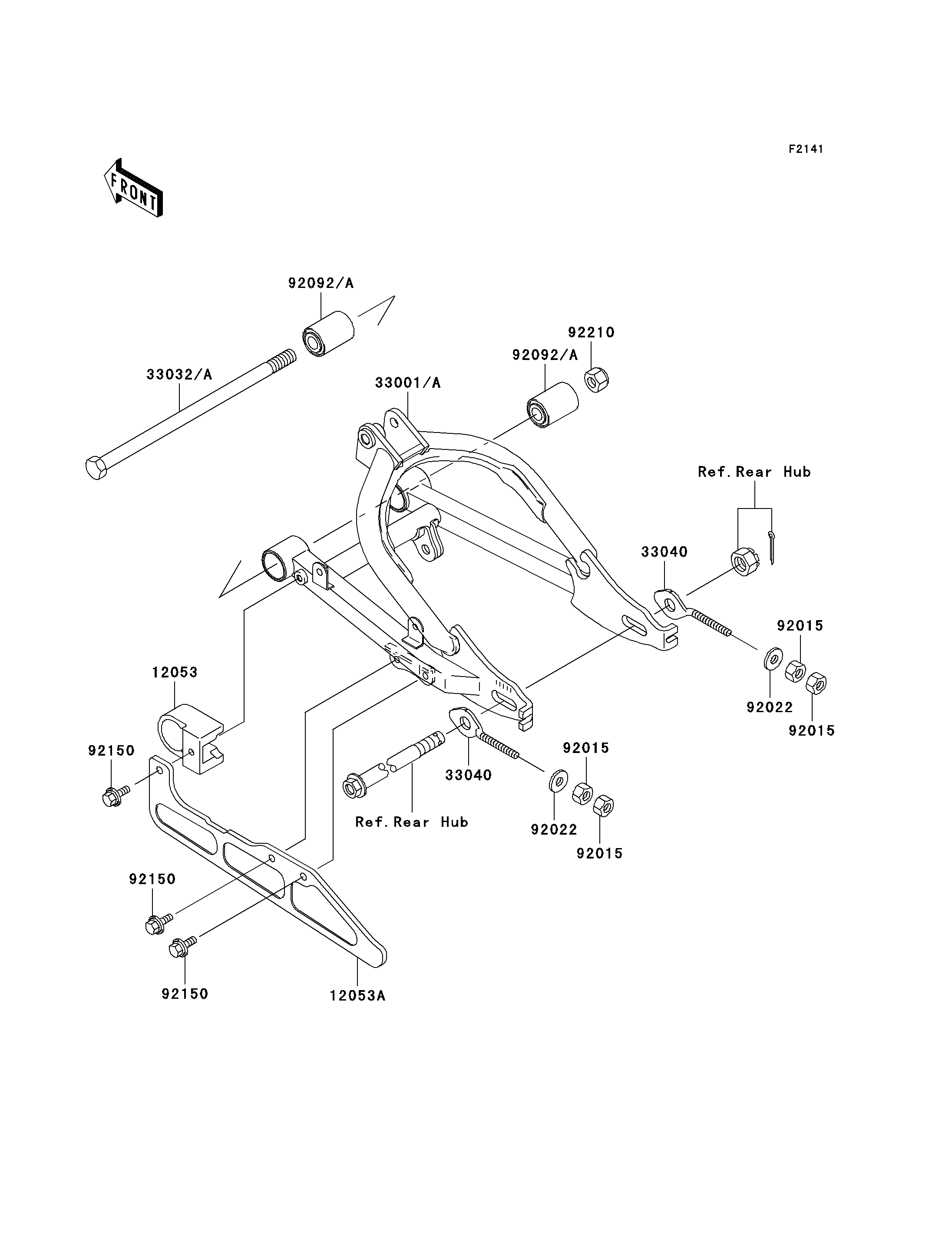

Parts Diagrams |
12053
12053A
33001
33032A
33040
33040
92015
92015
92015
92015
92022
92022
92092
92092
92150
92150
92150
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE-CHAIN,FR | 12053 | 12053-1459 | 1 | ||
GUIDE-CHAIN,RR | 12053A | 12053-1460 | 1 | ||
ARM-COMP-SWING,SILVER | 33001 | 33001-1622-CE | 1 | ||
SHAFT-SWING ARM | 33032A | 33032-1203 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1006 | 2 | ||
NUT,6MM | 92015 | 92015-1391 | 4 | ||
WASHER,6.5X16X2 | 92022 | 92022-1565 | 2 | ||
BUSHING-RUBBER | 92092 | 92092-005 | 2 | ||
BOLT,6X20 | 92150 | 92150-1339 | 3 | ||
NUT,LOCK,12MM | 92210 | 92210-1373 | 1 |
GUIDE-CHAIN,FR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,RR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,6.5X16X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,LOCK,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
