Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

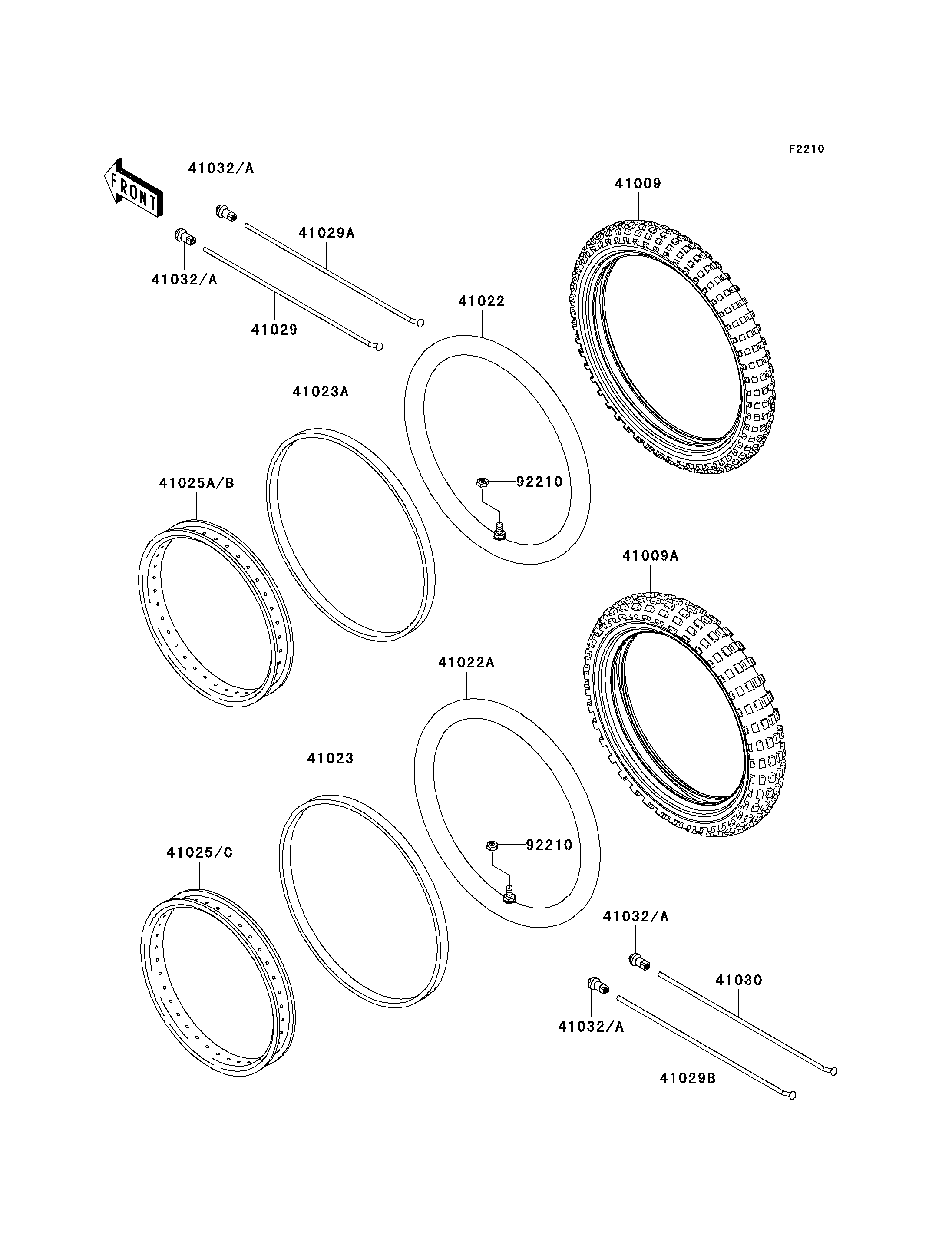

41009
41009A
41022
41022A
41023
41023A
41025B
41025C
41029
41029A
41029B
41030
41032A
41032A
41032A
41032A
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,2.50-14 4PR,C-803(CHEN | 41009 | 41009-1404 | 1 | ||
TIRE,RR,3.00-12 4PR,C-803(CHEN | 41009A | 41009-1405 | 1 | ||
TUBE-TIRE,2.50-14(CHENG SHIN) | 41022 | 41022-1239 | 1 | ||
TUBE-TIRE,3.00-12(CHENG SHIN) | 41022A | 41022-1240 | 1 | ||
BAND-RIM,80/100-12(D) | 41023 | 41023-1066 | 1 | ||
BAND-RIM,80/100-14(D) | 41023A | 41023-1068 | 1 | ||
RIM,FR,1.40X14 | 41025B | 41025-1070 | 1 | ||
RIM,RR,1.60X12 | 41025C | 41025-1434 | 1 | ||
SPOKE-INNER,FR,144MMX118D | 41029 | 41029-1067 | 16 | ||
SPOKE-INNER,FR,133.5MMX97D | 41029A | 41029-1068 | 16 | ||
SPOKE-INNER,RR,98MMX105.5D | 41029B | 41029-1329 | 18 | ||
SPOKE-OUTER,RR,98MMX77.5D | 41030 | 41030-1182 | 18 | ||
NIPPLE-SPOKE | 41032A | 41032-1055 | 68 | ||
NUT | 92210 | 92210-1371 | 2 |
TIRE,FR,2.50-14 4PR,C-803(CHEN | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,3.00-12 4PR,C-803(CHEN | |
REF # | 41009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,2.50-14(CHENG SHIN) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,3.00-12(CHENG SHIN) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,80/100-12(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,80/100-14(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.40X14 | |
REF # | 41025B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,1.60X12 | |
REF # | 41025C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,144MMX118D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,133.5MMX97D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,98MMX105.5D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,98MMX77.5D | |
REF # | 41030 |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE | |
REF # | 41032A |
---|---|
PART NUMBER | |
QUANTITY | 68 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
