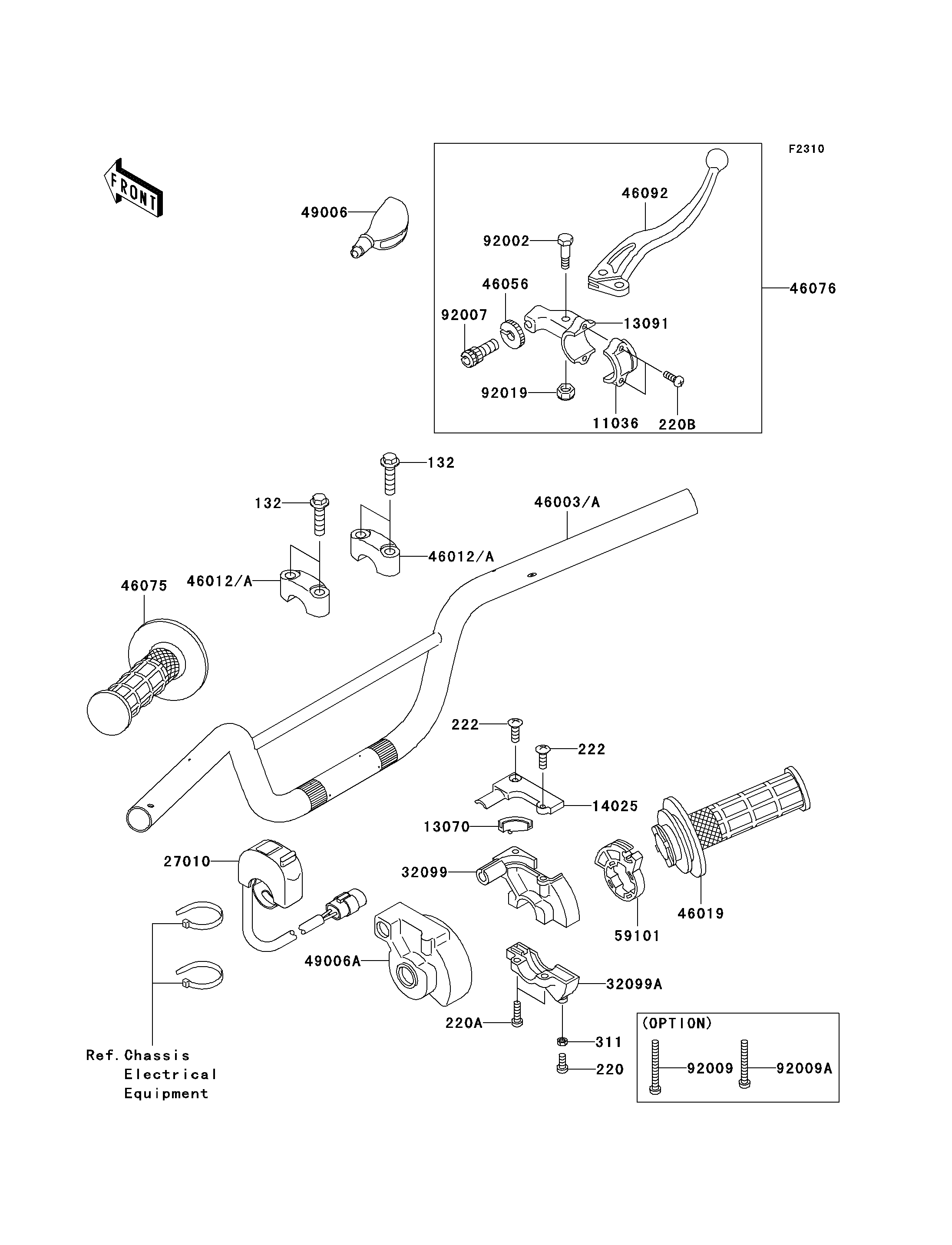

Parts Diagrams |
132
132
220
220A
220B
222
222
311
11036
13070
13091
14025
27010
32099
32099A
46003A
46012A
46012A
46019
46056
46075
46076
46092
49006
49006A
59101
92002
92007
92009
92009A
92019
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0830 | 4 | ||
SCREW-PAN-CROS,5X12,BLACK | 220 | 220C0512 | 1 | ||
SCREW-PAN-CROS,5X18 | 220A | 220C0518 | 2 | ||
SCREW-PAN-CROSS | 220B | 220F0514 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222E0412 | 2 | ||
NUT-HEX | 311 | 311C0500 | 1 | ||
BRACKET-A,LEVER HOLDER | 11036 | 11036-1297 | 1 | ||
GUIDE,THROTTLE PEACE | 13070 | 13070-1117 | 1 | ||
HOLDER,BRAKE LEVER | 13091 | 13091-1135 | 1 | ||
COVER,THROTTLE CASE UPP | 14025 | 14025-1646 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-1332 | 1 | ||
CASE,THROTTLE UPP | 32099 | 32099-1036 | 1 | ||
CASE,THROTTLE,LWR | 32099A | 32099-1220 | 1 | ||
HANDLE,SILVER | 46003A | 46003-1576-CE | 1 | ||
HOLDER-HANDLE,UPP | 46012A | 46012-1191 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
NUT,CABLE ADJUST | 46056 | 46056-006 | 1 | ||
GRIP,LH | 46075 | 46075-1024 | 1 | ||
LEVER-ASSY-GRIP,RH | 46076 | 46076-1107 | 1 | ||
LEVER-GRIP,BRAKE | 46092 | 46092-1048 | 1 | ||
BOOT,LEVER HOLDER | 49006 | 49006-1017 | 1 | ||
BOOT,THROTTLE CASE | 49006A | 49006-1097 | 1 | ||
REEL,THROTTLE | 59101 | 59101-1104 | 1 | ||
BOLT,LEVER SET | 92002 | 92002-1150 | 1 | ||
SCREW,CABLE ADJUST,7MM | 92007 | 92007-1143 | 1 | ||
SCREW,5X47 | 92009 | 92009-1989 | 1 | (OPTION) | |
SCREW,5X42 | 92009A | 92009-1998 | 1 | (OPTION) | |
NUT,LOCK,6MM | 92019 | 92019-008 | 1 |
