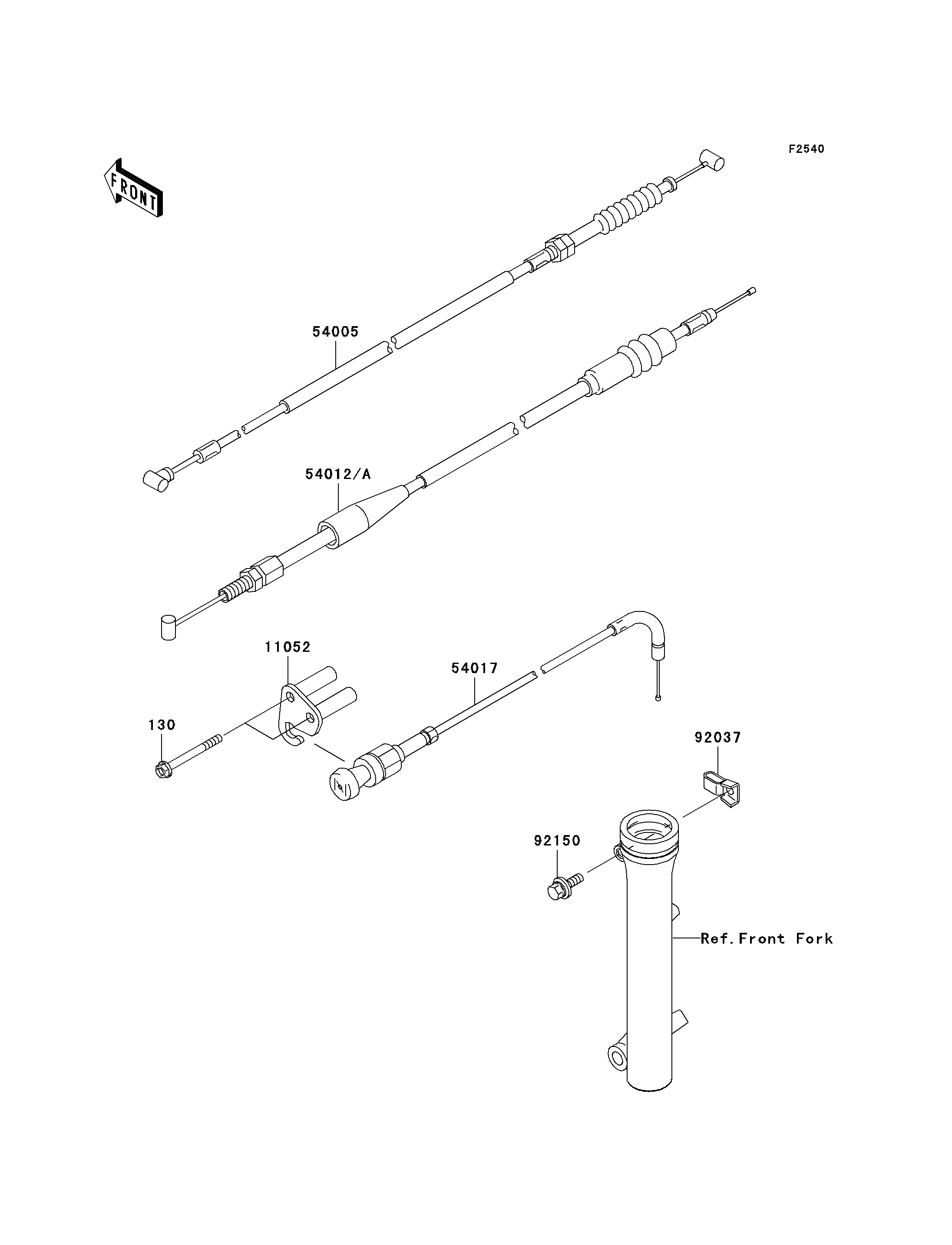

130
11052
54005
54012A
54017
92037
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130B0550 2
BRACKET,STARTER 11052 11052-1625 1
CABLE-BRAKE 54005 54005-1214 1
CABLE-THROTTLE 54012A 54012-1648 1
CABLE-STARTER 54017 54017-1218 1
CLAMP,BRAKE CABLE 92037 92037-1353 1
BOLT,FLANGED,6X16 92150 92150-1506 1
