Part Item Information

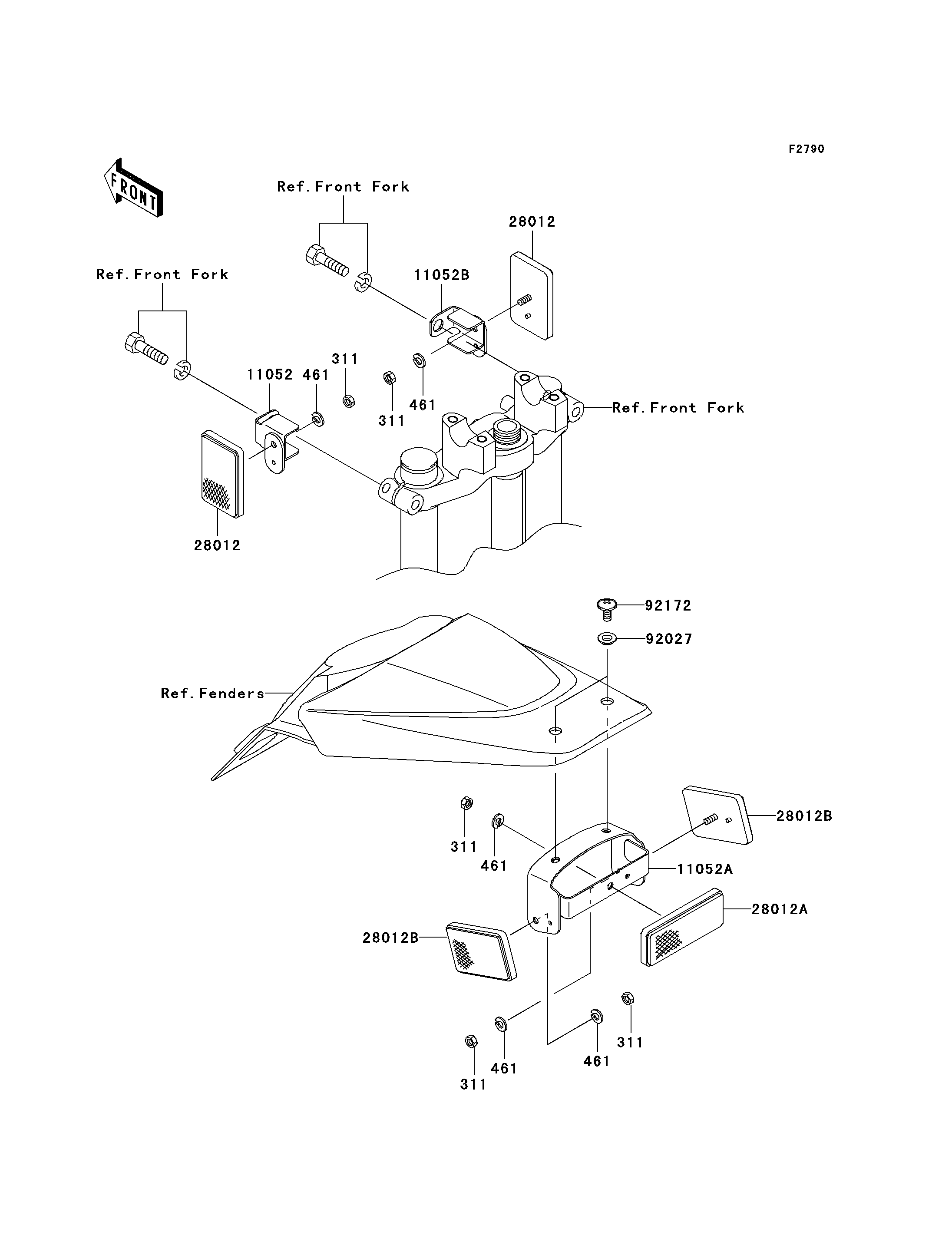

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX 311 311H0500 5 CN
WASHER-SPRING 461 461L0500 5 CN
BRACKET,FRONT REFLECTOR,LH 11052 11052-1751 1 CN
BRACKET,REAR REFLECTOR 11052A 11052-1752 1 CN
BRACKET,FRONT REFLECTOR,RH 11052B 11052-1821 1 CN
REFLECTOR-REFLEX 28012 28012-1003 2 CN
REFLECTOR-REFLEX 28012A 28012-1077 1 CN
REFLECTOR-REFLEX 28012B 28012-1088 2 CN
COLLAR,L=3.5 92027 92027-1018 2 CN
SCREW,6X14 92172 92172-0107 2 CN
