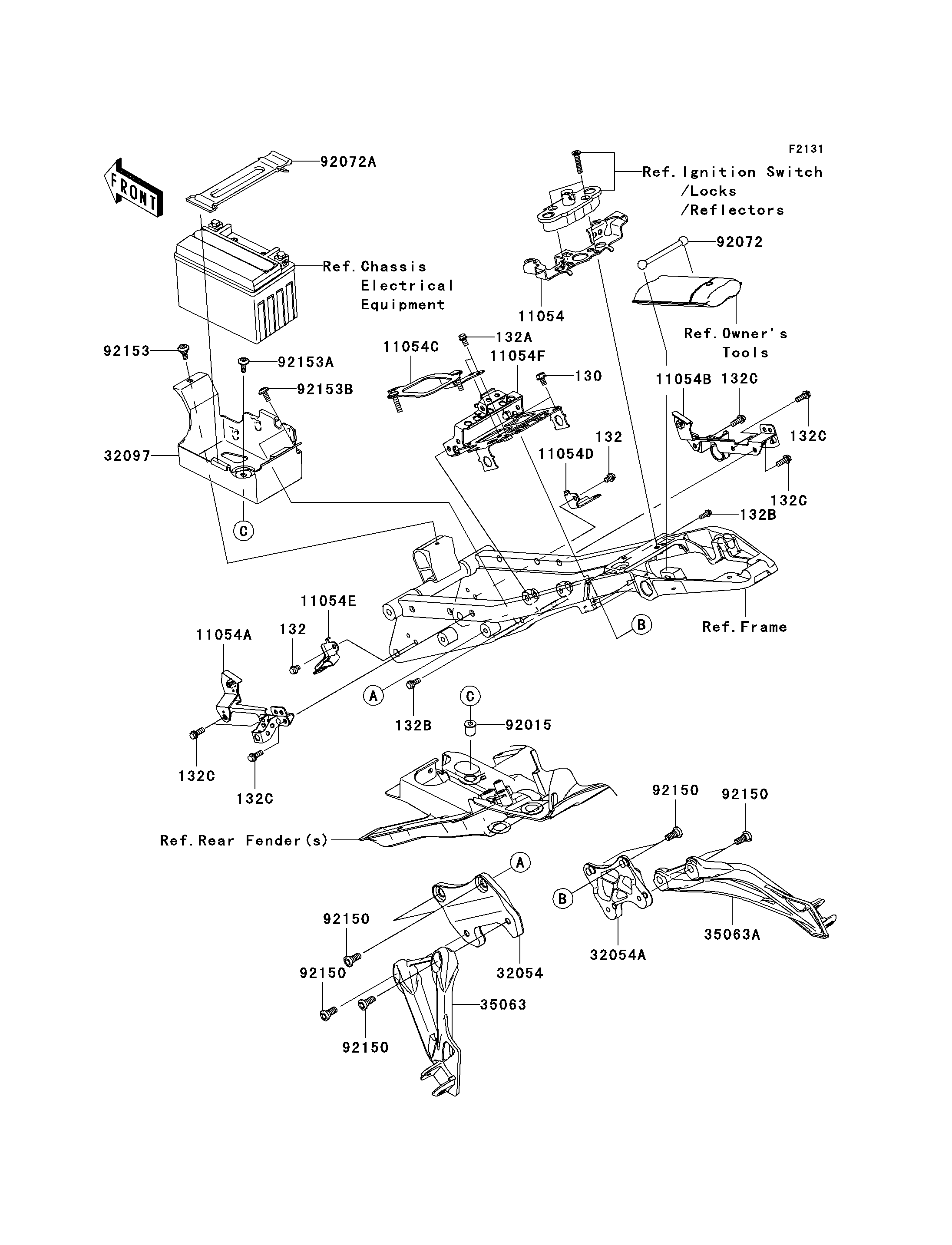

2008 Ninja® ZX™-6R - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132A
132B
132B
132C
132C
132C
132C
132C
11054
11054A
11054B
11054C
11054D
11054E
11054F
32054
32054A
32097
35063
35063A
92015
92072
92072A
92150
92150
92150
92150
92150
92153
92153A
92153B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED-SMALL,6X8 132 132BA0608 2
BOLT-FLANGED-SMALL,6X10 132A 132BA0610 2
BOLT-FLANGED-SMALL,6X14 132B 132BA0614 2
BOLT-FLANGED-SMALL,6X16 132C 132BA0616 6
BRACKET,HELMET HOLDER 11054 11054-1421 1
BRACKET,SEAT,LH 11054A 11054-1477 1
BRACKET,SEAT,RH 11054B 11054-1480 1
BRACKET,MOTOR 11054C 11054-1483 1
BRACKET,RR FENDER,FR,RH 11054D 11054-1519 1
BRACKET,FUEL PUMP COUPLER 11054E 11054-1770 1
BRACKET,ECU 11054F 11054-1841 1
BRACKET-STEP,RR,LH 32054 32054-0034 1
BRACKET-STEP,RR,RH 32054A 32054-0035 1
CASE-BATTERY 32097 32097-0025 1
STAY,RR,LH,F.BLACK 35063 35063-0144-W9 1
STAY,RR,RH,F.BLACK 35063A 35063-0145-W9 1
NUT 92015 92015-1700 1
BAND,TOOL 92072 92072-0078 1
BAND,L=150 92072A 92072-1338 1
BOLT,SOCKET,8X20 92150 92150-1760 8
BOLT,SOCKET,6MM 92153 92153-0489 1
BOLT,SOCKET,6X16 92153A 92153-1526 1
BOLT,SOCKET,6X14 92153B 92153-1612 2
