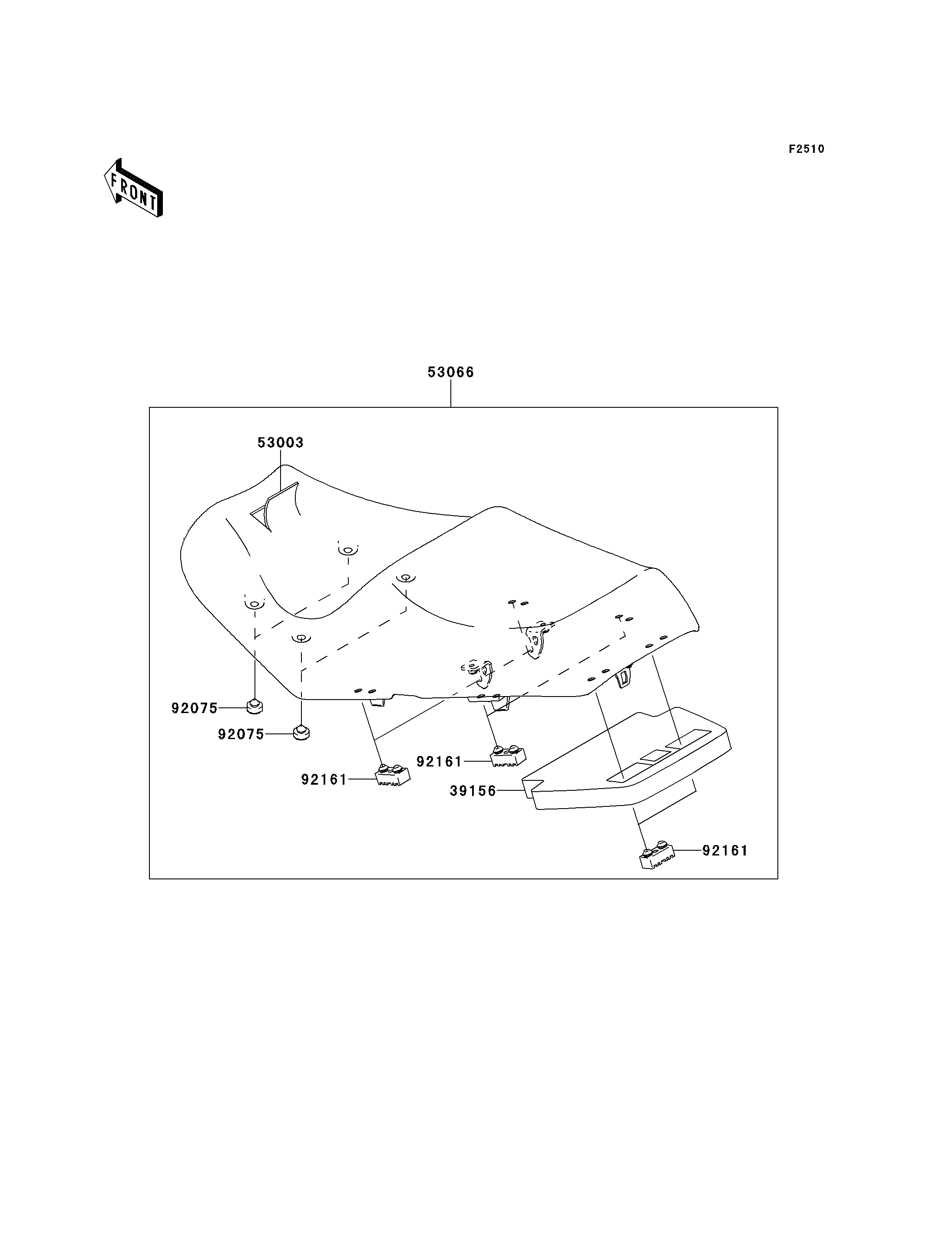

39156
53003
53066
92075
92075
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,SEAT 39156 39156-0396 1
LEATHER,SEAT,BLACK/GRAY 53003 53003-0101-13D 1
SEAT-ASSY,DUAL,BLACK/GRAY 53066 53066-0200-13D 1
DAMPER 92075 92075-1927 4
DAMPER,SEAT 92161 92161-0050 6
