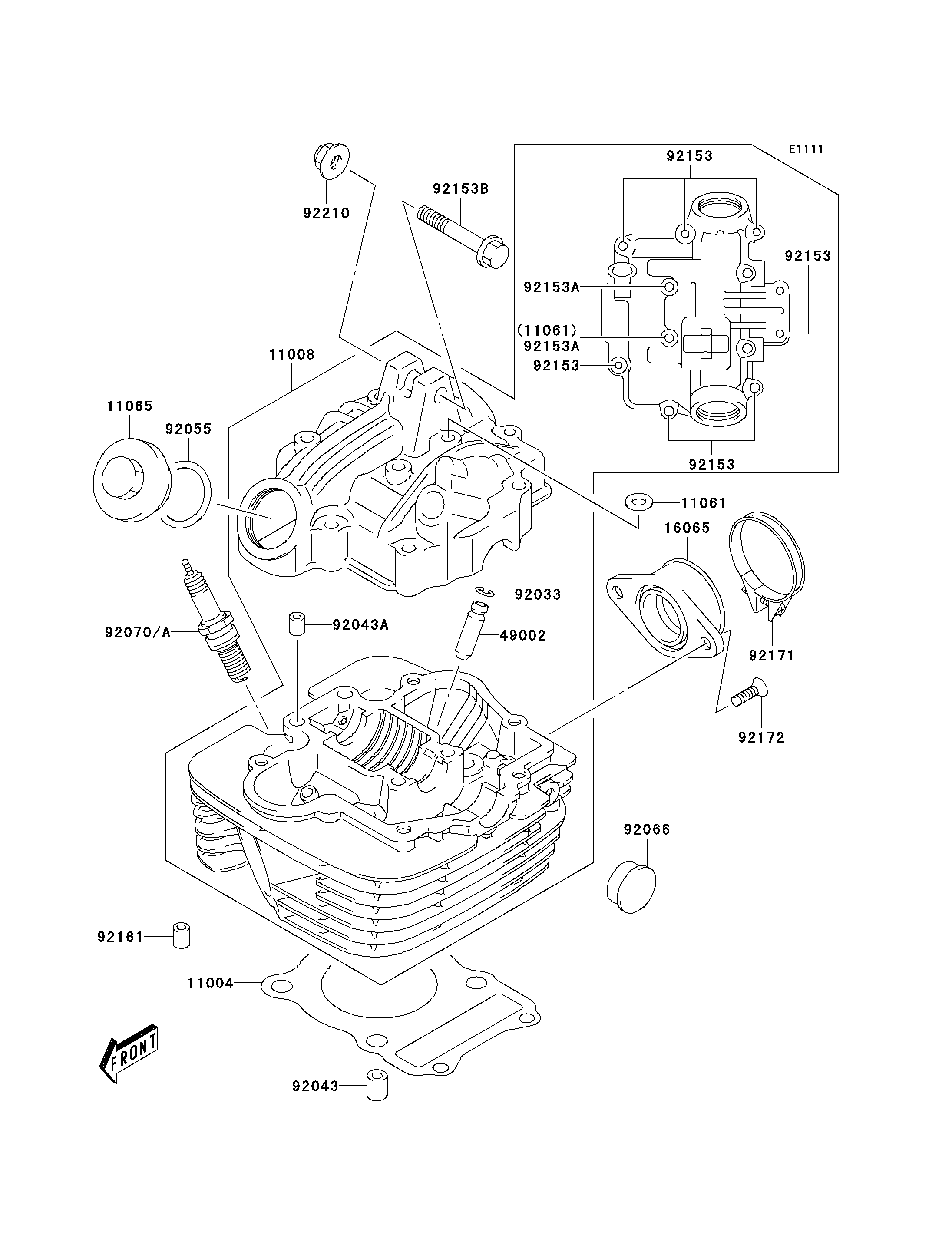

2006 KLX125 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11061
11065
16065
49002
92033
92043
92043A
92055
92066
92070
92070A
92153
92153
92153
92153
92153A
92153A
92153B
92161
92171
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-S003 1
HEAD-COMP-CYLINDER 11008 11008-S003 1
GASKET,5.8X13X1.2 11061 11061-S001 1
CAP,INSPECTION 11065 11065-S014 2
HOLDER-CARBURETOR 16065 16065-S005 1
GUIDE-VALVE 49002 49002-S002 2
RING-SNAP 92033 92033-S021 2
PIN 92043 92043-S002 2
PIN,6.2X8X11 92043A 92043-S004 2
RING-O,D=3 92055 92055-S036 2
PLUG 92066 92066-S014 1
PLUG-SPARK,X24ESR-U(DN) 92070 92070-S013 1
PLUG-SPARK,DR8EA(NGK) 92070A 92070-S014 1
BOLT 92153 92153-S130 8
BOLT 92153A 92153-S131 2
BOLT 92153B 92153-S176 1
DAMPER,CYLINDER HEAD 92161 92161-S056 6
CLAMP,INTAKE PIPE 92171 92171-S049 1
SCREW 92172 92172-S008 2
NUT 92210 92210-S094 1
