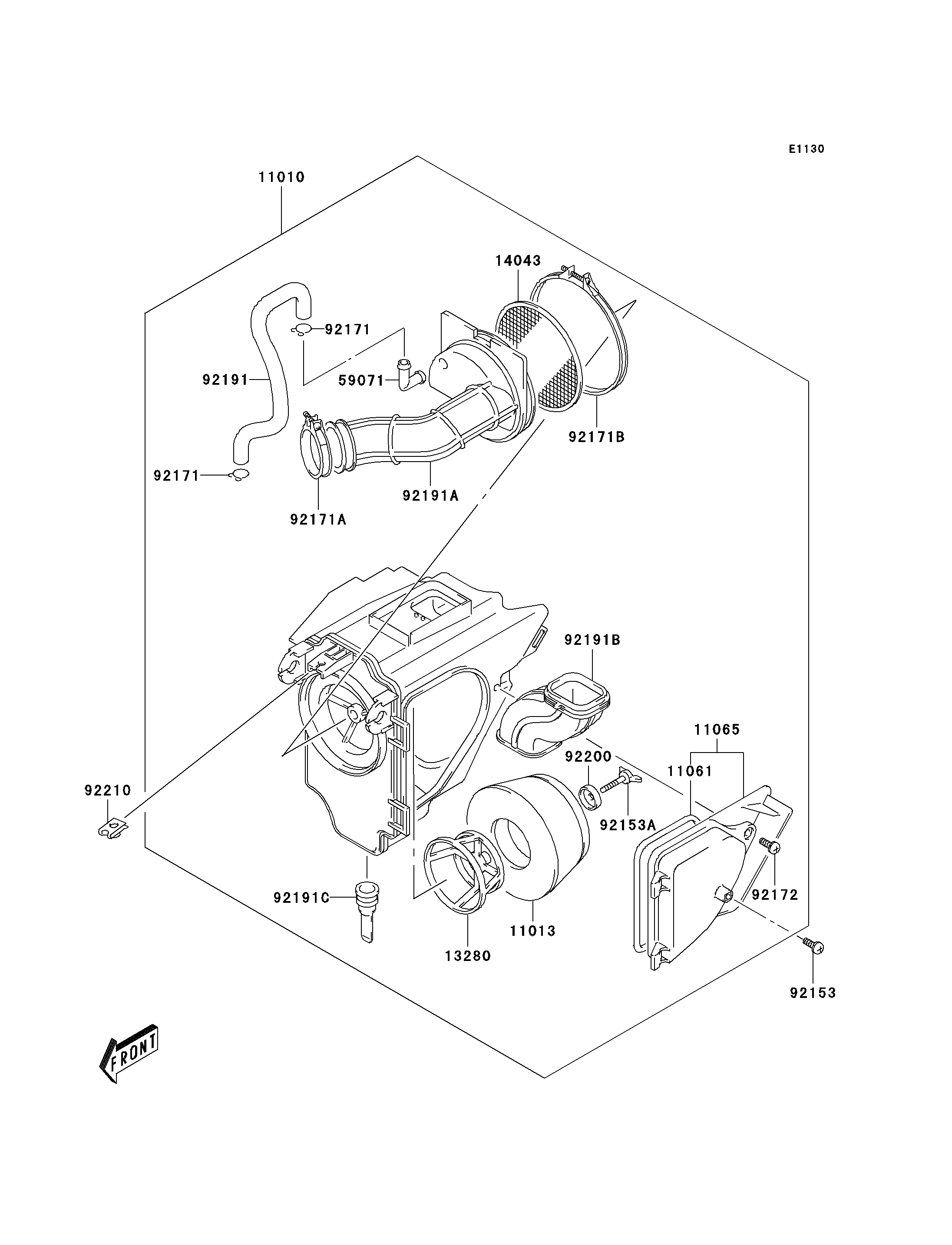

Parts Diagrams |
11010
11013
11061
11065
13280
14043
59071
92153
92153A
92171
92171
92171A
92171B
92172
92191
92191A
92191B
92191C
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR | 11010 | 11010-S007 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-S004 | 1 | ||
| GASKET | 11061 | 11061-S039 | 1 | ||
| CAP,AIR CLEANER | 11065 | 11065-S033 | 1 | ||
| HOLDER,FILTER | 13280 | 13280-S014 | 1 | ||
| FILTER | 14043 | 14043-S003 | 1 | ||
| JOINT | 59071 | 59071-S003 | 1 | ||
| BOLT | 92153 | 92153-S011 | 1 | ||
| BOLT | 92153A | 92153-S165 | 1 | ||
| CLAMP | 92171 | 92171-S006 | 2 | ||
| CLAMP | 92171A | 92171-S009 | 1 | ||
| CLAMP,OUTLET TUBE | 92171B | 92171-S054 | 1 | ||
| SCREW | 92172 | 92172-S163 | 1 | ||
| TUBE,BREATHER | 92191 | 92191-S030 | 1 | ||
| TUBE,OUTLET | 92191A | 92191-S032 | 1 | ||
| TUBE,INLET | 92191B | 92191-S033 | 1 | ||
| TUBE,DRAIN | 92191C | 92191-S043 | 1 | ||
| WASHER | 92200 | 92200-S076 | 1 | ||
| NUT | 92210 | 92210-S050 | 1 |
| FILTER-ASSY-AIR | |
| REF # | 11010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,FILTER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER | |
| REF # | 14043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,OUTLET TUBE | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,OUTLET | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,INLET | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
