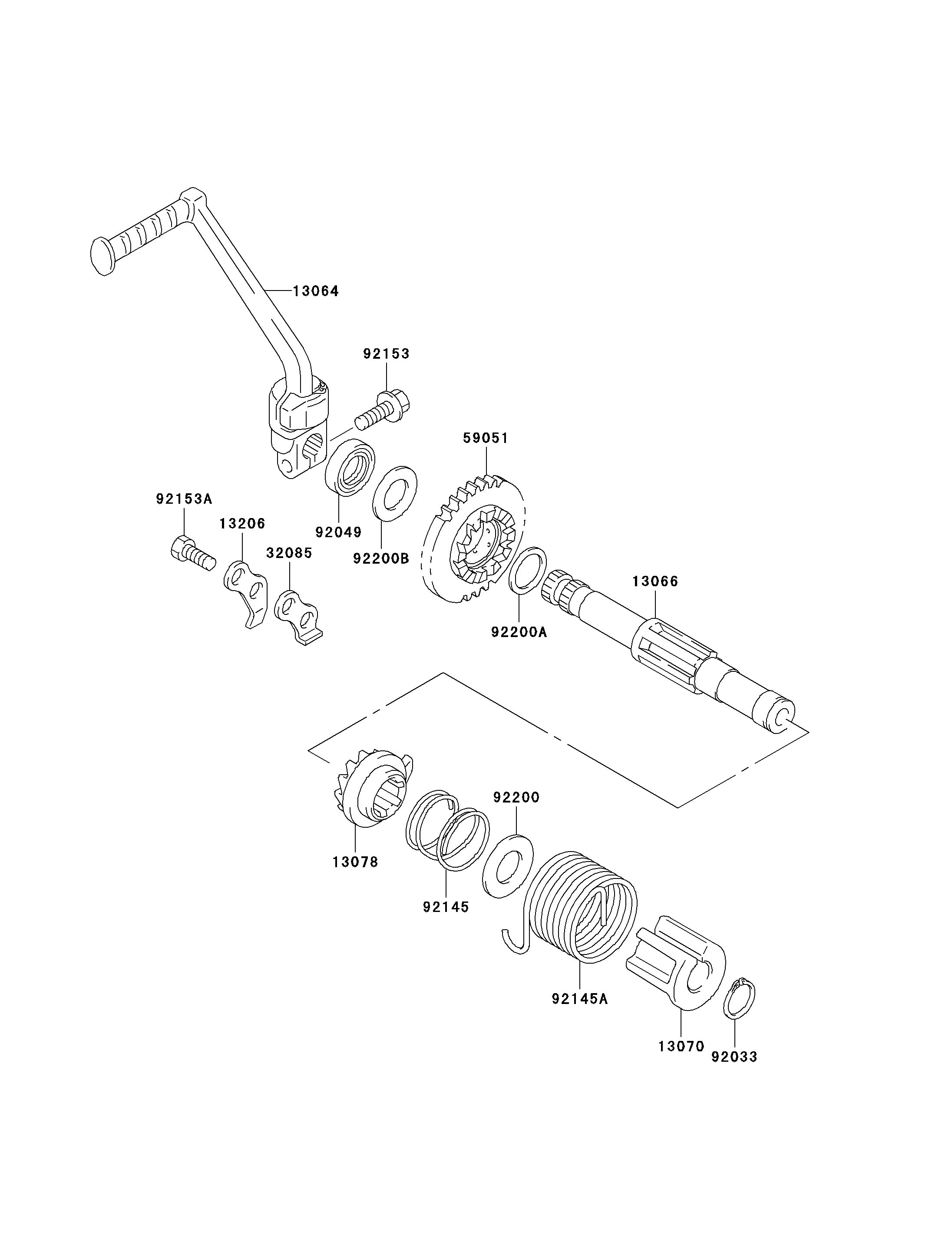

13064
13066
13070
13078
13206
32085
59051
92033
92049
92145
92145A
92153
92153A
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY-KICK 13064 13064-S002 1
SHAFT-KICK 13066 13066-S001 1
GUIDE,KICK STARTER SHAFT 13070 13070-S006 1
RATCHET,KICK 13078 13078-S001 1
GUIDE-KICK,KICK STARTER 13206 13206-S001 1
STOPPER 32085 32085-S003 1
GEAR-SPUR,KICK STARTER DRIVE 59051 59051-S002 1
RING-SNAP 92033 92033-S034 1
SEAL-OIL 92049 92049-S023 1
SPRING 92145 92145-S042 1
SPRING 92145A 92145-S045 1
BOLT 92153 92153-S142 1
BOLT 92153A 92153-S482 2
WASHER 92200 92200-S054 1
WASHER 92200A 92200-S063 1
WASHER,16X30X1 92200B 92200-S073 1
