Parts Diagrams |
11061
11061
11065
11065
11065A
11065A
13168
13168
13271
13271
13280
13280
13280A
13280A
15003
15003
16005
16005
16005A
16005A
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16035
16035
16126
16126
16159
16159
16187
16187
43028
43028
43058
43058
43058A
43058A
43058B
43058B
49123
49123
92005
92005
92033
92033
92043
92043
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92063
92063
92064
92064
92066
92066
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92145D
92145D
92145E
92145E
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
92171C
92171C
92172
92172
92172A
92172A
92172B
92172B
92172C
92172C
92172D
92172D
92191
92191
92191A
92191A
92191B
92191B
92191B
92191B
92191C
92191C
92200
92200
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200D
92200D

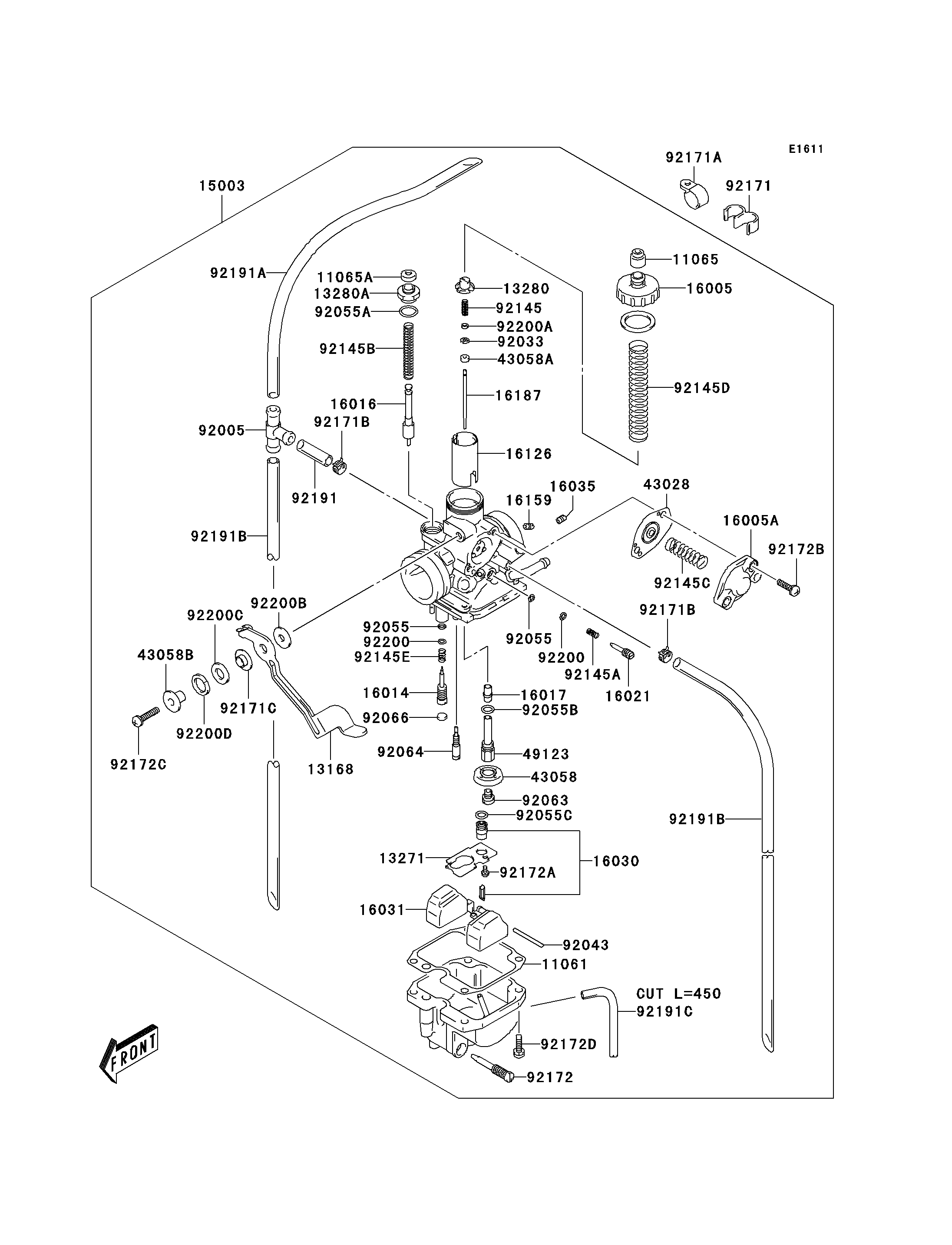

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET | 11061 | 11061-S052 | 1 | ||
CAP | 11065 | 11065-S020 | 1 | ||
CAP | 11065A | 11065-S031 | 1 | ||
LEVER | 13168 | 13168-S001 | 1 | ||
PLATE | 13271 | 13271-S036 | 1 | ||
HOLDER | 13280 | 13280-S015 | 1 | ||
HOLDER | 13280A | 13280-S021 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-S003 | 1 | ||
TOP-CHAMBER | 16005 | 16005-S003 | 1 | ||
TOP-CHAMBER | 16005A | 16005-S004 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-S003 | 1 | ||
PLUNGER | 16016 | 16016-S006 | 1 | ||
JET-NEEDLE | 16017 | 16017-S002 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-S002 | 1 | ||
VALVE-FLOAT | 16030 | 16030-S003 | 1 | ||
FLOAT | 16031 | 16031-S003 | 1 | ||
JET-AIR,#85 | 16035 | 16035-S002 | 1 | ||
VALVE,PISTON | 16126 | 16126-S005 | 1 | ||
JET-POWER,POWER,145 | 16159 | 16159-S001 | 1 | ||
NEEDLE-JET | 16187 | 16187-S003 | 1 | ||
DIAPHRAGM | 43028 | 43028-S008 | 1 | ||
RING | 43058 | 43058-S002 | 1 | ||
RING | 43058A | 43058-S005 | 1 | ||
RING | 43058B | 43058-S006 | 1 | ||
HOLDER-MAIN JET | 49123 | 49123-S003 | 1 | ||
FITTING | 92005 | 92005-S004 | 1 | ||
RING-SNAP | 92033 | 92033-S033 | 1 | ||
PIN | 92043 | 92043-S034 | 1 | ||
RING-O | 92055 | 92055-S013 | 2 | ||
RING-O | 92055A | 92055-S048 | 1 | ||
RING-O | 92055B | 92055-S049 | 1 | ||
RING-O | 92055C | 92055-S050 | 1 | ||
JET-MAIN | 92063 | 92063-S005 | 1 | ||
JET-PILOT,#17.5 | 92064 | 92064-S003 | 1 | ||
PLUG | 92066 | 92066-S027 | 1 | ||
SPRING | 92145 | 92145-S013 | 1 | ||
SPRING | 92145A | 92145-S054 | 1 | ||
SPRING | 92145B | 92145-S055 | 1 | ||
SPRING | 92145C | 92145-S056 | 1 | ||
SPRING | 92145D | 92145-S057 | 1 | ||
SPRING | 92145E | 92145-S088 | 1 | ||
CLAMP,AIR VENT HOSE | 92171 | 92171-S052 | 1 | ||
CLAMP | 92171A | 92171-S060 | 1 | ||
CLAMP | 92171B | 92171-S061 | 2 | ||
CLAMP | 92171C | 92171-S083 | 1 | ||
SCREW | 92172 | 92172-S113 | 1 | ||
SCREW | 92172A | 92172-S114 | 1 | ||
SCREW | 92172B | 92172-S115 | 2 | ||
SCREW | 92172C | 92172-S116 | 1 | ||
SCREW | 92172D | 92172-S139 | 4 | ||
TUBE,5X8X25 | 92191 | 92191-S035 | 1 | ||
TUBE,5X8X375 | 92191A | 92191-S036 | 1 | ||
TUBE,5X8X475 | 92191B | 92191-S037 | 2 | ||
TUBE | 92191C | 92191-S053 | 1 | ||
WASHER | 92200 | 92200-S019 | 2 | ||
WASHER | 92200A | 92200-S082 | 1 | ||
WASHER | 92200B | 92200-S122 | 1 | ||
WASHER | 92200C | 92200-S123 | 1 | ||
WASHER | 92200D | 92200-S124 | 1 |
