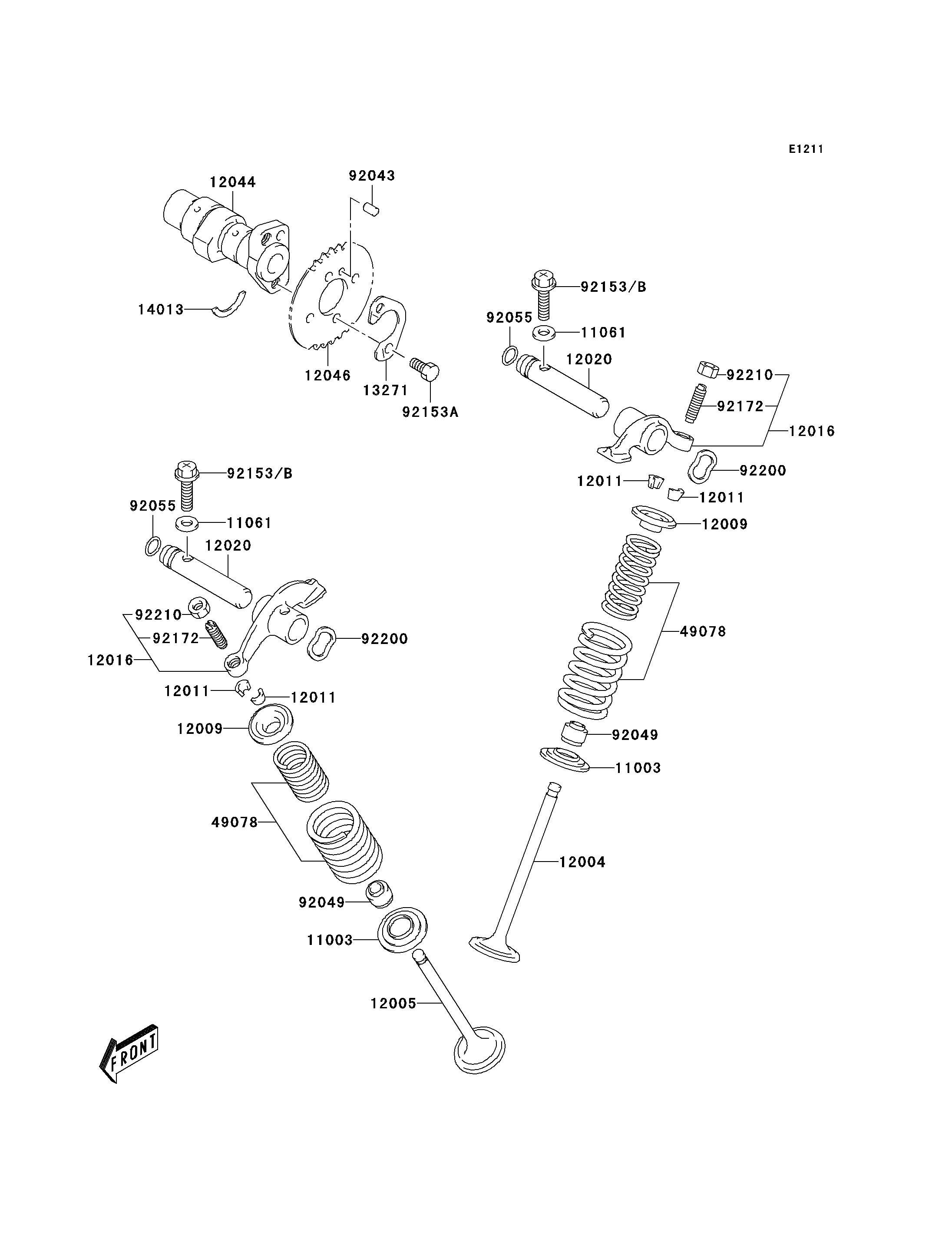

2004 KLX125L - Valve(s)/Camshaft(s)

DOWNLOAD PDF
SELECT A NEW PART
11003
11003
11061
11061
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
12044
12046
13271
14013
49078
49078
92043
92049
92049
92055
92055
92153A
92153B
92153B
92172
92172
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-VALVE 11003 11003-S002 2
GASKET,5.8X13X1.2 11061 11061-S001 2
VALVE-INTAKE 12004 12004-S003 1
VALVE-EXHAUST 12005 12005-S003 1
RETAINER-VALVE SPRING 12009 12009-S002 2
COLLET 12011 12011-S002 4
ARM-ROCKER 12016 12016-S005 2
SHAFT-ROCKER 12020 12020-S003 2
CAMSHAFT-VALVE 12044 12044-S002 1
SPROCKET,CAMSHAFT 12046 12046-S004 1
PLATE 13271 13271-S018 1
RING-POSITION,CAMSHAFT 14013 14013-S001 1
SPRING-ENGINE VALVE 49078 49078-S002 2
PIN,5X8 92043 92043-S008 1
SEAL-OIL 92049 92049-S021 2
RING-O,D=1.9 92055 92055-S033 2
BOLT 92153A 92153-S099 2
BOLT 92153B 92153-S133 2
SCREW 92172 92172-S096 2
WASHER 92200 92200-S057 2
NUT 92210 92210-S049 2
