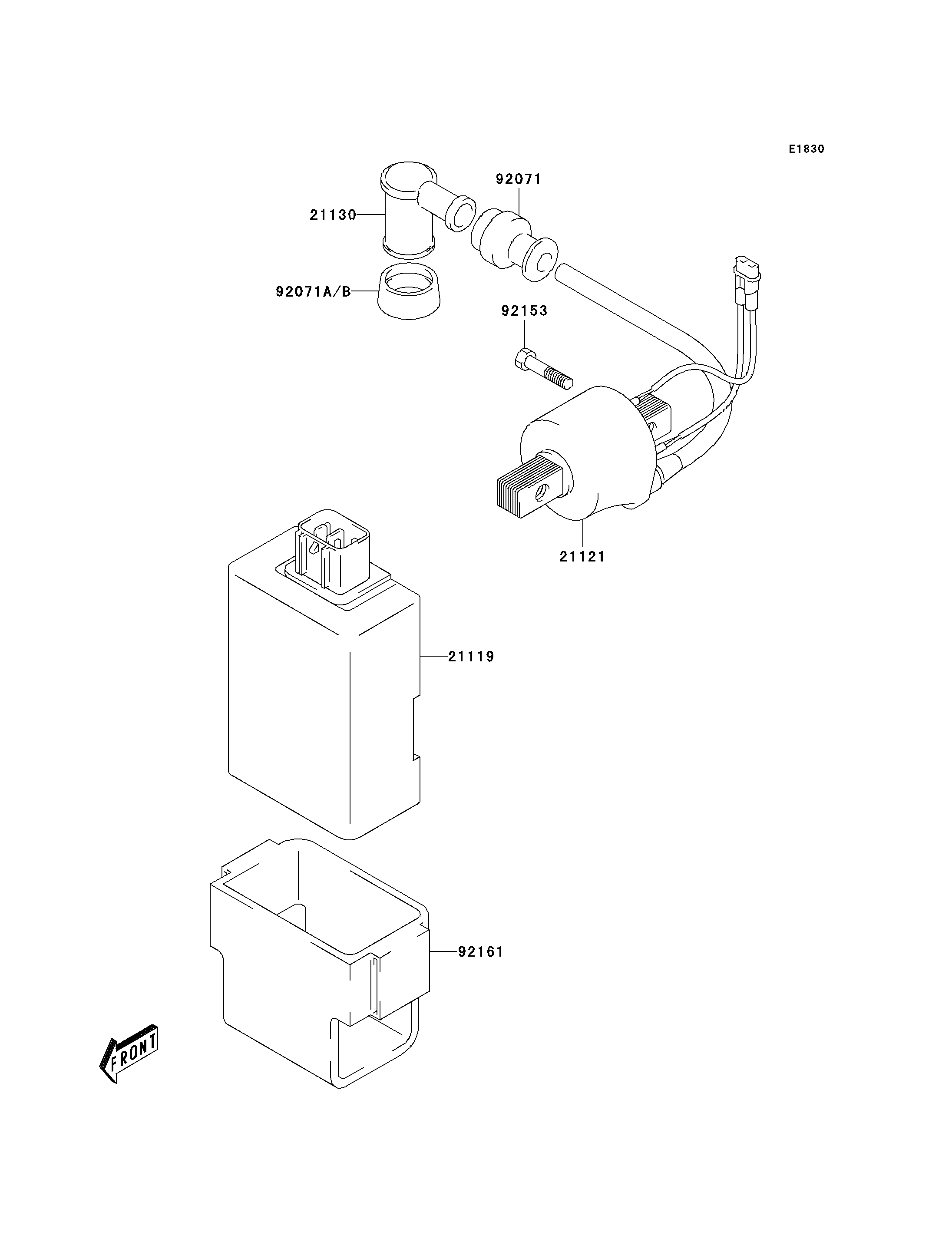

21119
21121
21130
92071
92071A
92153
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-S003 1
COIL-IGNITION 21121 21121-S003 1
CAP-SPARK PLUG 21130 21130-S003 1
GROMMET,HIGHTENSION 92071 92071-S004 1
GROMMET,SPARK PLUG CAP 92071A 92071-S005 1
BOLT 92153 92153-S002 2
DAMPER 92161 92161-S058 1
