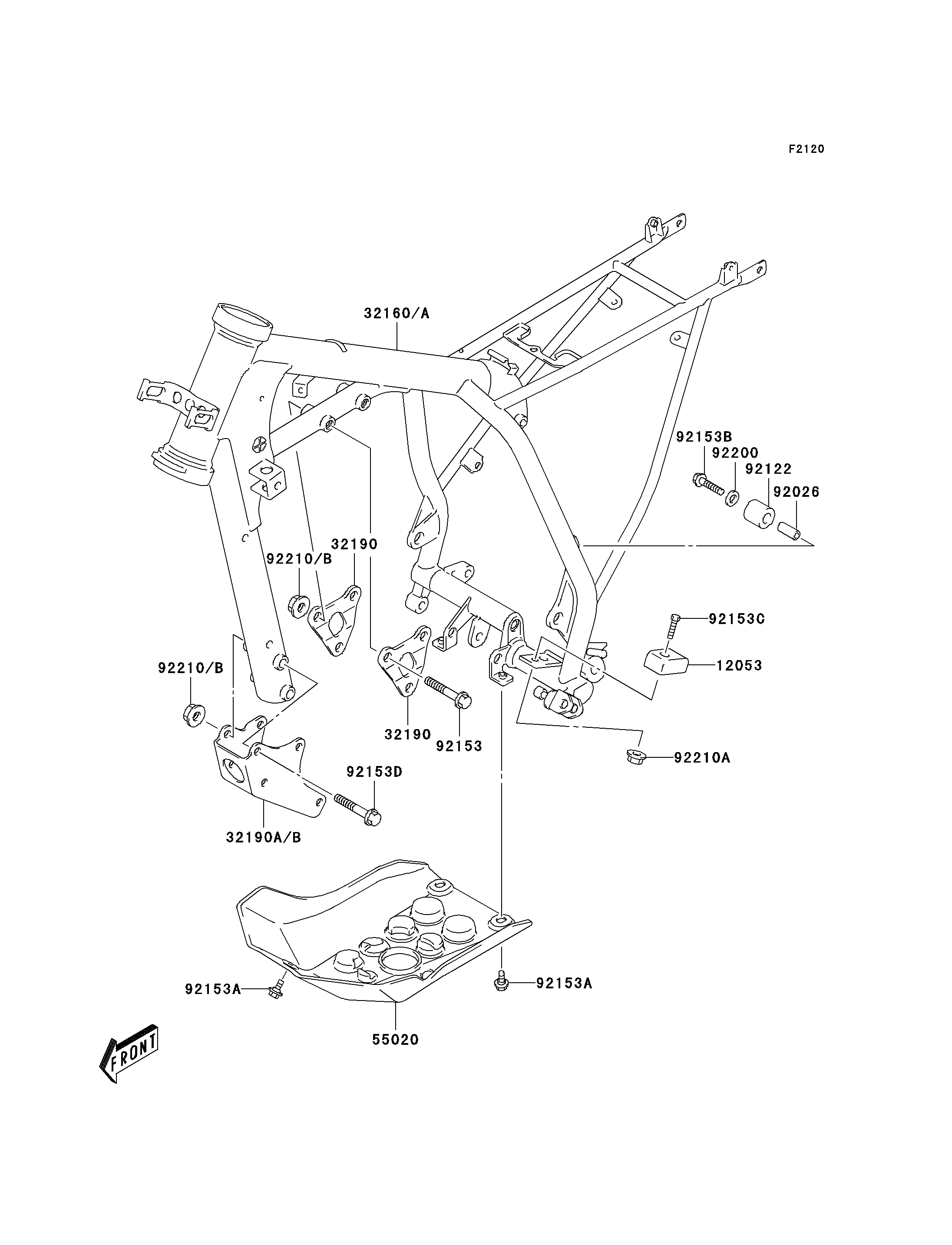

Parts Diagrams |
12053
32160
32190
32190
32190A
55020
92026
92122
92153
92153A
92153A
92153B
92153C
92153D
92200
92210A
92210B
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE-CHAIN | 12053 | 12053-S012 | 1 | ||
| FRAME-COMP,M.G.GRAY | 32160 | 32160-S003-548 | 1 | ||
| BRACKET-ENGINE | 32190 | 32190-S003 | 2 | ||
| BRACKET-ENGINE,M.G.GRAY | 32190A | 32190-S005-548 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-S004 | 1 | ||
| SPACER | 92026 | 92026-S053 | 1 | ||
| ROLLER,CHAIN CONTROL,UPP | 92122 | 92122-S006 | 1 | ||
| BOLT | 92153 | 92153-S151 | 2 | ||
| BOLT | 92153A | 92153-S161 | 3 | ||
| BOLT | 92153B | 92153-S183 | 1 | ||
| BOLT | 92153C | 92153-S184 | 1 | ||
| BOLT | 92153D | 92153-S188 | 2 | ||
| WASHER | 92200 | 92200-S125 | 1 | ||
| NUT | 92210A | 92210-S054 | 1 | ||
| NUT | 92210B | 92210-S094 | 4 |
