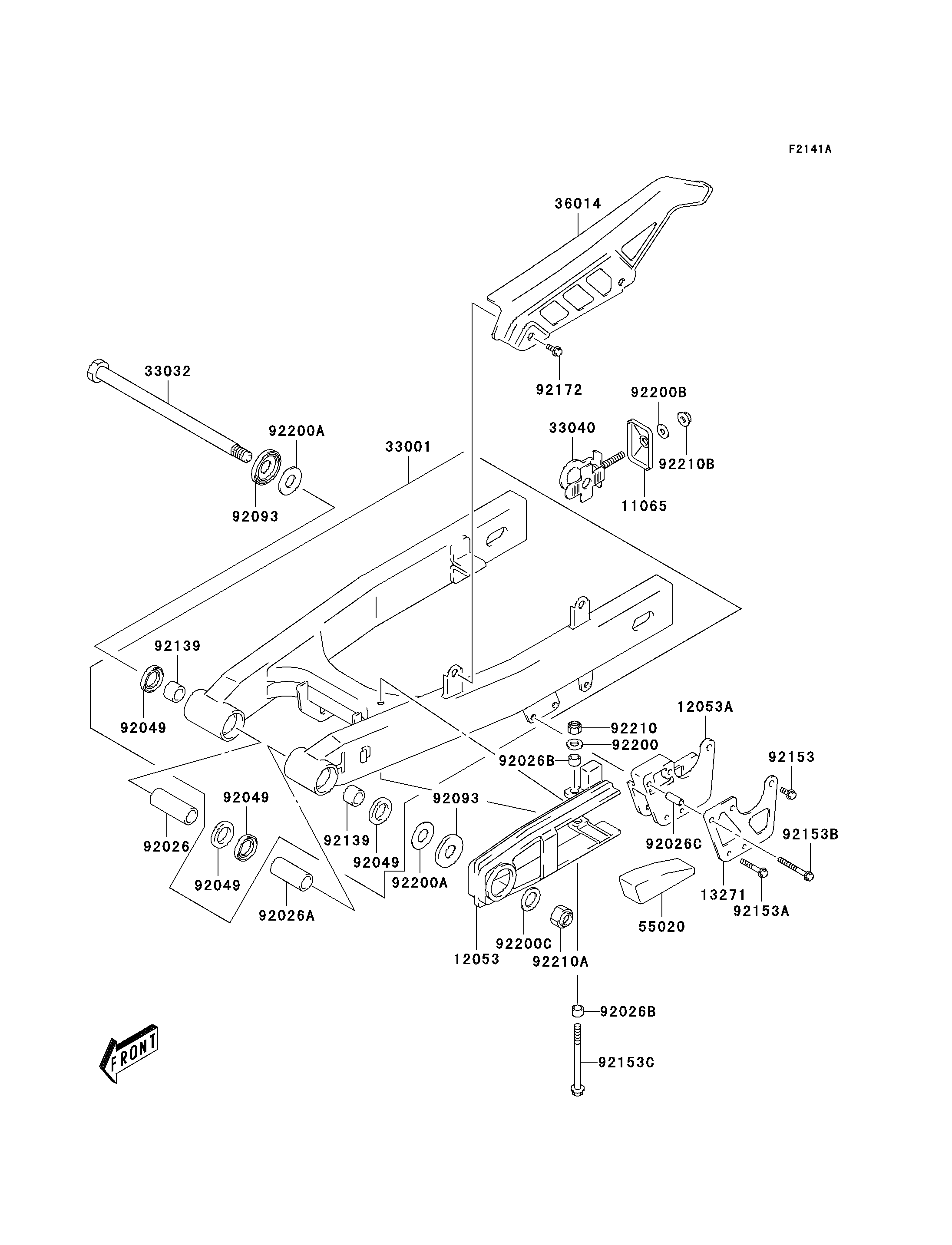

2004 KLX125L - Swingarm(B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
11065
12053
12053A
13271
33001
33032
33040
36014
55020
92026
92026A
92026B
92026B
92026C
92049
92049
92049
92049
92093
92093
92139
92139
92153
92153A
92153B
92153C
92172
92200
92200A
92200A
92200B
92200C
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAIN ADJUSTER GUIDE 11065 11065-S018 2
GUIDE-CHAIN 12053 12053-S008 1
GUIDE-CHAIN,CHAIN 12053A 12053-S011 1
PLATE,CHAIN,GUIDE 13271 13271-S023 1
ARM-COMP-SWING,B.SILVER 33001 33001-S004-530 1
SHAFT-SWING ARM 33032 33032-S001 1
ADJUSTER-CHAIN 33040 33040-S001 2
CASE-CHAIN 36014 36014-S001 1
GUARD,CHAIN,GUIDE 55020 55020-S007 1
SPACER,SWING ARM PIVOT,RH 92026 92026-S042 1
SPACER,SWING ARM PIVOT,LH 92026A 92026-S043 1
SPACER,CHAIN 92026B 92026-S052 2
SPACER,CHAIN GUIDE 92026C 92026-S054 2
SEAL-OIL,SWINGARM 92049 92049-S022 4
SEAL,REAR SWINGARM 92093 92093-S012 2
BUSHING,REAR SWINGARM PIVOT 92139 92139-S008 2
BOLT 92153 92153-S177 1
BOLT 92153A 92153-S178 2
BOLT 92153B 92153-S179 2
BOLT 92153C 92153-S243 1
SCREW,6X10 92172 92172-S099 2
WASHER 92200 92200-S003 1
WASHER 92200A 92200-S068 2
WASHER,12.5X26X2.3 92200B 92200-S070 2
WASHER,14.5X24X2.3 92200C 92200-S072 1
NUT 92210 92210-S024 1
NUT 92210A 92210-S057 1
NUT 92210B 92210-S094 2
