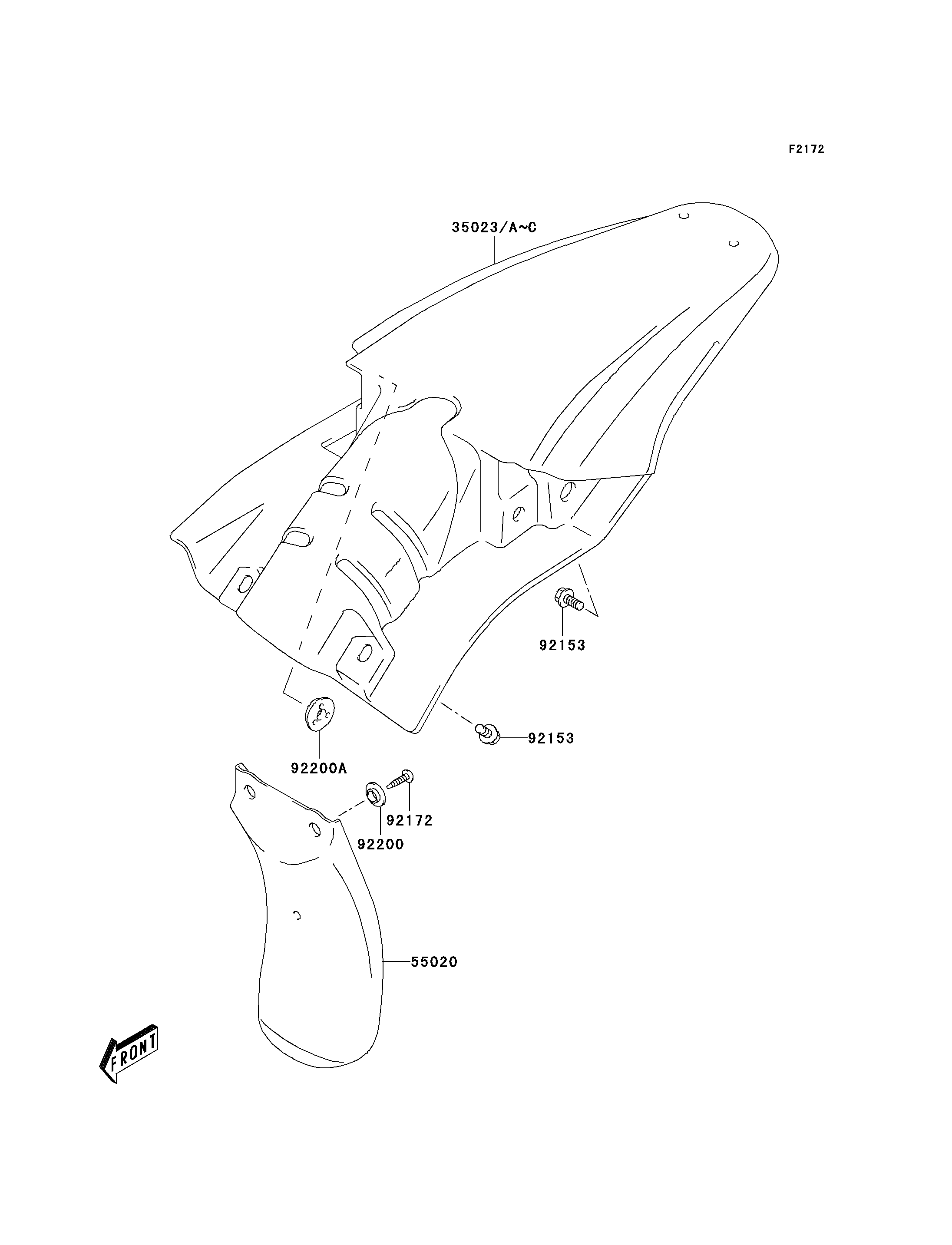

55020
92153
92153
92172
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,REAR FENDER,FR 55020 55020-S005 1
BOLT 92153 92153-S161 3
SCREW 92172 92172-S031 2
WASHER 92200 92200-S074 2
WASHER 92200A 92200-S075 1
FENDER-REAR,L.GREEN 35023 35023-S003-535 1 US
FENDER-REAR,L.GREEN 35023B 35023-S004-535 1 CN
