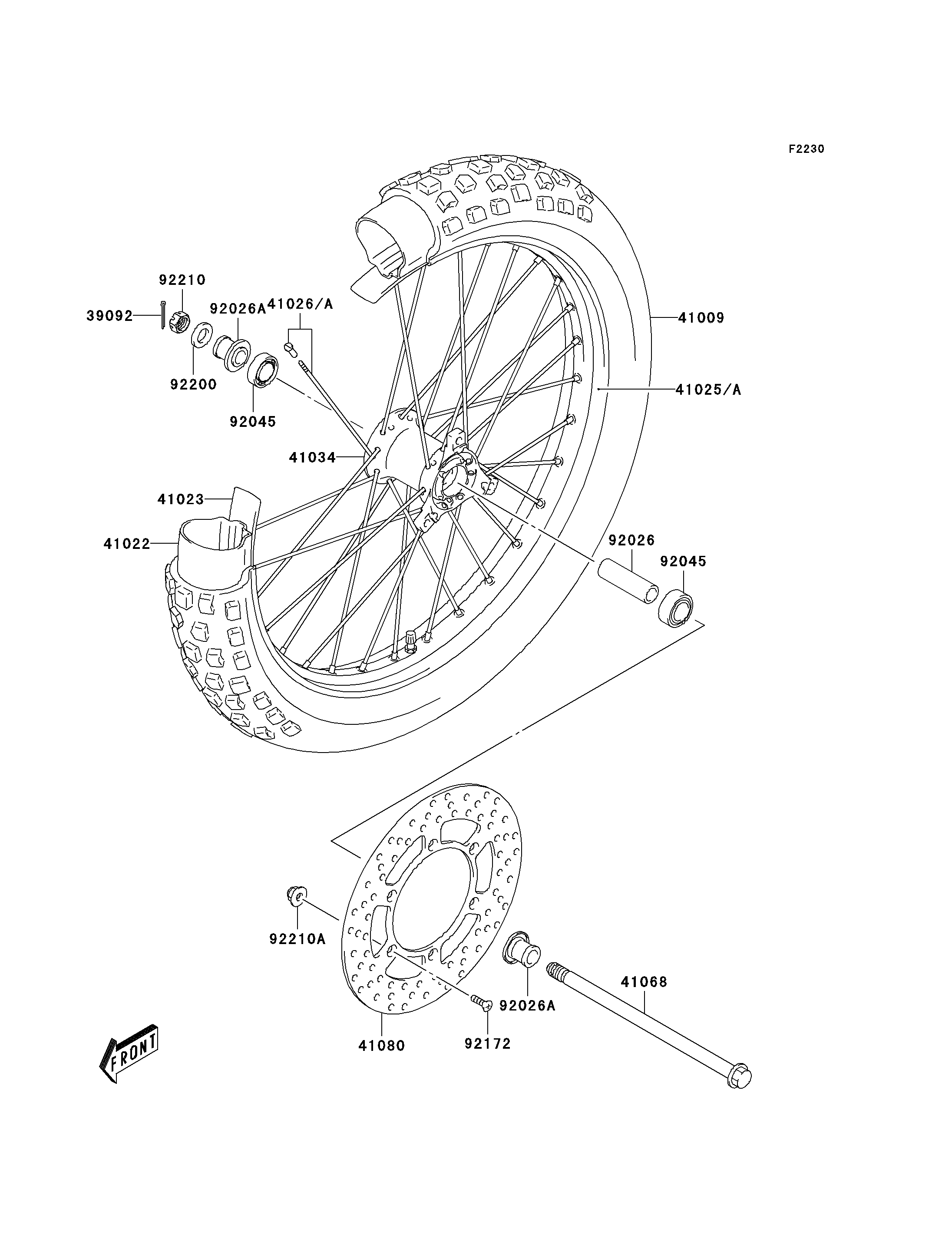

2004 KLX125L - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
39092
41009
41022
41023
41025A
41026A
41034
41068
41080
92026
92026A
92026A
92045
92045
92172
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-HAIR,COTTER 39092 39092-S005 1
TIRE,FR 41009 41009-S007 1
TUBE-TIRE 41022 41022-S003 1
BAND-RIM 41023 41023-S003 1
RIM 41025A 41025-S018 1
SPOKE-ASSY 41026A 41026-S012 1
DRUM-ASSY,FRONT WHEEL 41034 41034-S002 1
AXLE,FR 41068 41068-S005 1
DISC 41080 41080-S004 1
SPACER,FRONT HUB BEARING 92026 92026-S050 1
SPACER,FRONT AXLE 92026A 92026-S051 2
BEARING-BALL,FRONT HUB 92045 92045-S002 2
SCREW 92172 92172-S109 3
WASHER 92200 92200-S079 1
NUT 92210 92210-S064 1
NUT 92210A 92210-S066 3
