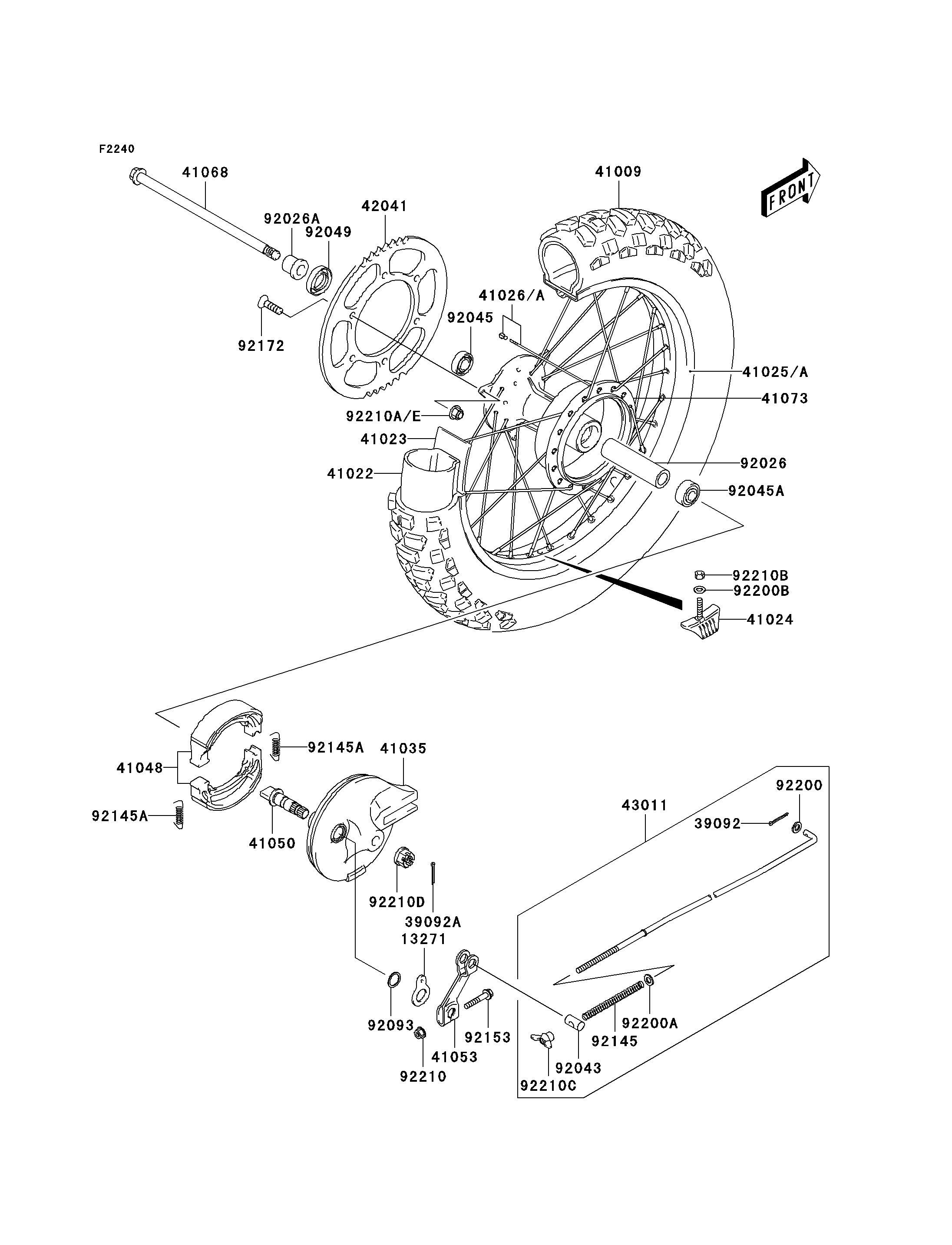

Parts Diagrams |
13271
39092
39092A
41009
41022
41023
41024
41025A
41026A
41035
41048
41050
41053
41068
41073
42041
43011
92026
92026A
92043
92045
92045A
92049
92093
92145
92145A
92145A
92153
92172
92200
92200A
92200B
92210
92210B
92210C
92210D
92210E
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PLATE,BRAKE LINING INDICATOR | 13271 | 13271-S022 | 1 | ||
PIN-HAIR,COTTER | 39092 | 39092-S005 | 1 | ||
PIN-HAIR,REAR AXLE COTTER | 39092A | 39092-S006 | 1 | ||
TIRE,RR | 41009 | 41009-S008 | 1 | ||
TUBE-TIRE | 41022 | 41022-S004 | 1 | ||
BAND-RIM | 41023 | 41023-S004 | 1 | ||
STOPPER-RIM | 41024 | 41024-S001 | 1 | ||
RIM | 41025A | 41025-S019 | 1 | ||
SPOKE-ASSY | 41026A | 41026-S013 | 1 | ||
PANEL-ASSY-BRAKE | 41035 | 41035-S002 | 1 | ||
SHOE-BRAKE | 41048 | 41048-S003 | 1 | ||
CAM-BRAKE | 41050 | 41050-S003 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-S003 | 1 | ||
AXLE,RR | 41068 | 41068-S004 | 1 | ||
DRUM-ASSY,REAR | 41073 | 41073-S010 | 1 | ||
SPROCKET-HUB,57T | 42041 | 42041-S003 | 1 | ||
ROD-BRAKE | 43011 | 43011-S002 | 1 | ||
SPACER,REAR HUB BEARING | 92026 | 92026-S006 | 1 | ||
SPACER,REAR AXLE | 92026A | 92026-S055 | 1 | ||
PIN,BRAKE ROD ADJUSTER | 92043 | 92043-S023 | 1 | ||
BEARING-BALL,REAR HUB,LH | 92045 | 92045-S029 | 1 | ||
BEARING-BALL,REAR HUB,RH | 92045A | 92045-S030 | 1 | ||
SEAL-OIL,REAR HUB | 92049 | 92049-S025 | 1 | ||
SEAL | 92093 | 92093-S008 | 1 | ||
SPRING,REAR BRAKE ROD | 92145 | 92145-S046 | 1 | ||
SPRING,REAR BRAKE SHOE | 92145A | 92145-S047 | 2 | ||
BOLT | 92153 | 92153-S130 | 1 | ||
SCREW,SPROCKET | 92172 | 92172-S111 | 4 | ||
WASHER | 92200 | 92200-S002 | 1 | ||
WASHER | 92200A | 92200-S003 | 1 | ||
WASHER | 92200B | 92200-S028 | 1 | ||
NUT | 92210 | 92210-S004 | 1 | ||
NUT | 92210B | 92210-S051 | 1 | ||
NUT | 92210C | 92210-S055 | 1 | ||
NUT | 92210D | 92210-S056 | 1 | ||
NUT | 92210E | 92210-S094 | 4 |
PLATE,BRAKE LINING INDICATOR | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-HAIR,COTTER | |
REF # | 39092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-HAIR,REAR AXLE COTTER | |
REF # | 39092A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-ASSY | |
REF # | 41026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-ASSY-BRAKE | |
REF # | 41035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOE-BRAKE | |
REF # | 41048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAM-BRAKE | |
REF # | 41050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE CAM | |
REF # | 41053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM-ASSY,REAR | |
REF # | 41073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,57T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-BRAKE | |
REF # | 43011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,REAR HUB BEARING | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,REAR AXLE | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,BRAKE ROD ADJUSTER | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,REAR HUB,LH | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,REAR HUB,RH | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,REAR HUB | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,REAR BRAKE ROD | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,REAR BRAKE SHOE | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SPROCKET | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210E |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
