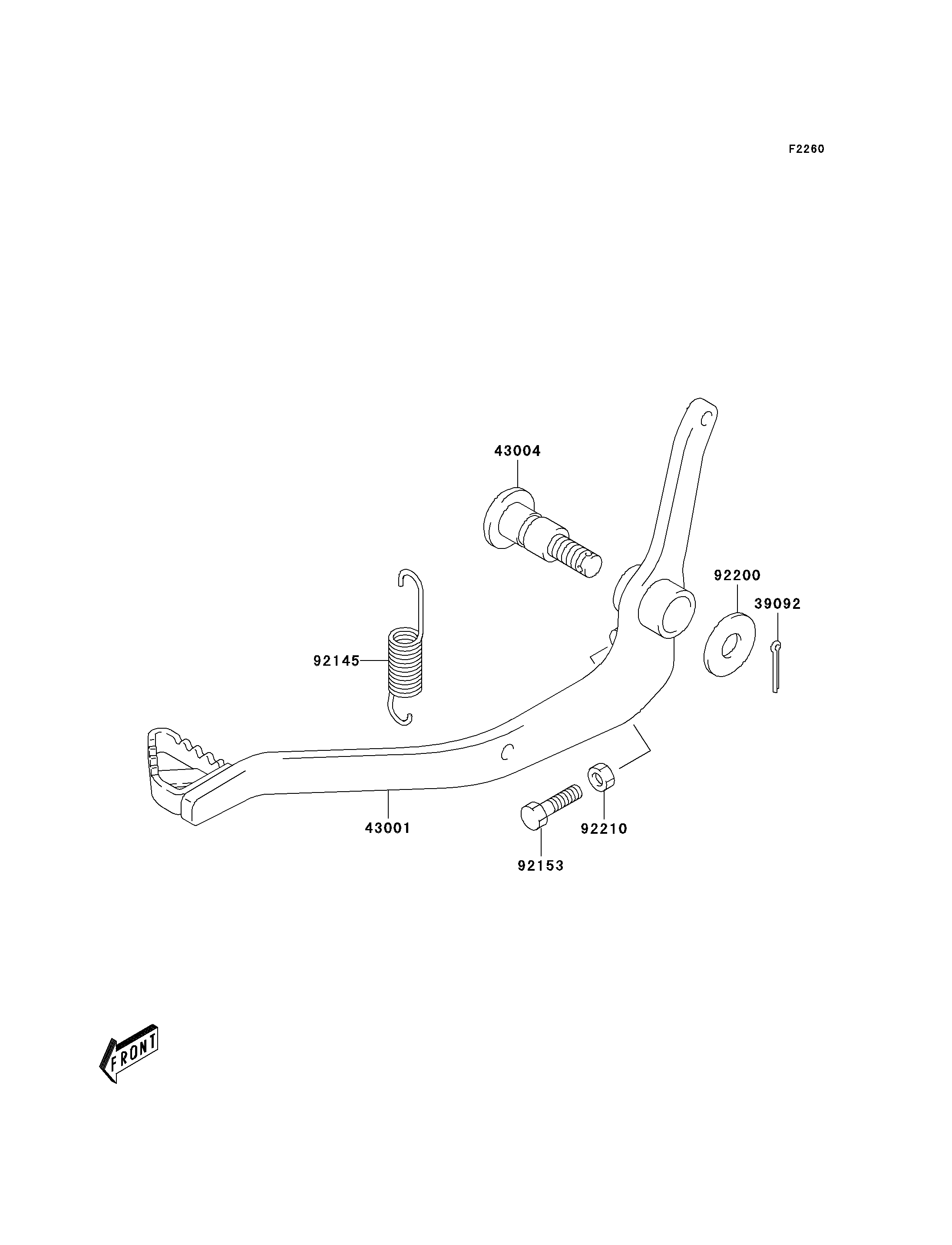

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-HAIR,COTTER 39092 39092-S005 1
LEVER-BRAKE 43001 43001-S001 1
SHAFT-BRAKE 43004 43004-S001 1
SPRING,BRAKE PEDAL RETURN 92145 92145-S048 1
BOLT 92153 92153-S182 1
WASHER 92200 92200-S067 1
NUT 92210 92210-S001 1
