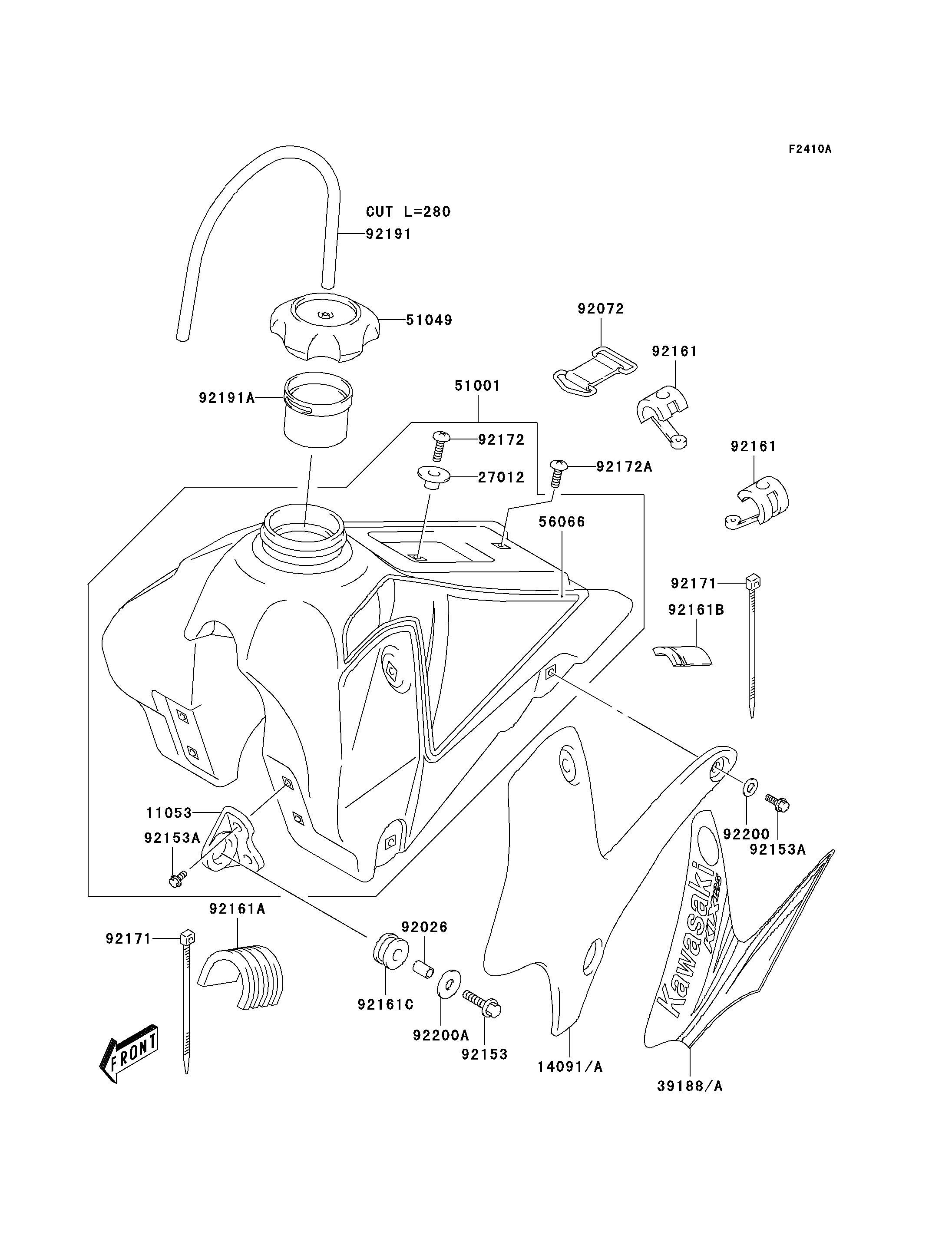

2004 KLX125L - Fuel Tank(B2)

DOWNLOAD PDF
SELECT A NEW PART
11053
14091
14091A
27012
39188
39188A
51001
51049
56066
92026
92072
92153
92153A
92153A
92161
92161
92161A
92161B
92161C
92171
92171
92172
92172A
92191
92191A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,FR 11053 11053-S001 2
COVER,FUEL TANK,RH,L.GREEN 14091 14091-S062-535 1
COVER,FUEL TANK,LH,L.GREEN 14091A 14091-S063-535 1
HOOK,SEAT FRONT 27012 27012-S003 1
TAPE,FUEL TANK COVER,RH 39188 39188-S006-553 1
TAPE,FUEL TANK COVER,LH 39188A 39188-S007-553 1
TANK-COMP-FUEL,BLACK 51001 51001-S018-539 1
CAP-TANK 51049 51049-S004 1
PATTERN,TAPE SET,FUEL TANK 56066 56066-S027-568 1
SPACER,FUEL TANK,FR 92026 92026-S049 2
BAND,FUEL TANK,RR 92072 92072-S004 1
BOLT 92153 92153-S003 2
BOLT 92153A 92153-S144 10
DAMPER,FUEL TANK 92161 92161-S062 2
DAMPER,FUEL TANK 92161A 92161-S063 1
DAMPER,FUEL TANK 92161B 92161-S064 1
DAMPER,FUEL TANK 92161C 92161-S065 2
CLAMP,FUEL TANK CUSHION 92171 92171-S056 2
SCREW 92172 92172-S019 1
SCREW 92172A 92172-S055 1
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
TUBE,FUEL TANK FILLER 92191A 92191-S029 1
WASHER 92200 92200-S078 6
WASHER 92200A 92200-S080 2
