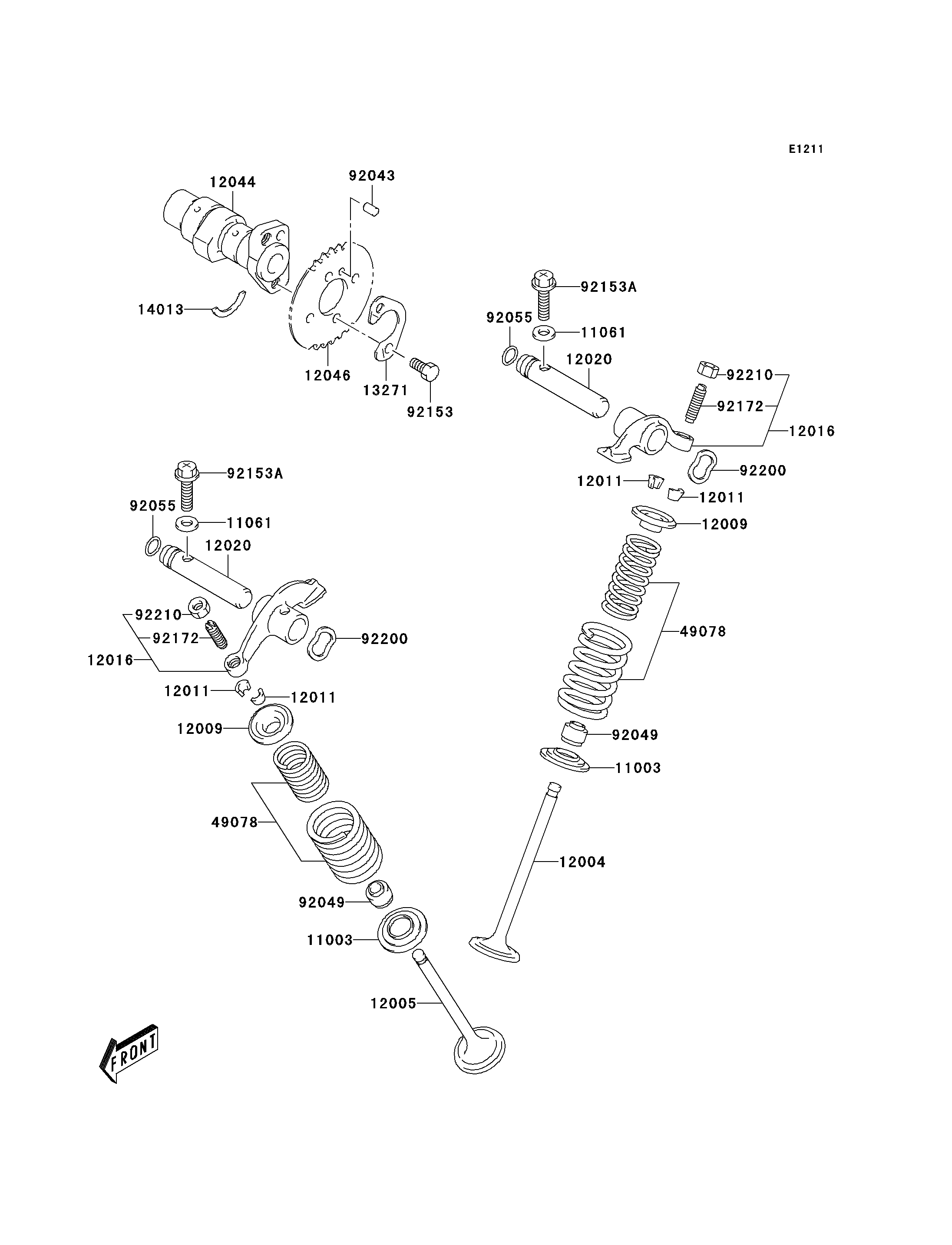

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11003
11003
11061
11061
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12020
12020
12044
12046
13271
14013
49078
49078
92043
92049
92049
92055
92055
92153
92153A
92153A
92172
92172
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-VALVE | 11003 | 11003-S002 | 2 | ||
| GASKET,5.8X13X1.2 | 11061 | 11061-S001 | 2 | ||
| VALVE-INTAKE | 12004 | 12004-S003 | 1 | ||
| VALVE-EXHAUST | 12005 | 12005-S003 | 1 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-S002 | 2 | ||
| COLLET | 12011 | 12011-S002 | 4 | ||
| ARM-ROCKER | 12016 | 12016-S005 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-S003 | 2 | ||
| CAMSHAFT-VALVE | 12044 | 12044-S002 | 1 | ||
| SPROCKET,CAMSHAFT | 12046 | 12046-S004 | 1 | ||
| PLATE | 13271 | 13271-S018 | 1 | ||
| RING-POSITION,CAMSHAFT | 14013 | 14013-S001 | 1 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-S002 | 2 | ||
| PIN,5X8 | 92043 | 92043-S008 | 1 | ||
| SEAL-OIL | 92049 | 92049-S021 | 2 | ||
| RING-O,D=1.9 | 92055 | 92055-S033 | 2 | ||
| BOLT | 92153 | 92153-S099 | 2 | ||
| BOLT | 92153A | 92153-S133 | 2 | ||
| SCREW | 92172 | 92172-S096 | 2 | ||
| WASHER | 92200 | 92200-S057 | 2 | ||
| NUT | 92210 | 92210-S049 | 2 |
| SEAT-VALVE | |
| REF # | 11003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,5.8X13X1.2 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-VALVE | |
| REF # | 12044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAMSHAFT | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-POSITION,CAMSHAFT | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,5X8 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,D=1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
