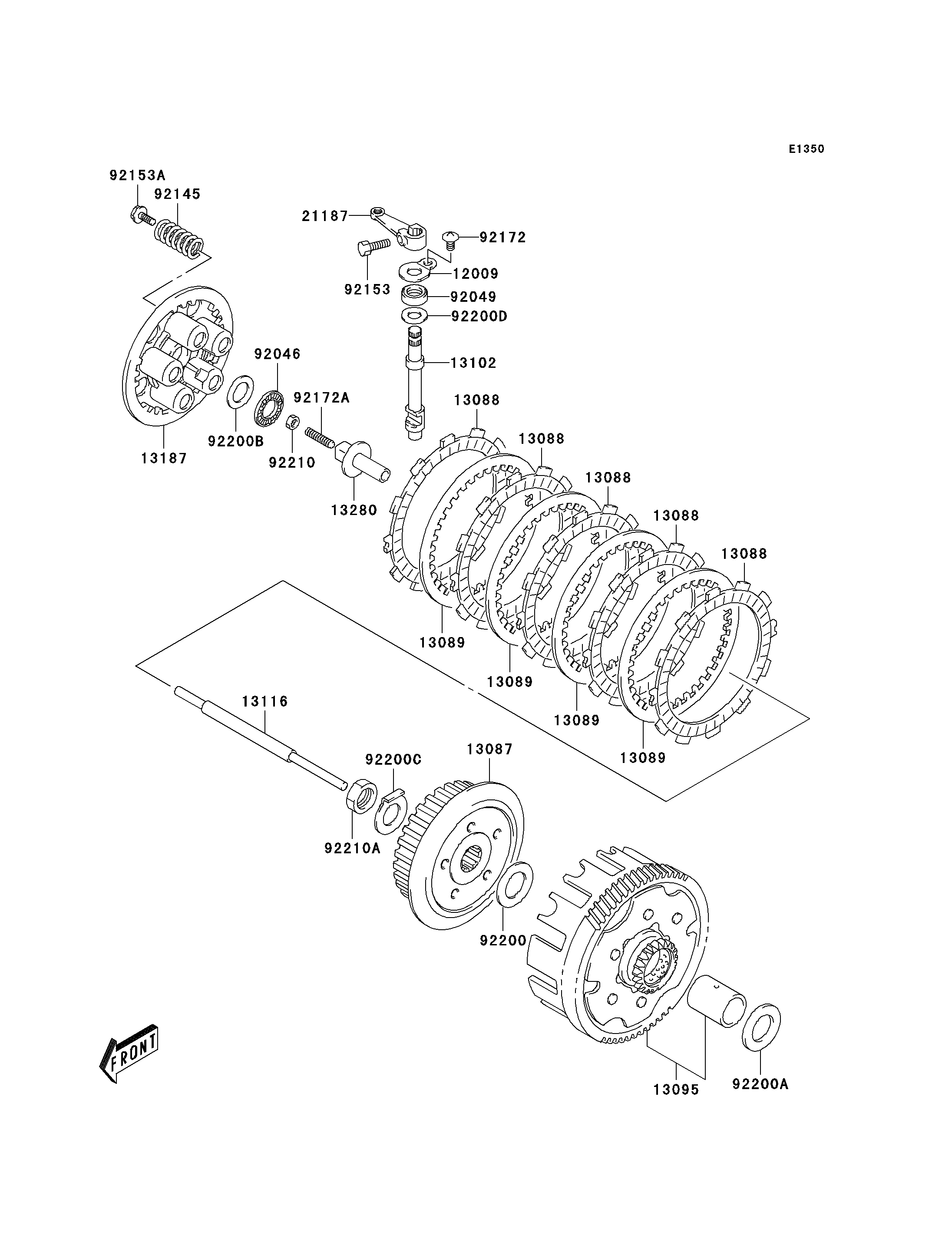

2006 KLX125L - Clutch

DOWNLOAD PDF
SELECT A NEW PART
12009
13087
13088
13088
13088
13088
13088
13089
13089
13089
13089
13095
13102
13116
13187
13280
21187
92046
92049
92145
92153
92153A
92172
92172A
92200
92200A
92200B
92200C
92200D
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER-VALVE SPRING 12009 12009-S003 1
HUB-CLUTCH 13087 13087-S001 1
PLATE-FRICTION 13088 13088-S001 5
PLATE-CLUTCH 13089 13089-S001 4
HOUSING-COMP-CLUTCH 13095 13095-S003 1
RELEASE-COMP-CLUTCH 13102 13102-S002 1
ROD-PUSH 13116 13116-S002 1
PLATE-CLUTCH OPERATING 13187 13187-S002 1
HOLDER,CLUTCH PUSH 13280 13280-S012 1
ARM-ASSY,CLUTCH RELEASE 21187 21187-S001 1
BEARING-NEEDLE,15X28X2 92046 92046-S006 1
SEAL-OIL,10X20X6 92049 92049-S018 1
SPRING 92145 92145-S041 5
BOLT 92153 92153-S126 1
BOLT,5X16 92153A 92153-S137 5
SCREW 92172 92172-S092 1
SCREW 92172A 92172-S093 1
WASHER 92200 92200-S025 1
WASHER 92200A 92200-S055 1
WASHER,15.5X28X1 92200B 92200-S056 1
WASHER 92200C 92200-S060 1
WASHER,10X20X1.0 92200D 92200-S061 1
NUT,6X3.6 92210 92210-S047 1
NUT 92210A 92210-S157 1
