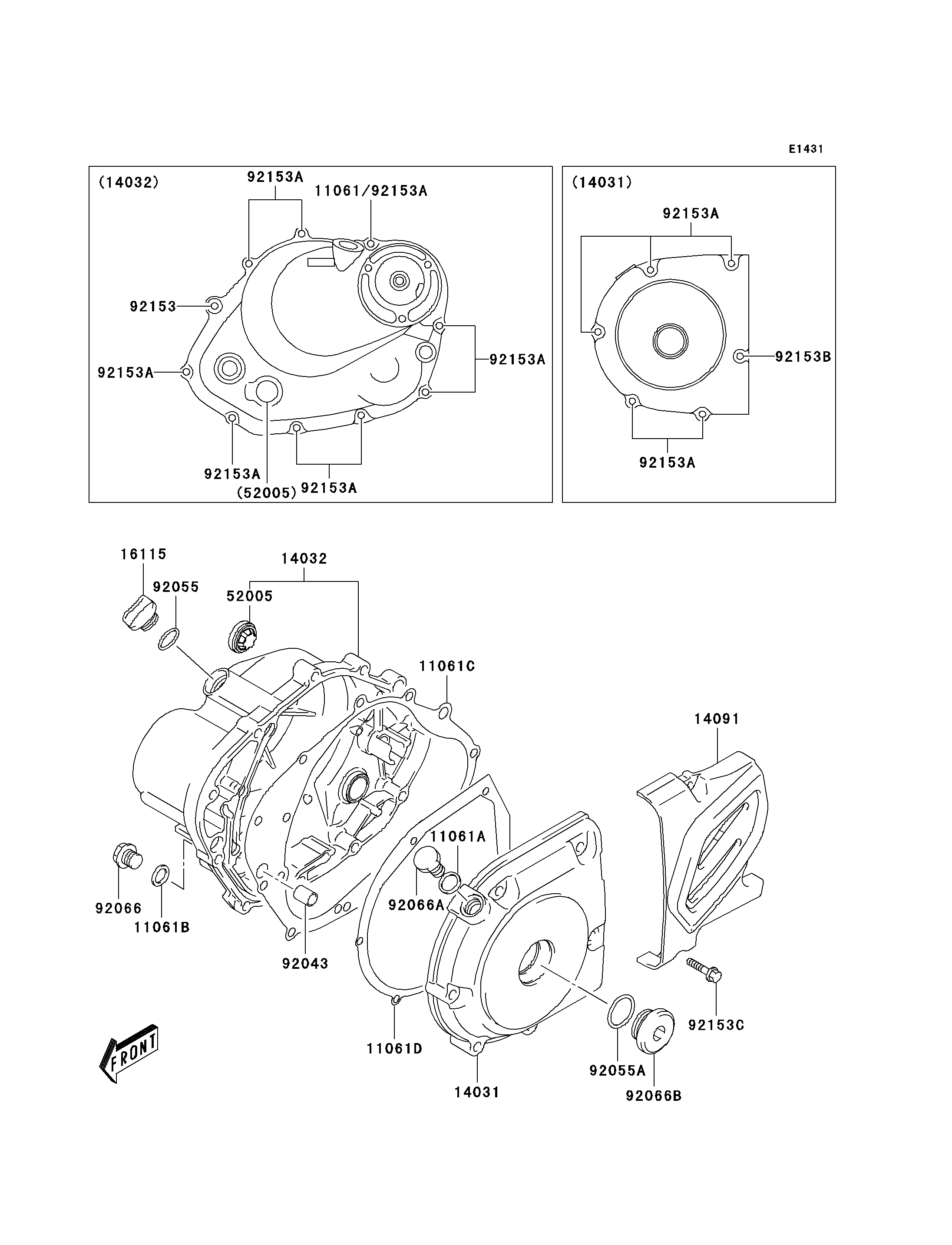

Parts Diagrams |
11061
11061A
11061B
11061C
11061D
14031
14032
14091
16115
52005
92043
92055
92055A
92066
92066A
92066B
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,5.8X13X1.2 | 11061 | 11061-S001 | 1 | ||
| GASKET,12X16X2 | 11061A | 11061-S005 | 1 | ||
| GASKET,13.8X18.8X0.4 | 11061B | 11061-S006 | 1 | ||
| GASKET,CLUTCH COVER | 11061C | 11061-S036 | 1 | ||
| GASKET,MAGNETO COVER | 11061D | 11061-S037 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-S004 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-S005 | 1 | ||
| COVER,ENGINE SPROCKET | 14091 | 14091-S059 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-S002 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-S004 | 1 | ||
| PIN | 92043 | 92043-S003 | 2 | ||
| RING-O,D=3.1 | 92055 | 92055-S006 | 1 | ||
| RING-O,D=3.1 | 92055A | 92055-S035 | 1 | ||
| PLUG | 92066 | 92066-S002 | 1 | ||
| PLUG | 92066A | 92066-S015 | 1 | ||
| PLUG,20X10 | 92066B | 92066-S018 | 1 | ||
| BOLT | 92153 | 92153-S005 | 1 | ||
| BOLT | 92153A | 92153-S062 | 14 | ||
| BOLT | 92153B | 92153-S128 | 1 | ||
| BOLT | 92153C | 92153-S173 | 2 |
