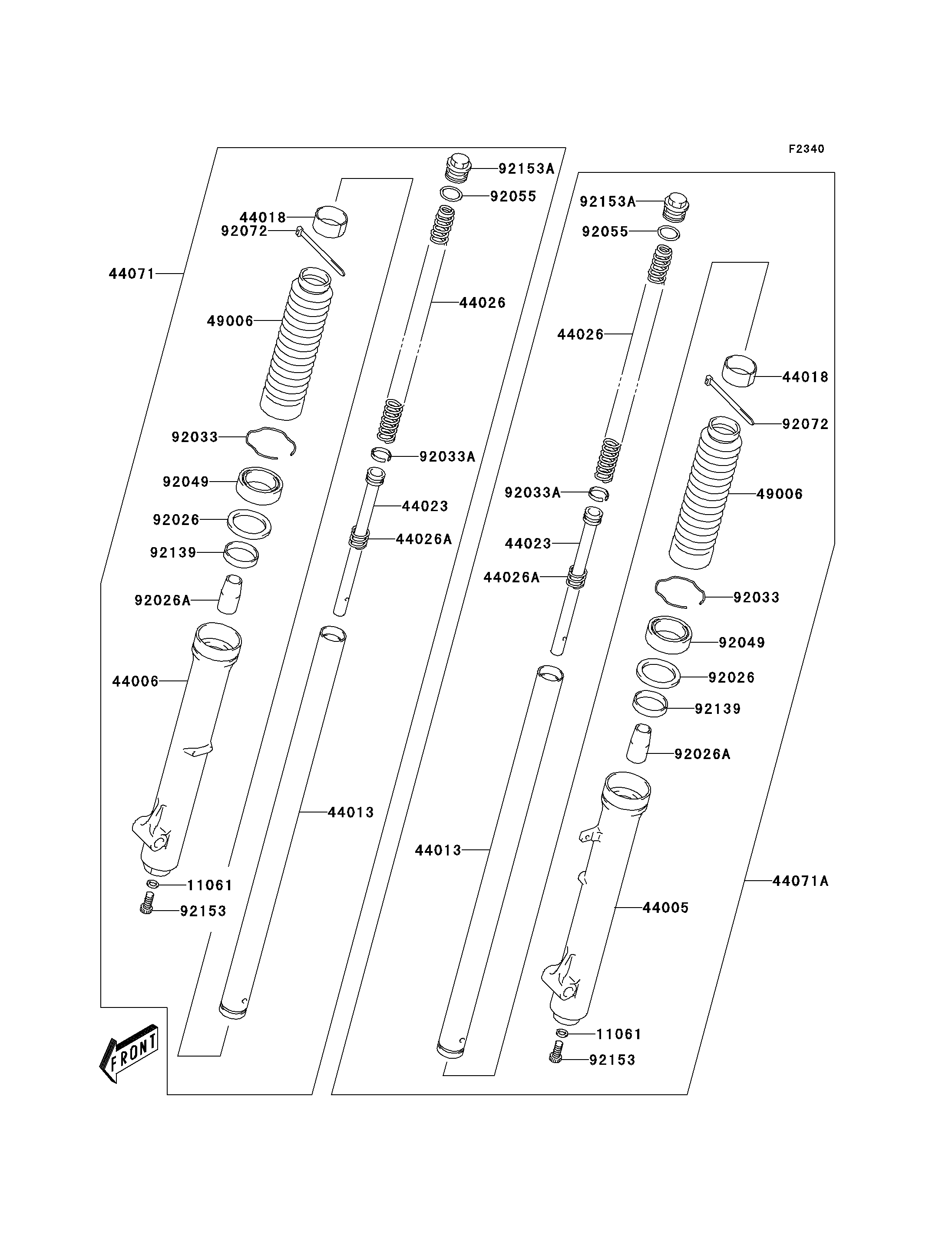

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-S019 2
PIPE-LEFT FORK OUTER 44005 44005-S005 1
PIPE-RIGHT FORK OUTER 44006 44006-S005 1
PIPE-FORK INNER 44013 44013-S003 2
PISTON-FORK 44018 44018-S002 2
CYLINDER-SET-FORK 44023 44023-S002 2
SPRING-FRONT FORK 44026 44026-S005 2
SPRING-FRONT FORK 44026A 44026-S006 2
DAMPER-ASSY,FRONT FORK,RH 44071 44071-S003 1
DAMPER-ASSY,FRONT FORK,LH 44071A 44071-S004 1
BOOT 49006 49006-S011 2
SPACER 92026 92026-S079 2
SPACER 92026A 92026-S080 2
RING-SNAP 92033 92033-S035 2
RING-SNAP 92033A 92033-S036 2
SEAL-OIL 92049 92049-S047 2
RING-O 92055 92055-S051 2
BAND 92072 92072-S005 2
BUSHING 92139 92139-S021 2
BOLT 92153 92153-S241 2
BOLT 92153A 92153-S242 2
