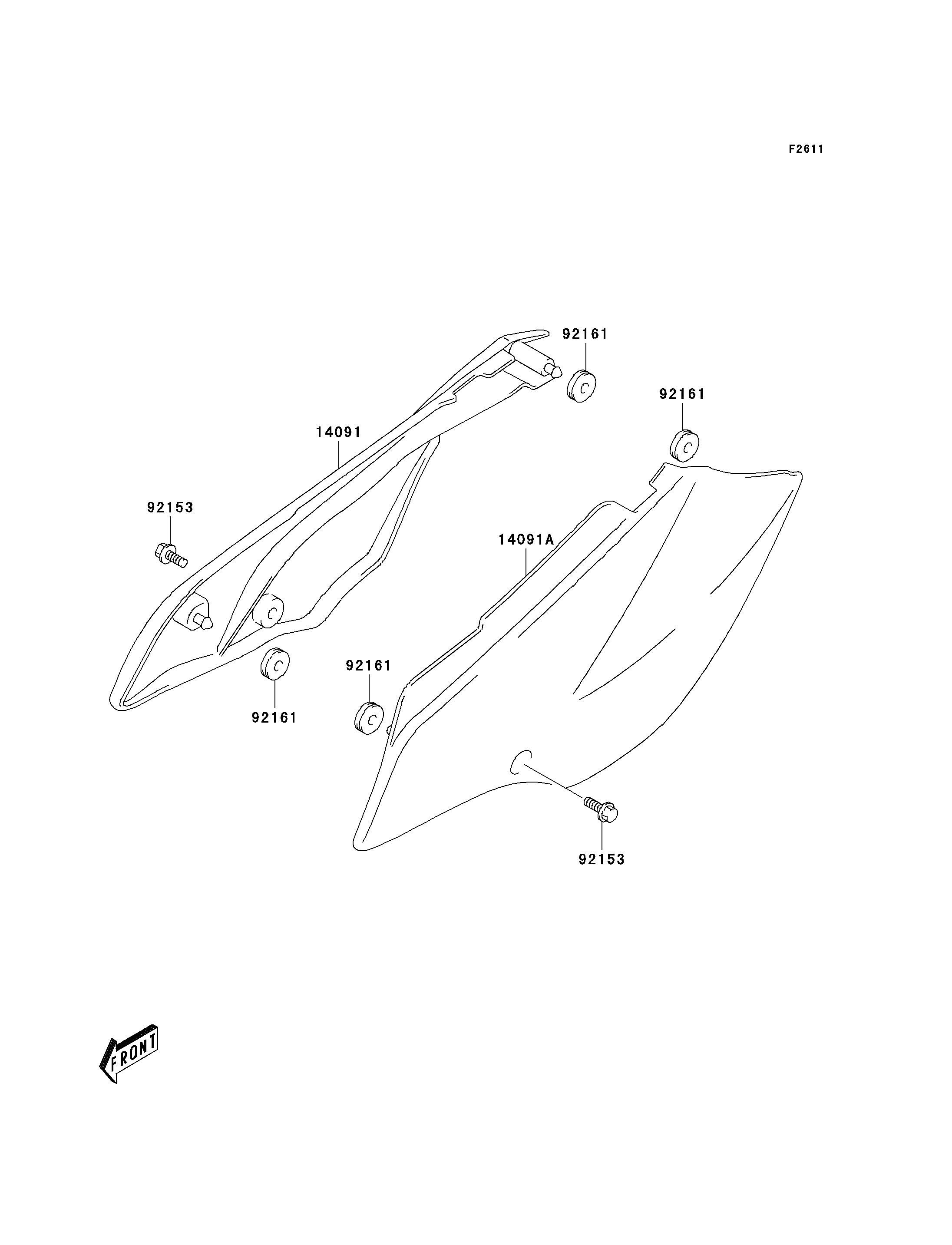

14091
14091A
92153
92153
92161
92161
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FRAME,RH,S.WHITE 14091 14091-S060-533 1
COVER,FRAME,LH,S.WHITE 14091A 14091-S061-533 1
BOLT 92153 92153-S161 2
DAMPER 92161 92161-S059 4
