Parts Diagrams |

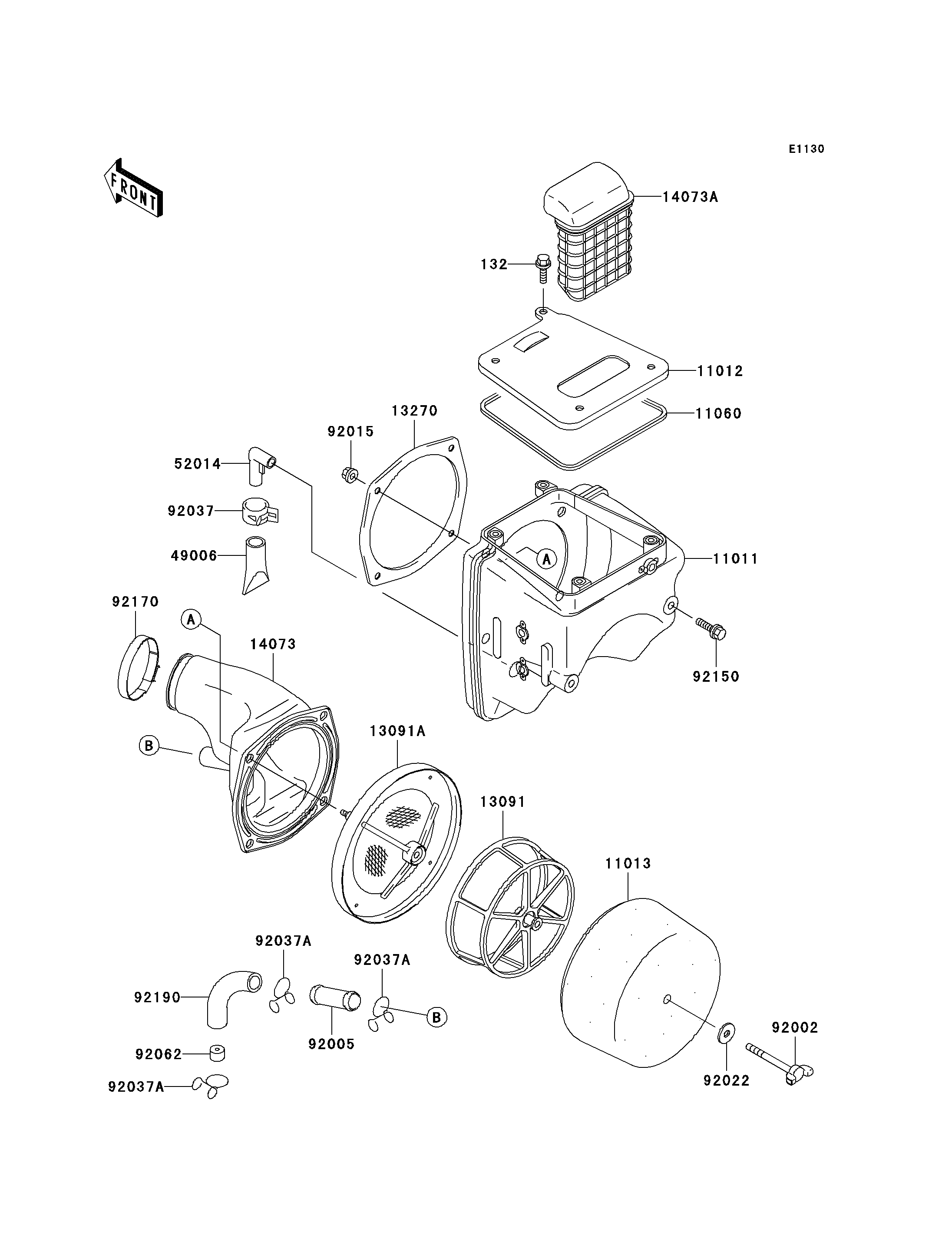

132
11011
11012
11013
11060
13091
13091A
13270
14073
14073A
49006
52014
92002
92005
92015
92022
92037
92037A
92037A
92037A
92062
92150
92170
92190
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0612 | 4 | ||
CASE-AIR FILTER | 11011 | 11011-1399 | 1 | ||
CAP,AIR FILTER | 11012 | 11012-1834 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1196 | 1 | ||
GASKET,AIR FILTER CASE | 11060 | 11060-1323 | 1 | ||
HOLDER,ELEMENT | 13091 | 13091-1454 | 1 | ||
HOLDER,ELEMENT | 13091A | 13091-1835 | 1 | ||
PLATE,DUCT FITTING | 13270 | 13270-1284 | 1 | ||
DUCT,AIR FILTER | 14073 | 14073-1561 | 1 | ||
DUCT,AIR INLET | 14073A | 14073-1577 | 1 | ||
BOOT | 49006 | 49006-1211 | 1 | ||
ELBOW | 52014 | 52014-1083 | 1 | ||
BOLT,WING | 92002 | 92002-1719 | 1 | ||
FITTING | 92005 | 92005-1236 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1656 | 4 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-125 | 1 | ||
CLAMP | 92037 | 92037-1861 | 1 | ||
CLAMP,TUBE | 92037A | 92037-213 | 3 | ||
NOZZLE | 92062 | 92062-1076 | 1 | ||
BOLT,6X20 | 92150 | 92150-1339 | 3 | ||
CLAMP | 92170 | 92170-1448 | 1 | ||
TUBE,BREATHER | 92190 | 92190-1397 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CASE-AIR FILTER | |
REF # | 11011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,AIR FILTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,AIR FILTER CASE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,DUCT FITTING | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,AIR FILTER | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,AIR INLET | |
REF # | 14073A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,WING | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
