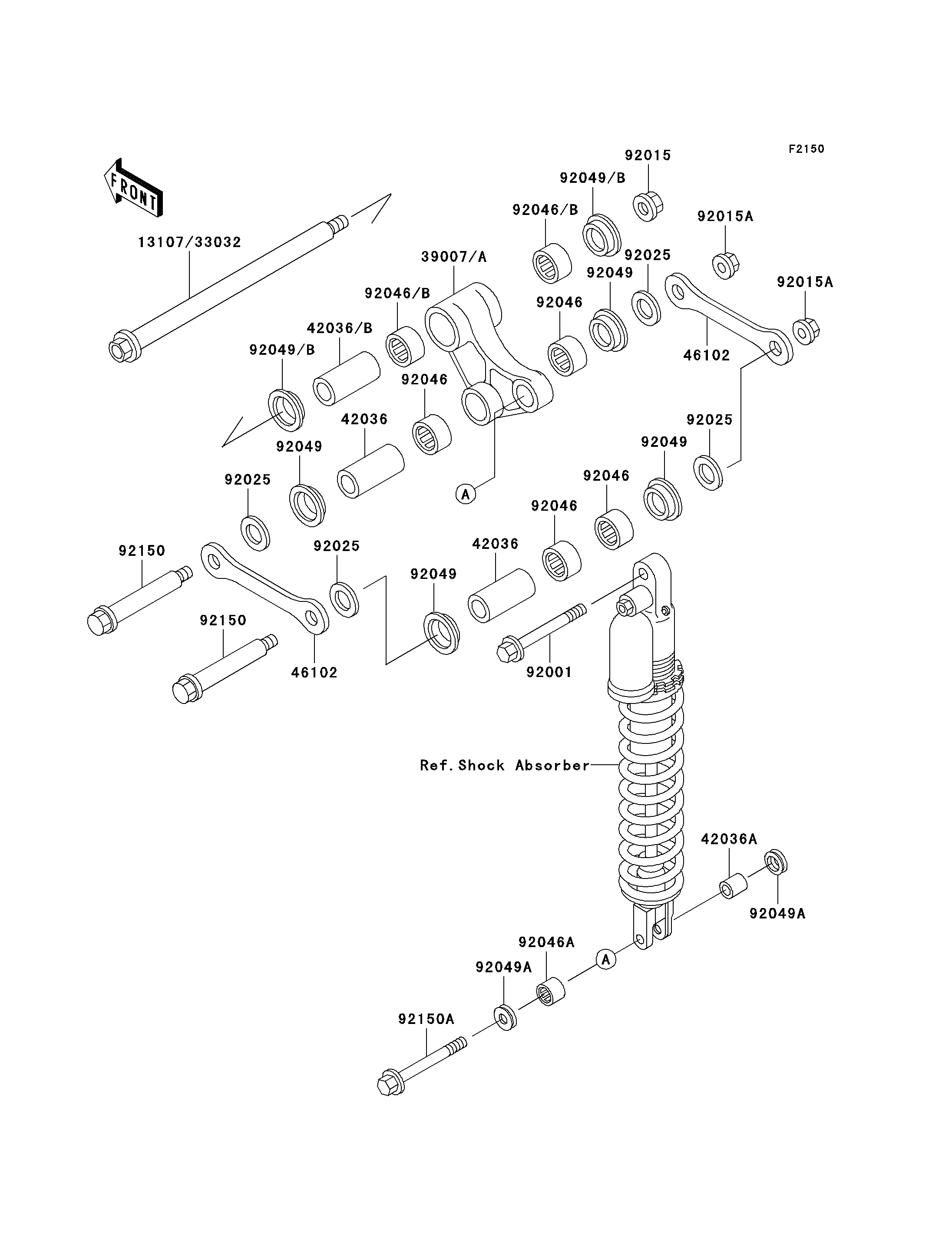

Parts Diagrams |
33032
39007
42036
42036
42036
42036A
46102
46102
92001
92015
92015A
92015A
92025
92025
92025
92025
92046
92046
92046
92046
92046
92046
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-SWING ARM | 33032 | 33032-1137 | 1 | ||
| ARM-SUSP,UNI TRAK | 39007 | 39007-1218 | 1 | ||
| SLEEVE,15X22X57 | 42036 | 42036-1245 | 3 | ||
| SLEEVE,10X16X19 | 42036A | 42036-1248 | 1 | ||
| ROD,SUSPENSION | 46102 | 46102-1350 | 2 | ||
| BOLT,10X44 | 92001 | 92001-1499 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| NUT,FLANGED,12MM | 92015A | 92015-1433 | 2 | ||
| SHIM,15.3X27.5X0.6 | 92025 | 92025-1135 | 4 | ||
| BEARING-NEEDLE,F-2220 | 92046 | 92046-1162 | 6 | ||
| BEARING-NEEDLE,16BM2212 | 92046A | 92046-1192 | 1 | ||
| SEAL-OIL,MHA22 28 5.7F | 92049 | 92049-1254 | 6 | ||
| SEAL-OIL | 92049A | 92049-1330 | 2 | ||
| BOLT,ROD,12X93 | 92150 | 92150-1337 | 2 | ||
| BOLT,FLANGED,10X40 | 92150A | 92150-1711 | 1 |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,UNI TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15X22X57 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,10X16X19 | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SUSPENSION | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X44 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHIM,15.3X27.5X0.6 | |
| REF # | 92025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,F-2220 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,16BM2212 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA22 28 5.7F | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,ROD,12X93 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X40 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
