Parts Diagrams |

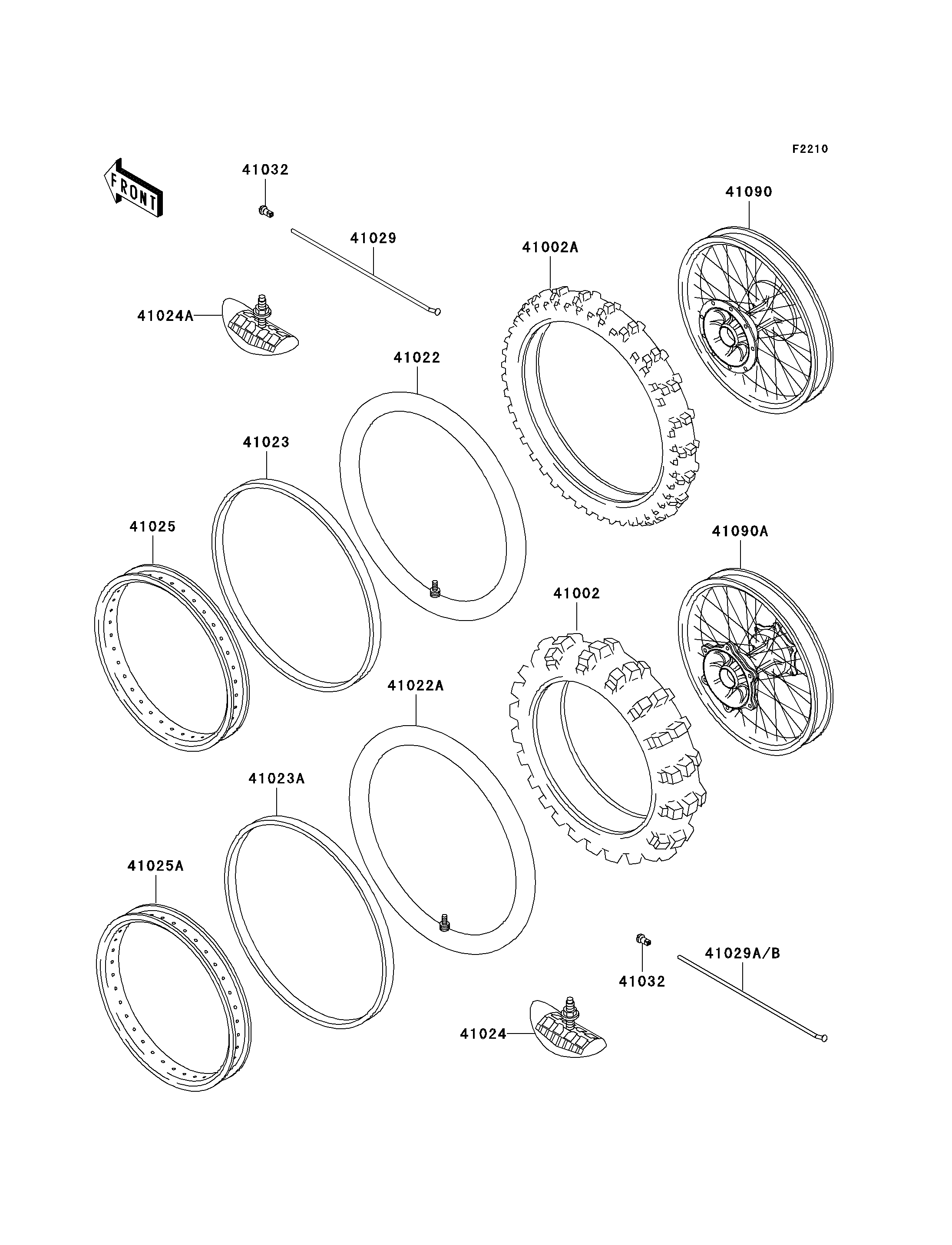

41002
41002A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41029B
41032
41032
41090
41090A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,RR,100/100-18 59M,K695(D) | 41002 | 41002-1753 | 1 | ||
| TIRE,FR,80/100-21 51M,K490J(D) | 41002A | 41002-1803 | 1 | ||
| TUBE-TIRE,80/100-21(D) | 41022 | 41022-1118 | 1 | ||
| TUBE-TIRE,100/100-18(D) | 41022A | 41022-1119 | 1 | ||
| BAND-RIM,80/100-21(D) | 41023 | 41023-1069 | 1 | ||
| BAND-RIM,100/100-18(D) | 41023A | 41023-1070 | 1 | ||
| STOPPER-RIM,2.15-M(DUNLOP) | 41024 | 41024-009 | 1 | ||
| STOPPER-RIM,1.60-M(DUNLOP) | 41024A | 41024-010 | 1 | ||
| RIM,FR,1.60X21 | 41025 | 41025-1257 | 1 | ||
| RIM,RR,2.15X18 | 41025A | 41025-1275 | 1 | ||
| SPOKE-INNER,FR,228MMX165D | 41029 | 41029-1206 | 36 | ||
| SPOKE-INNER,RR,RH,193MMX165D | 41029A | 41029-1217 | 18 | ||
| SPOKE-INNER,RR,LH,189MMX160D | 41029B | 41029-1223 | 18 | ||
| NIPPLE-SPOKE | 41032 | 41032-1061 | 72 | ||
| WHEEL-SUB ASSY,FR | 41090 | 41090-1090 | 1 | (OPTION) | |
| WHEEL-SUB ASSY,RR | 41090A | 41090-1095 | 1 | (OPTION) |
