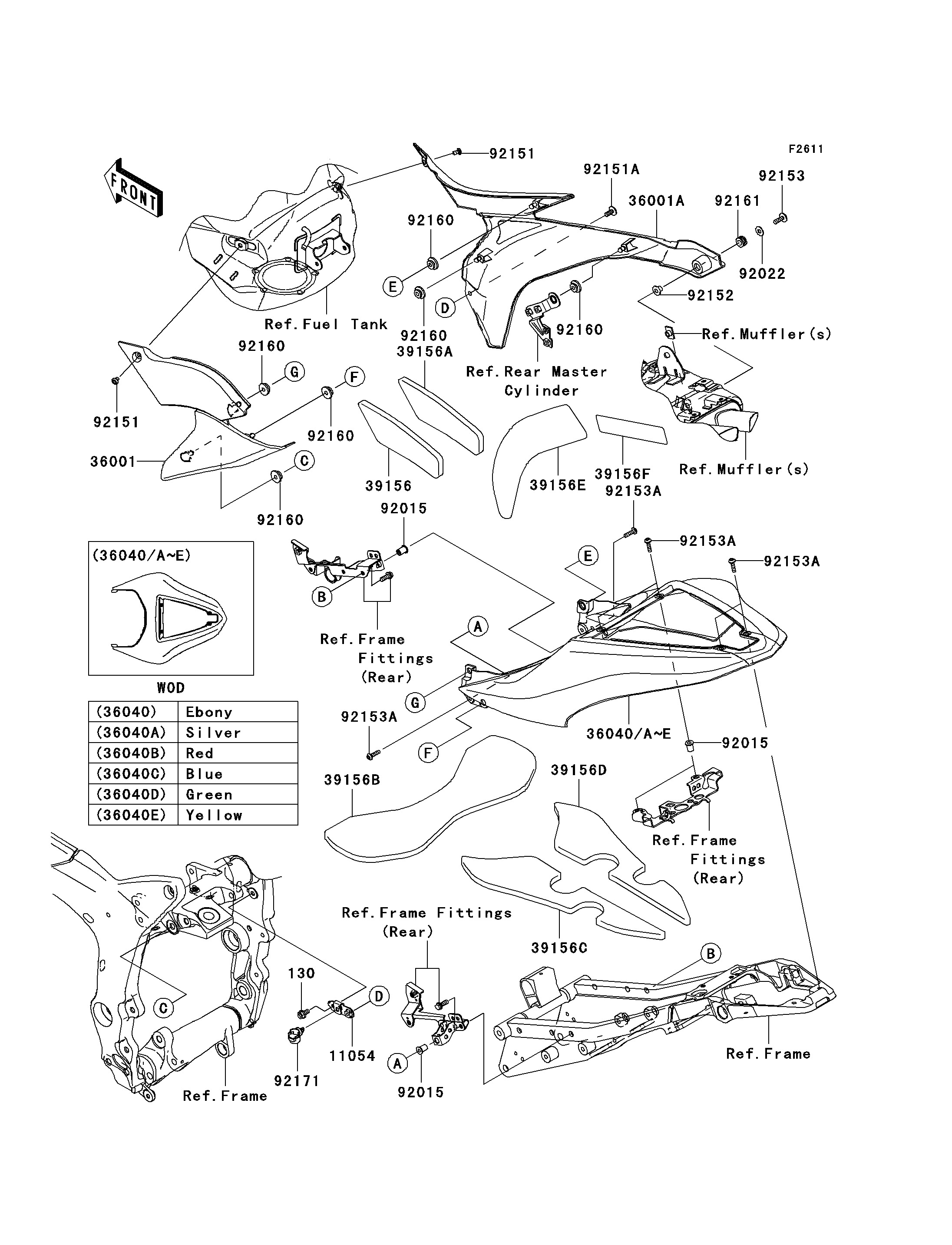

2008 Ninja® ZX™-6R - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
130
11054
36001
36001A
36040C
36040D
36040E
39156
39156A
39156B
39156C
39156D
39156E
39156F
92015
92015
92015
92022
92151
92151
92151A
92152
92153
92153A
92153A
92153A
92153A
92160
92160
92160
92160
92160
92160
92161
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 1
BRACKET,SIDE COVER 11054 11054-1439 1
COVER-SIDE,LH 36001 36001-0103 1
COVER-SIDE,RH 36001A 36001-0121 1
COVER-TAIL,C.P.BLUE 36040C 36040-0054-723 1
COVER-TAIL,L.GREEN 36040D 36040-0054-777 1
COVER-TAIL,V.YELLOW 36040E 36040-0054-789 1
PAD,SIDE COVER,LH,UPP 39156 39156-0236 1
PAD,SIDE COVER,RH,UPP 39156A 39156-0237 1
PAD,TAIL COVER,CNT 39156B 39156-0243 1
PAD,TAIL COVER,LH 39156C 39156-0244 1
PAD,TAIL COVER,RH 39156D 39156-0245 1
PAD,SIDE COVER,RH,LWR 39156E 39156-0260 1
PAD,SIDE COVER,RH,RR 39156F 39156-0261 1
NUT,WELL,5MM 92015 92015-1757 4
WASHER,6.5X16X1.0 92022 92022-1093 1
BOLT,SOCKET,6X12 92151 92151-1219 2
BOLT,SOCKET,6X14 92151A 92151-1654 1
COLLAR 92152 92152-0237 1
BOLT,6X18 92153 92153-0816 1
BOLT,SOCKET,5X20 92153A 92153-0873 6
DAMPER 92160 92160-1613 6
DAMPER 92161 92161-0204 1
CLAMP,DIA=13 92171 92171-1415 1
