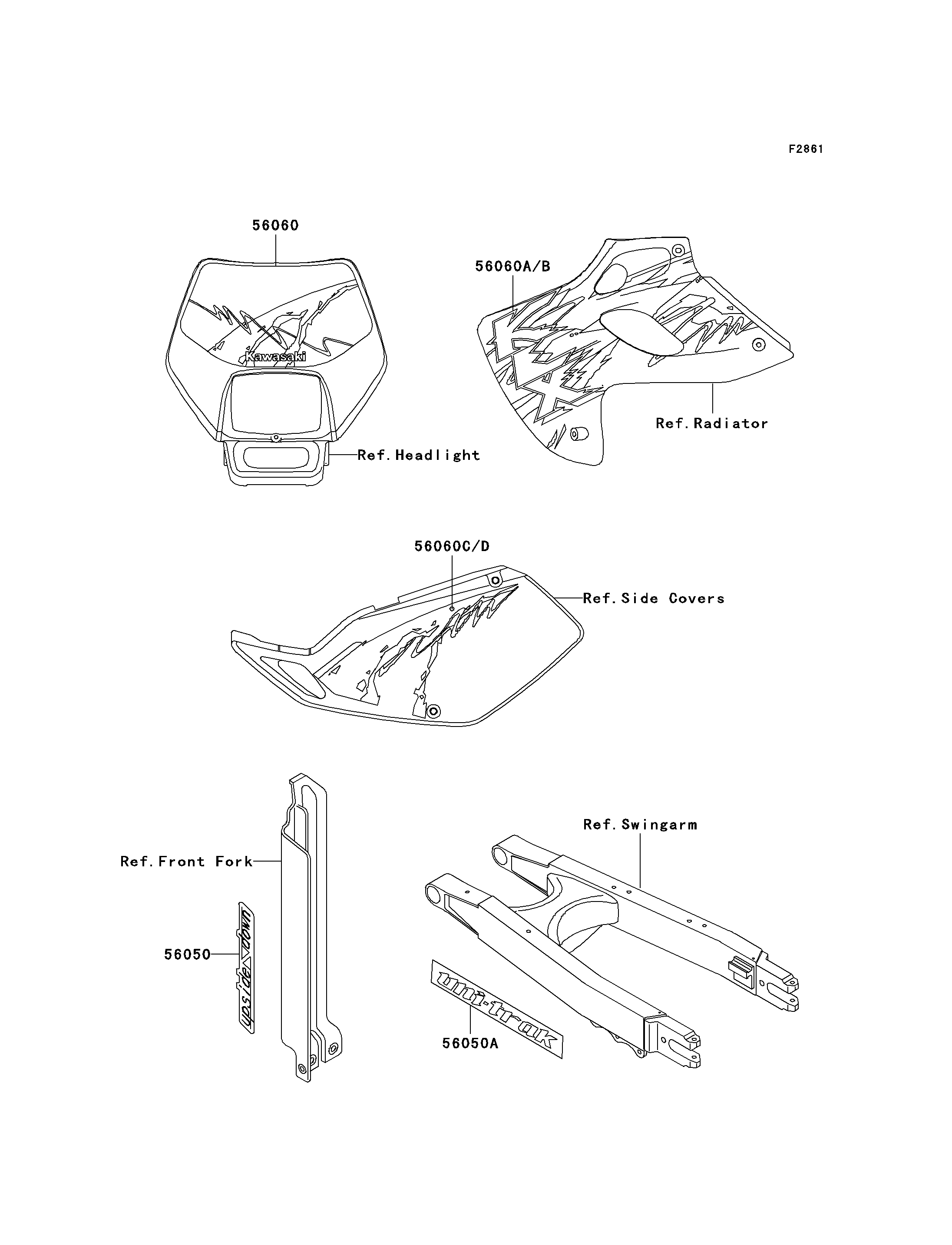

56050
56050A
56060
56060A
56060B
56060C
56060D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,UP SIDE DOWN 56050 56050-1835 2
MARK,SWING ARM,UNI-TRAK 56050A 56050-1916 2
PATTERN,HEAD LAMP COVER 56060 56060-1517 1
PATTERN,SHROUD,LH 56060A 56060-1543 1
PATTERN,SHROUD,RH 56060B 56060-1544 1
PATTERN,SIDE COVER,LH 56060C 56060-1545 1
PATTERN,SIDE COVER,RH 56060D 56060-1546 1
